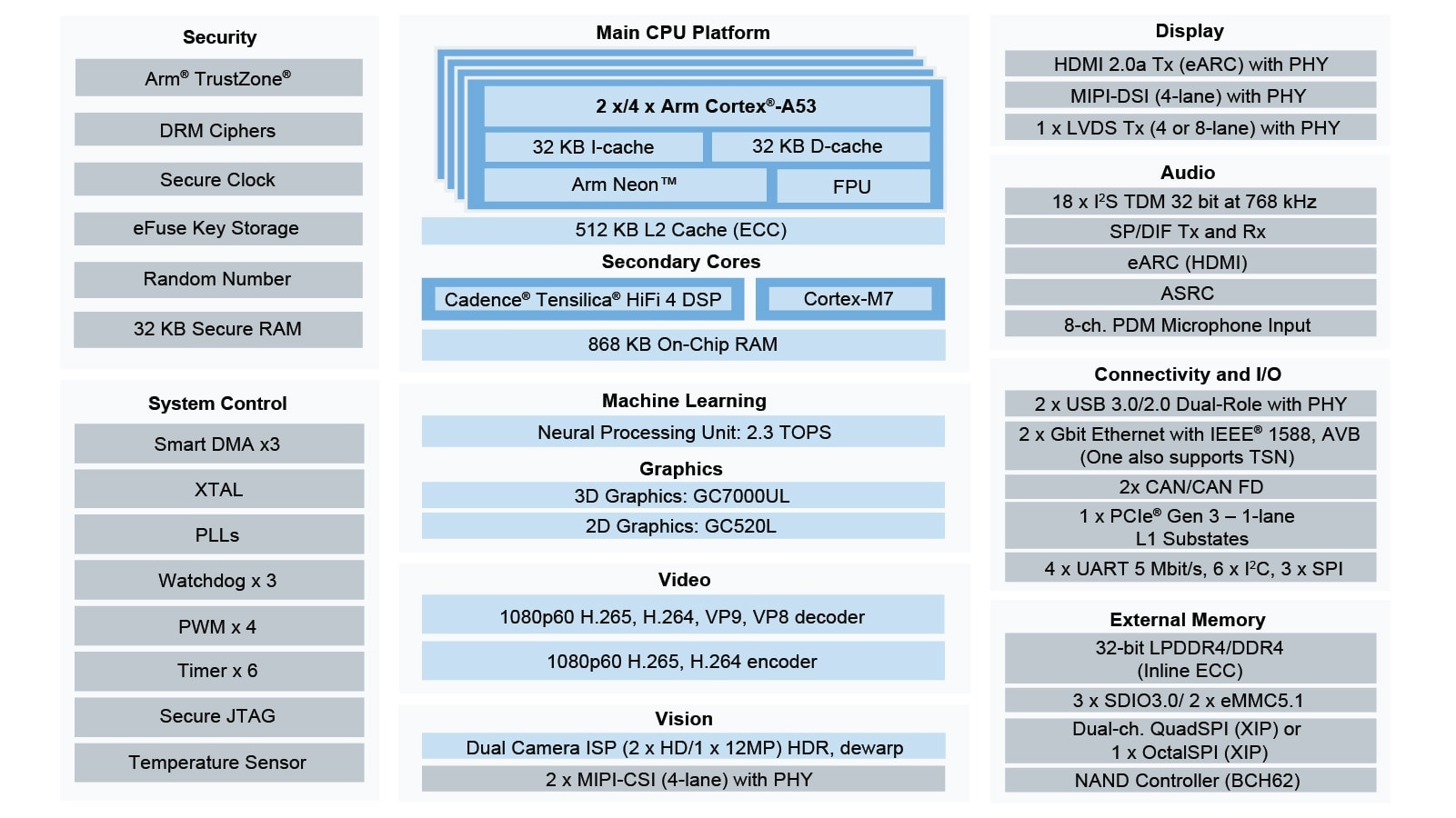

i.MX 8M Plus_Cortex-A53/M7

部件展开描述	内核类型	L2 Cache (Max) (KB)	运行频率[最高]（MHz）	Neural Processing Unit	支持外部存储器	GPU 2D / GPU 3D	HW Video Encoder / Decoder	Camera Interfaces	PCIe	CAN	SPI	I²C	UART	以太网类型	Audio Specific Modules	安全	USB Controllers
MIMX8ML2CVNKZAB 数据手册	1 x Arm Cortex-M7, 2 x Arm Cortex-A53	512	800, 1600	2.3 TOPS	DDR4 SDRAM, ECC, FlexSPI, LPDDR4 DRAM, NAND FLASH, NOR FLASH, SD3.0/eMMC5.1	Vivante GC520L, Vivante GC7000UL	HD1080p60 H.264, HD1080p60 H.265, VP8 video codec, VP9 video codec	2 x MIPI-CSI	1 x PCIe 3.0	2	3	6	4	2 x Gbps + IEEE 1588 + AVB + (1 x TSN)	ASRC, SAI/I2S, eARC	AES-D, CA, CRC, FAC, HAB, SJC, SNVS, TRNG	2
MIMX8ML2DVNLZAB 数据手册	1 x Arm Cortex-M7, 2 x Arm Cortex-A53	512	800, 1800	2.3 TOPS	DDR4 SDRAM, ECC, FlexSPI, LPDDR4 DRAM, NAND FLASH, NOR FLASH, SD3.0/eMMC5.1	Vivante GC520L, Vivante GC7000UL	HD1080p60 H.264, HD1080p60 H.265, VP8 video codec, VP9 video codec	2 x MIPI-CSI	1 x PCIe 3.0	2	3	6	4	2 x Gbps + IEEE 1588 + AVB + (1 x TSN)	ASRC, SAI/I2S, eARC	AES-D, CA, CRC, FAC, HAB, SJC, SNVS, TRNG	2
MIMX8ML3CVNKZAB 数据手册	1 x Arm Cortex-M7, 2 x Arm Cortex-A53	512	800, 1600	2.3 TOPS	DDR4 SDRAM, ECC, FlexSPI, LPDDR4 DRAM, NAND FLASH, NOR FLASH, SD3.0/eMMC5.1	Vivante GC520L, Vivante GC7000UL	HD1080p60 H.264, HD1080p60 H.265, VP8 video codec, VP9 video codec	2 x ISP, 2 x MIPI-CSI	1 x PCIe 3.0	2	3	6	4	2 x Gbps + IEEE 1588 + AVB + (1 x TSN)	ASRC, HiFi 4 DSP, SAI/I2S, eARC	AES-D, CA, CRC, FAC, HAB, SJC, SNVS, TRNG	2
MIMX8ML3DVNLZAB 数据手册	1 x Arm Cortex-M7, 2 x Arm Cortex-A53	512	800, 1800	2.3 TOPS	DDR4 SDRAM, ECC, FlexSPI, LPDDR4 DRAM, NAND FLASH, NOR FLASH, SD3.0/eMMC5.1	Vivante GC520L, Vivante GC7000UL	HD1080p60 H.264, HD1080p60 H.265, VP8 video codec, VP9 video codec	2 x ISP, 2 x MIPI-CSI	1 x PCIe 3.0	2	3	6	4	2 x Gbps + IEEE 1588 + AVB + (1 x TSN)	ASRC, HiFi 4 DSP, SAI/I2S, eARC	AES-D, CA, CRC, FAC, HAB, SJC, SNVS, TRNG	2
MIMX8ML4CVNKZAB 数据手册	1 x Arm Cortex-M7, 4 x Arm Cortex-A53	512	800, 1600	—	DDR4 SDRAM, ECC, FlexSPI, LPDDR4 DRAM, NAND FLASH, NOR FLASH, SD3.0/eMMC5.1	Vivante GC520L, Vivante GC7000UL	—	2 x MIPI-CSI	1 x PCIe 3.0	2	3	6	4	2 x Gbps + IEEE 1588 + AVB + (1 x TSN)	ASRC, SAI/I2S, eARC	AES-D, CA, CRC, FAC, HAB, SJC, SNVS, TRNG	2
MIMX8ML4DVNLZAB 数据手册	1 x Arm Cortex-M7, 4 x Arm Cortex-A53	512	800, 1800	—	DDR4 SDRAM, ECC, FlexSPI, LPDDR4 DRAM, NAND FLASH, NOR FLASH, SD3.0/eMMC5.1	Vivante GC520L, Vivante GC7000UL	—	2 x MIPI-CSI	1 x PCIe 3.0	2	3	6	4	2 x Gbps + IEEE 1588 + AVB + (1 x TSN)	ASRC, SAI/I2S, eARC	AES-D, CA, CRC, FAC, HAB, SJC, SNVS, TRNG	2
MIMX8ML5CVNKZAB 数据手册	1 x Arm Cortex-M7, 4 x Arm Cortex-A53	512	800, 1600	2.3 TOPS	DDR4 SDRAM, ECC, FlexSPI, LPDDR4 DRAM, NAND FLASH, NOR FLASH, SD3.0/eMMC5.1	Vivante GC520L, Vivante GC7000UL	HD1080p60 H.264, HD1080p60 H.265, VP8 video codec, VP9 video codec	2 x MIPI-CSI	1 x PCIe 3.0	2	3	6	4	2 x Gbps + IEEE 1588 + AVB + (1 x TSN)	ASRC, SAI/I2S, eARC	AES-D, CA, CRC, FAC, HAB, SJC, SNVS, TRNG	2
MIMX8ML5DVNLZAB 数据手册	1 x Arm Cortex-M7, 4 x Arm Cortex-A53	512	800, 1800	2.3 TOPS	DDR4 SDRAM, ECC, FlexSPI, LPDDR4 DRAM, NAND FLASH, NOR FLASH, SD3.0/eMMC5.1	Vivante GC520L, Vivante GC7000UL	HD1080p60 H.264, HD1080p60 H.265, VP8 video codec, VP9 video codec	2 x MIPI-CSI	1 x PCIe 3.0	2	3	6	4	2 x Gbps + IEEE 1588 + AVB + (1 x TSN)	ASRC, SAI/I2S, eARC	AES-D, CA, CRC, FAC, HAB, SJC, SNVS, TRNG	2
MIMX8ML6CVNKZAB 数据手册	1 x Arm Cortex-M7, 4 x Arm Cortex-A53	512	800, 1600	—	DDR4 SDRAM, ECC, FlexSPI, LPDDR4 DRAM, NAND FLASH, NOR FLASH, SD3.0/eMMC5.1	Vivante GC520L, Vivante GC7000UL	HD1080p60 H.264, HD1080p60 H.265, VP8 video codec, VP9 video codec	2 x ISP, 2 x MIPI-CSI	1 x PCIe 3.0	2	3	6	4	2 x Gbps + IEEE 1588 + AVB + (1 x TSN)	ASRC, SAI/I2S, eARC	AES-D, CA, CRC, FAC, HAB, SJC, SNVS, TRNG	2
MIMX8ML6DVNLZAB 数据手册	1 x Arm Cortex-M7, 4 x Arm Cortex-A53	512	800, 1800	—	DDR4 SDRAM, ECC, FlexSPI, LPDDR4 DRAM, NAND FLASH, NOR FLASH, SD3.0/eMMC5.1	Vivante GC520L, Vivante GC7000UL	HD1080p60 H.264, HD1080p60 H.265, VP8 video codec, VP9 video codec	2 x ISP, 2 x MIPI-CSI	1 x PCIe 3.0	2	3	6	4	2 x Gbps + IEEE 1588 + AVB + (1 x TSN)	ASRC, SAI/I2S, eARC	AES-D, CA, CRC, FAC, HAB, SJC, SNVS, TRNG	2
