Maivin AI Vision Starter Kit

MAVK-SMART-8MPLUS-CAMERA 试生产
  • 本页介绍的产品处于样品阶段。此处的产品技术规格和信息如有变更，恕不另行通知。如需了解更多信息和样品供货情况，请联系恩智浦 支持服务或恩智浦当地销售人员。

滚动图片以放大

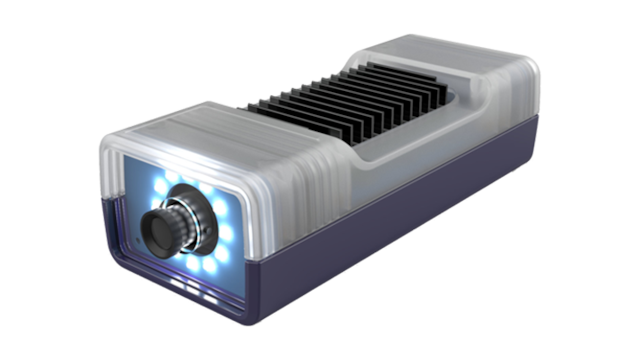

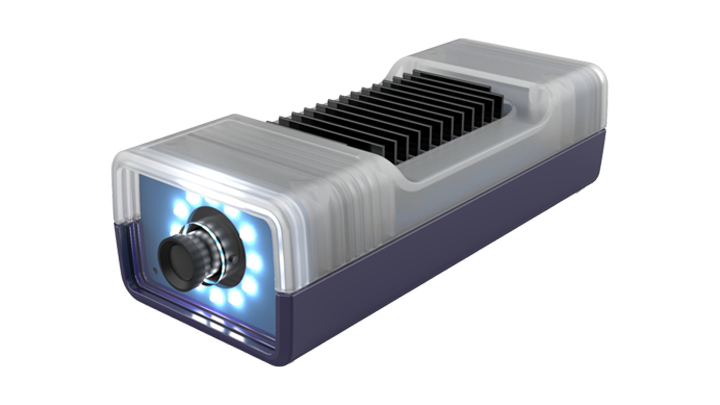

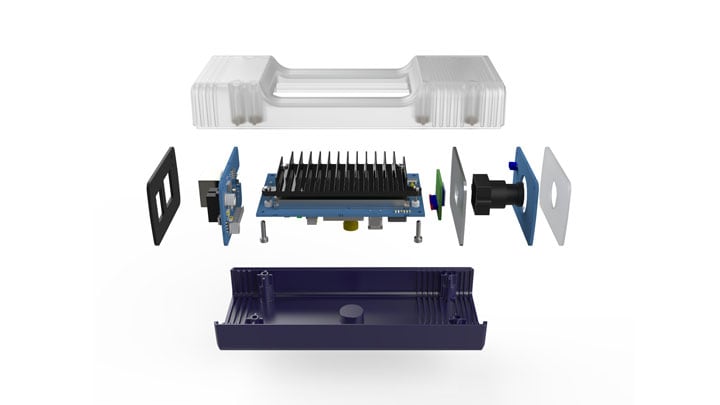

The Maivin AI Vision Starter Kit is a modular AI smart camera reference design available from Au-Zone Technologies, Toradex and Vision Components that is built with production-grade hardware and software components for quickly prototyping and field testing your next custom vision system. This vision kit is based on the i.MX 8M Plus applications processor.

Integrated out-of-the-box demo application examples for object detection, classification and tracking, this product can be customized by using eIQ® Toolkit for your own AI model or data set.​

支持的器件

处理器和微控制器

i.MX 8应用处理器

  • IMX8MPLUS: i.MX 8M Plus – Arm® Cortex®-A53，机器学习，视觉，多媒体和工业物联网

Features

Modular i.MX 8M Plus Computer on Module

  • i.MX8M Plus SOC, 4GB LPDDR4 RAM, 16GB NAND FLASH, 802.11AC WiFi, ISP with dual MIPI CSI sensor I/F

Modular Base

  • Computer on Module Socket
  • Gigabit Ethernet
  • RS485 Serial
  • M.2 Expansion Module for SSD or LTE WAN Modem
  • POE interface (optional)
  • LED Camera Flash board (optional)

Modular Image Sensors

  • Sony IMX296 1440 x 1080 Mono, Global Shutter
  • Sony IMX327 1920 x 1080 HDR, Rolling Shutter

Modular Termination Boards

  • Ethernet (10/100/1000M) connector
  • CAN Transceivers
  • RS485 Serial
  • GPIO for External Trigger Sync

Modular Enclosure

  • Indoor enclosure (standard)
  • Outdoor IP67 enclosure (optional)

Included Software Enablement

  • Production BSP
  • ISP and Image Sensor Drivers

Compatible Production Middleware
