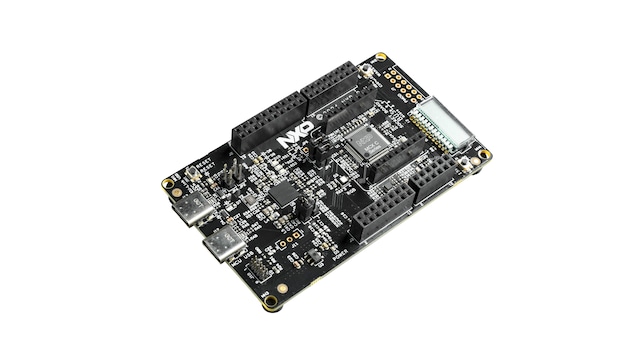

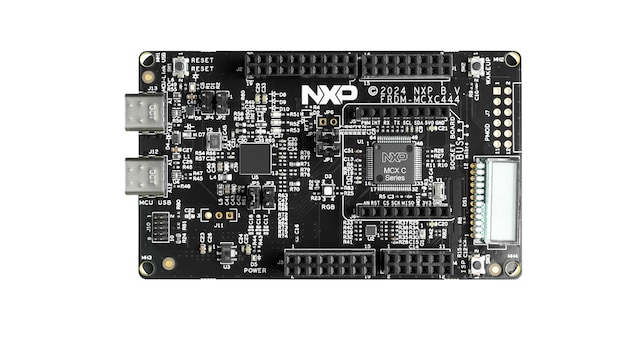

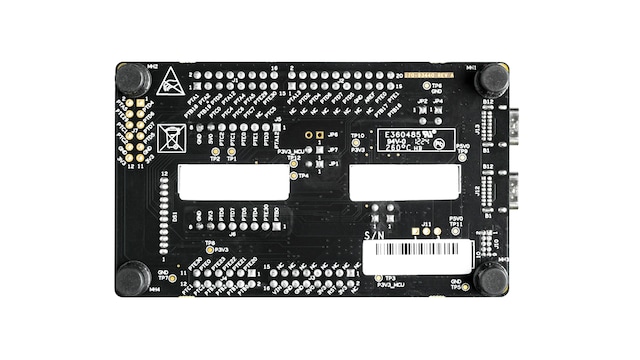

FRDM Development Board for MCX C444 MCUs

FRDM-MCXC444 全新正常供应

滚动图片以放大

FRDM-MCXC444 is a compact and scalable development board for rapid prototyping of MCX C444 MCU. It offers industry-standard headers for easy access to the MCU's I/Os, integrated open-standard serial interfaces and onboard MCU-Link debugger. Additional tools like our Expansion Board Hub for add-on boards and the Application Code Hub for software examples are available through the MCUXpresso Developer Experience.

产品详情

框图

FRDM-MCXC444 EVK

FRDM-MCXC444 Block Diagram
获取框图PDF

Features

Microcontroller

  • MCXC444 Arm® Cortex® -M0+ core @48MHz each with optimized performance efficiency, Up to 256 kB flash and 32 KB RAM

Connectivity

  • FS USB-Type C connector
  • SPI/I2C/UART connector (mikroBUS, Pmod™ *DNP)
  • Wi-Fi connector (mikroBUS, Pmod™ *DNP)

Debug

  • Onboard MCU-Link debugger with CMSIS-DAP
  • JTAG/SWD connector

Sensor

Expansion Options

  • Arduino® Header
  • FRDM Header
  • Pmod™ *DNP
  • mikroBUS™

User Interface

  • RGB user LED, Reset, ISP, wake-up buttons, SLCD

购买选项

FRDM-MCXC444-Image

点击展开

  • FRDM-MCXC444

  • FRDM Development Board for MCX C444 MCUs.

  • Kit contains:

    • FRDM-MCXC444
    • Quick Start Guide
    • USB Cable Type-C
