MPC567XKIT416-PT, MPC567XKIT516-PT

MPC567xF-REV-KIT
正常供应

滚动图片以放大

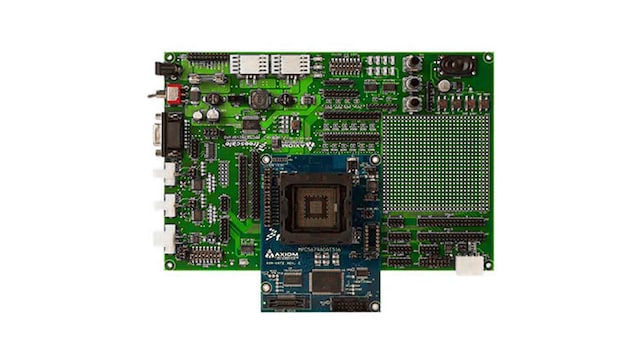

The NXP® MPC567XEVB is an evaluation system supporting both NXP MPC5674F and MPC5676R microprocessors. 整个系统由一个恩智浦MPC567XEVBMB电路主板构成，该主板可连接到以下任意一款适配卡：MPC567XADAT-PT4 (416PBGA)， 或者MPC567XADAT-PT5 (516PBGA)子卡。

产品详情

支持的器件

处理器和微控制器

超高可靠性的MPC56xx MCU

  • MPC5676R: 超可靠的MPC5676R MCU，适用于汽车和工业发动机管理

特征

MPC5674F/MPC5676R主板特性

  • 12 V直流电源输入圆柱形接头(附带电源)
  • 两个CAN通道，支持跳线
  • Two SCI channels with jumper enable
    • One with transceiver and DB-9 Connector
    • 一个带收发器和0.10接头
  • 一个LIN通道，支持跳线以及Molex连接器
  • 两个FlexRay通道，支持跳线
    • 两个通道都带有接收器和Molex连接器
  • 4个用户按钮开关
  • One 8-position user dipswitch
  • 8个用户LED
  • Three potentiometers for analog voltage control
  • 0.10引脚接头，可访问所有I/O
  • 2.5” x 2.5”原型区，具有5V和GND电轨

MPC567XADAT-PT5 Adapter Board Features

  • MPC567XADAT-PT5 has socket for either MPC547xF or MPC567xR in 516BGA foot print.
  • Jumper enables for all internal 1.2 V regulator options (linear or switch mode)
  • 外部同步SRAM (4Mbit)，带跳线可配置的Cs0/CS1芯片选择电路
  • 用于可选外部振荡器的插槽
  • 稳定可靠的Nexus和14引脚JTAG调试连接器

MPC567XADAT-PT4 Adapter Board Features

  • MPC567XADAT-PT4 has socket for either MPC547xF or MPC567xR in 416BGA foot print.
  • Jumper enables for all internal 1.2 V regulator options (linear or switch mode)
  • 用于可选外部振荡器的插槽
  • 稳定可靠的Nexus和14引脚JTAG调试连接器

购买选项

MPC567XADAT-PT4-Image

点击展开

  • MPC567XADAT-PT4
    正常供应

  • Adapter for Qorivva MPC5674F/MPC5676R BGA 416.

    • 评估板(提供支持MPC567xF和MPC567xR的带插槽适配器板)
    • P&E USB-ML-PPCNEXUS硬件接口线
    • XPC56xx资源CD-ROM
    • MPC567XADAT-PT5或MPC567XADAT-PT4
    • 保修卡
    • USB线缆
  • $749.00 USD
  • 数量为 1
    • 供货情况: 待定库存
加入购物车
从分销商处购买
MPC567XADAT-PT5-Image

点击展开

  • MPC567XADAT-PT5
    正常供应

  • Adapter for Qorivva MPC5674F/MPC5676R BGA 516.

  • 数量为 1
从分销商处购买
MPC567XKIT416-PT-Image

点击展开

  • MPC567XKIT416-PT
    正常供应

  • Evaluation Kit for Qorivva MPC5674F/MPC5676R, XPC567XMB-PT Motherboard and MPC567XADAT-PT4 Adapter.

  • $795.00 USD
  • 数量为 1
    • 供货情况: 待定库存
加入购物车
从分销商处购买
MPC567XKIT516-PT-Image

点击展开

  • MPC567XKIT516-PT
    正常供应

  • Evaluation Kit for Qorivva MPC5674F/MPC5676R, XPC567XMB-PT Motherboard and MPC567XADAT-PT5 Adapter.

  • 数量为 1
从分销商处购买
