产品详情

支持的器件

处理器和微控制器

超高可靠性的MPC56xx MCU

MPC560xS: 超可靠的MPC560xS MCU，适用于汽车和工业仪表板

电源管理

集成开关稳压器

MC33730: 带多个线性稳压器的电源

特征

微型模块

Minimodule can be ordered separately using the "ADPT" part numbers
MPC560SADPT144S has socket for MPC560xS in 144 LQFP footprint
MPC560PADPT176S has socket for MPC560xS in 176 LQFP footprint
MPC560PADPT208S has socket for MPC560xS in 208 MAPBGA footprint

主板

The MPC560SADPT Mini-Module Board can be used as a standalone board by providing external 5V power supply input.
带LED指示灯的电源开关
带滤波器和LED指示灯的复位按钮
XPC56xxMB电路板功能
12 V直流电源输入圆柱形接头
两个CAN通道，支持跳线
一个通道带高速收发器
另一个通道带低速容错和高速收发器(可通过跳线进行选择)
两个LIN通道，支持跳线
一个通道带收发器并填充了引脚接头
一个通道为空通道
一个SCI通道，支持跳线
两个FlexRay通道，支持跳线
一个通道，带收发器和DB9公接头
一个通道为空通道
4个用户自定义按钮，支持跳线和极性选择
4个用户自定义LED，支持跳线
1个针对模拟电压输入的电位计

购买选项

点击展开

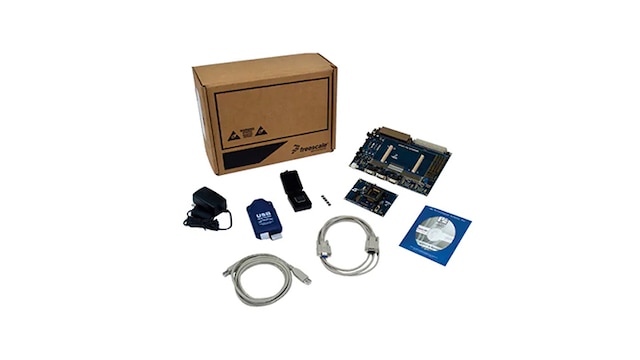

XPC560SKIT208S
MPC560xS Instrument Cluster Evaluation System.
- XPC56xxMPB2主板
- XPC560SADPT144S或XPC560SADPT176S或XPC560SADPT208S适配器
- XPC56xx资源CD-ROM
- P&E USB-ML-PPCNEXUS硬件接口线
- USB A-B线缆
- 恩智浦保修卡
