Evaluation Board for MPC561/562/563/564

MPC564EVB
正常供应

滚动图片以放大

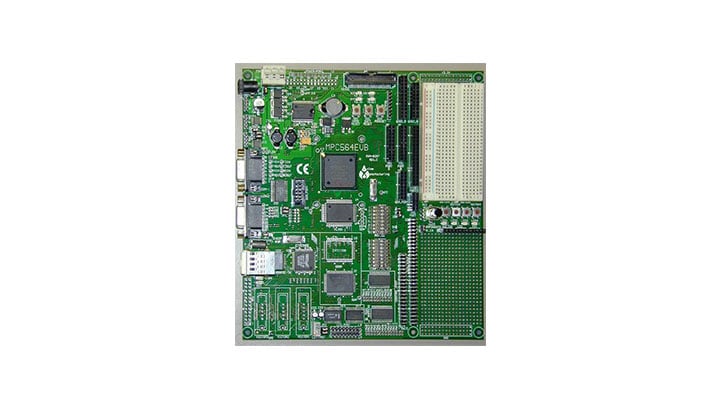

MPC564EVB是基于MPC564的评估板，可用于开发和测试MCU系统。该评估板是面向MPC564软件和硬件的开发与测试平台。该系统可用于开发面向MPC561、MPC562或MPC563等类似MCU的目标应用。软件和硬件开发人员可以使用它来测试程序、工具或电路，而无需开发一套完整的MCU系统来进行这种测试。

产品详情

支持的器件

处理器和微控制器

5xx控制器

  • MPC561: 32-Bit Microcontrollers
  • MPC562: 32-Bit Microcontrollers
  • MPC563: 32-Bit Microcontrollers
  • MPC564: 32-bit Microcontrollers

特征

存储器

  • Standard 32-bit data memory: 512 kB Fast SRAM, 2 MB Flash EPROM

数据连接

  • BDM调试开发连接器
  • Nexus 5001 50针标准连接器
  • 10/100以太网MAC+PHY
  • 两个带收发器的CAN端口(PCA82C250)
  • 两个带有DB-9连接器的串行端口
  • All I/O connectors on 0.1" grid

电源管理

  • MC33394 Multi-Output Power Supply with 1 CAN Port and transceiver
  • 带电源接入装置的电源端口
  • 6 to 25 VDC Input
  • Typical Operating Power: 400 ma @ 40 MHz

显示器

  • 支持对比度调整且已经过存储器映射的LCD接口连接器(80或160个字符)
  • Evaluation Board and Power Supply have CE Certification
  • 提供无焊标准原型设计区域
  • 包含一个摇摆器(wiggler)，用于连接到计算机
  • 套件随附用户手册

购买选项

MPC564EVBE-Image

点击展开

  • MPC564EVBE
    正常供应

  • Evaluation Board for 32-bit MPC564, Ethernet, CAN, LCD connector.

  • 数量为 1
MPC563MADPT176S-Image

点击展开

  • MPC563MADPT176S
    正常供应

  • Stand-alone Mini-module for Qorivva MPC563xM LQFP 176.

  • 数量为 1
