MPC564xA评估套件：XPC564AKIT176S、XPC564AKIT208S和XPC564AKIT324S

XPC564AEVBKIT

滚动图片以放大

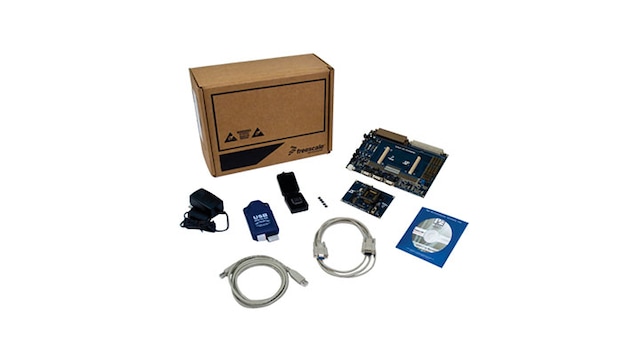

XPC564A EVB是一个支持恩智浦® MPC564xA微处理器的评估系统。

  • 完整的系统除了一个XPC56xxMB主板之外，还有一个可以插在主板上的XPC564AADPT微型模块。
  • 另有不同的微型模块可供您选择，用于评估MPC564xA系列微处理器中不同规格的器件。

产品详情

支持的器件

处理器和微控制器

超高可靠性的MPC56xx MCU

  • MPC564xA: 超可靠的MPC564xA MCU，适用于汽车和工业发动机管理

特征

XPC564AADPT微型模块板

  • Can be used as a standalone board by providing external 5 V power supply input
  • XPC564AADPT176S采用176LQFP封装，具有针对MPC564xA的插槽
  • XPC564AADPT208S 采用208BGA封装，具有针对 MPC564xA 的插槽
  • XPC564AADPT324S采用324BGA封装，具有针对MPC564xA的插槽
  • 带LED指示灯的电源开关
  • 带滤波器和LED指示灯的复位按钮

XPC56xxMB 电路板

  • 12 V直流电源输入圆柱形接头
  • 两个CAN通道，支持跳线
    • 一个通道带高速收发器
    • 另一个通道带低速容错和高速收发器（可通过跳线进行选择）
  • 两个LIN通道，支持跳线
    • 一个通道带收发器并填充了引脚接头
    • 一个通道为空通道
  • 一个SCI通道，支持跳线
  • 两个FlexRay通道，支持跳线
    • 一个通道，带收发器和DB9公接头
    • 一个通道为空通道
  • 4个用户自定义按钮，支持跳线和极性选择
  • 4 user LED's with jumper enables
  • 1个针对模拟电压输入的电位计

购买选项

MPC564AADPT176-Image

点击展开

  • MPC564AADPT176
    正常供应

  • Stand-alone Mini-module for Qorivva MPC564xA LQFP 176.

    • XPC56xxMB主板
    • 以下适配器卡之一
      • XPC564AADPT176S
      • XPC564AADPT208S
      • XPC564AADPT324S
    • XPC56xx资源CD–ROM
    • P&E USBvML–PPCNEXUS硬件接口线
    • USB A-B线缆
    • 恩智浦保修卡
  • 数量为 1
MPC564AADPT208-Image

点击展开

  • MPC564AADPT208
    正常供应

  • Stand-alone Mini-module for Qorivva MPC564xA BGA 208.

  • 数量为 1
MPC564AKIT176-Image

点击展开

  • MPC564AKIT176
    正常供应

  • Evaluation Kit for Qorivva MPC564xA, XPC56xxMB2 Motherboard and MPC564AADPT176 mini-module.

  • $649.00 USD
  • 数量为 1
    • 供货情况: 待定库存
加入购物车
从分销商处购买
MPC564AKIT208-Image

点击展开

  • MPC564AKIT208
    正常供应

  • Evaluation Kit for Qorivva MPC564xA, XPC56xxMB2 Motherboard and MPC564AADPT208 mini-module.

  • $699.00 USD
  • 数量为 1
    • 供货情况: 待定库存
加入购物车
从分销商处购买
MPC564AKIT324-Image

点击展开

  • MPC564AKIT324
    正常供应

  • Evaluation Kit for Qorivva MPC564xA, XPC56xxMB2 Motherboard and MPC564AADPT324 mini-module.

  • 数量为 1
XPC564AADPT208S-Image

点击展开

  • XPC564AADPT208S
    正常供应

  • Daughter Card for Qorivva MPC564xA BGA 208, with socket adapter.

  • 数量为 1
XPC564AADPT324S-Image

点击展开

  • XPC564AADPT324S
    正常供应

  • Daughter Card for Qorivva MPC564xA BGA 324, with socket adapter.

  • 数量为 1
XPC564AKIT176S-Image

点击展开

  • XPC564AKIT176S
    正常供应

  • Eval Kit for Qorivva MPC564xA, Includes XPC56xxMB2 Motherboard and XPC564AADPT176S daughter card.

  • 数量为 1
XPC564AKIT208S-Image

点击展开

  • XPC564AKIT208S
    正常供应

  • Eval Kit for Qorivva MPC564xA, Includes XPC56xxMB2 Motherboard and XPC564AADPT208S daughter card.

  • 数量为 1
XPC564AKIT324S-Image

点击展开

  • XPC564AKIT324S
    正常供应

  • Eval Kit for Qorivva MPC564xA, Includes XPC56xxMB2 Motherboard and XPC564AADPT324S daughter card.

  • 数量为 1
从分销商处购买
