S08PB16和S08PLS评估套件

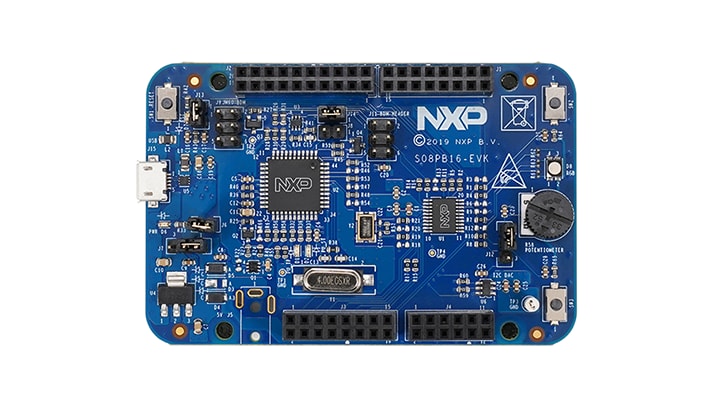

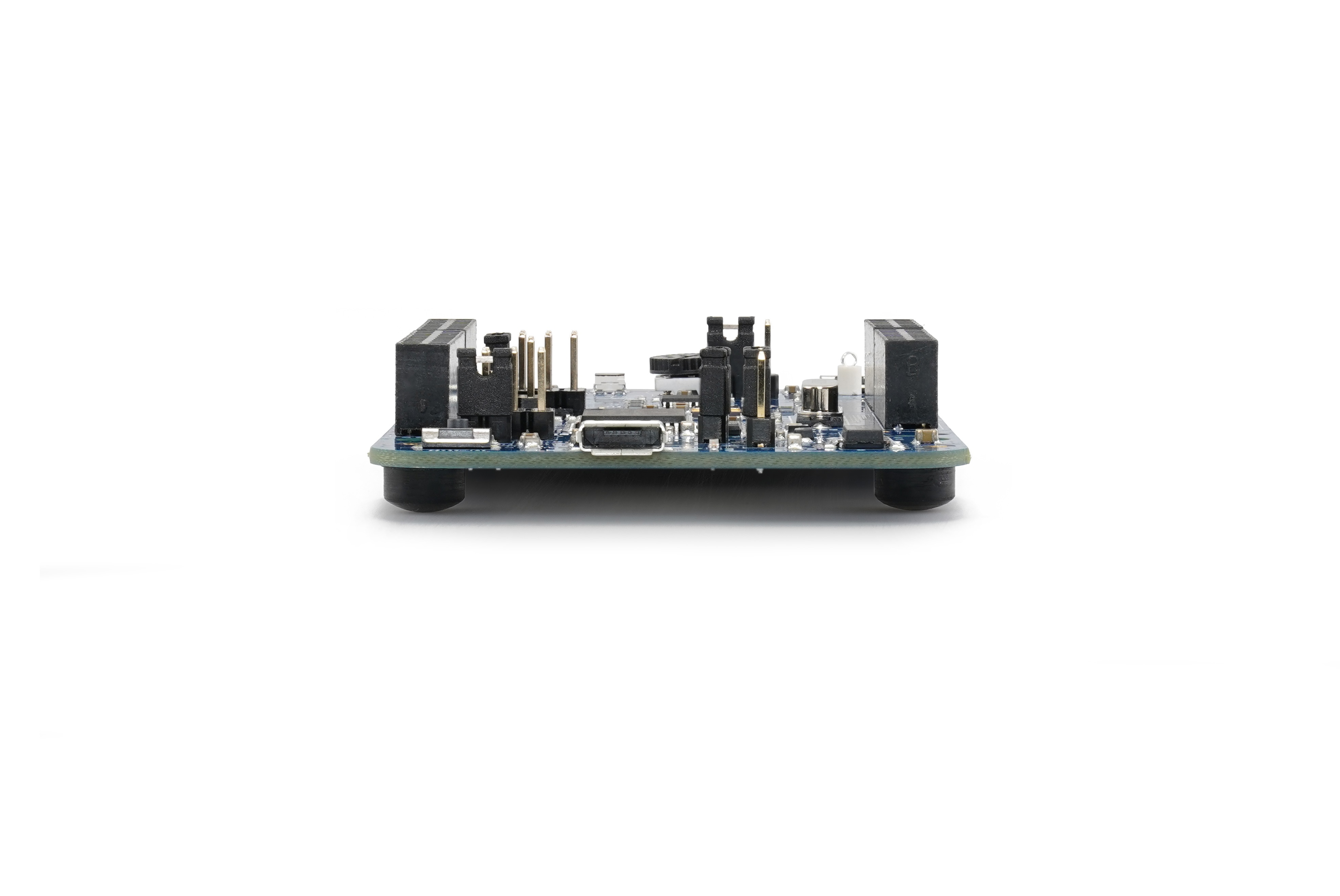

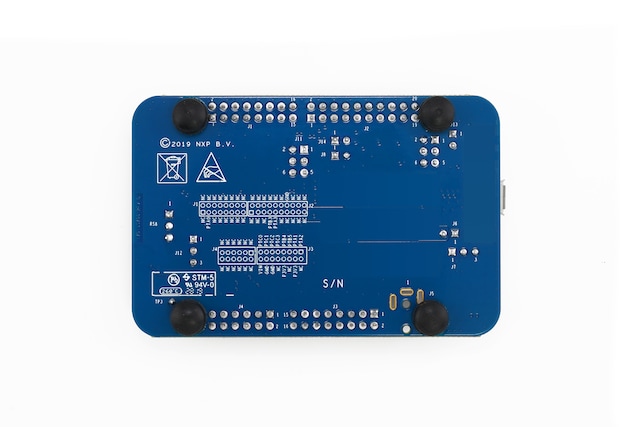

S08PB16-EVK

滚动图片以放大

S08PB16-EVK是面向恩智浦S08PB和S08PLS 5V 8位MCU的高性价比开发硬件。

  • S08PB16-EVK体积小，功能强大，具有丰富的集成外设，可评估S08PB和S08PLS MCU的所有功能。S08PB16-EVK支持OSBDM，无需外部调试工具即可刷新程序和运行控制调试。
  • S08PB16-EVK提供了扩展板选件，包括用于电机控制的FRDM-MC-LVBLDC。
  • 提供免费的示例代码，供用户参考。

框图

选择框图:

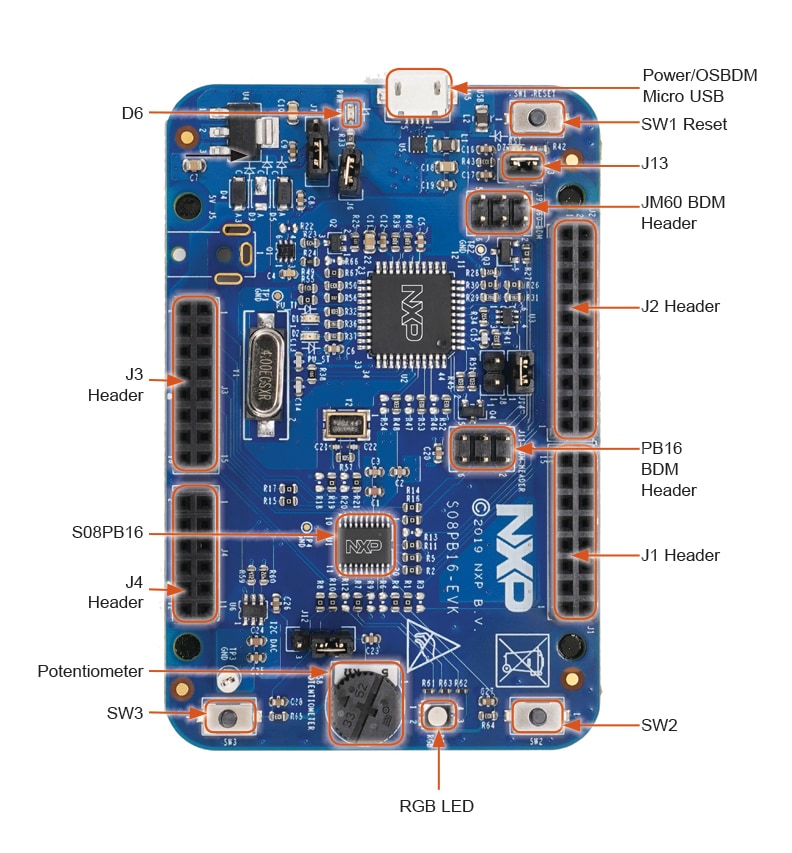

S08PB16-EVK-CALLOUTS

S08PB16-EVK-CALLOUTS

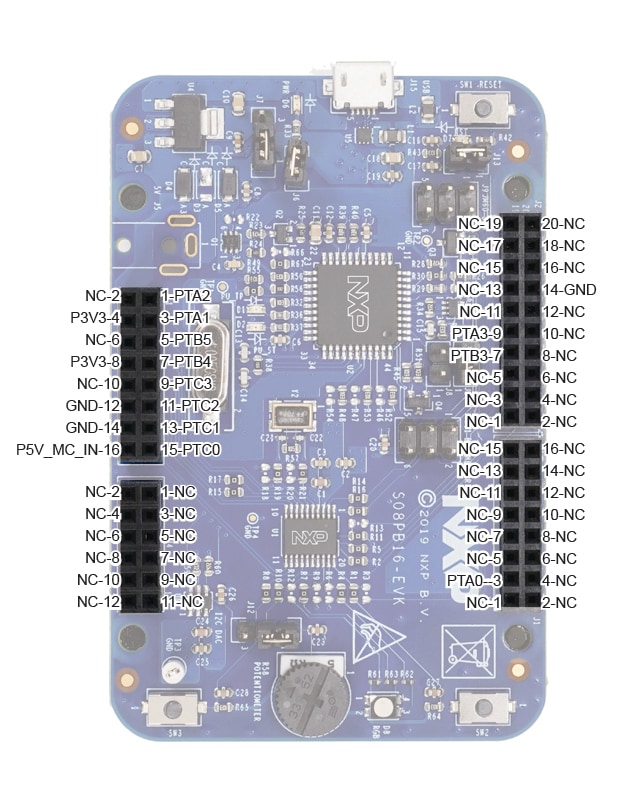

S08PB16-EVK-PINOUTS

S08PB16-EVK-PINOUTS
获取框图PDF

支持的器件

处理器和微控制器

8位S08 MCU

  • S08PLS: 8位5V MCU，带简化功能
  • S08PB: 功能完备的8位5V MCU，带有丰富的模拟功能

功能

微控制器(MCU)

  • MC9S08PB16VTJ MCU, 20 MHz
  • 16 KB闪存，1 KB RAM
  • 2.7至5.5V
  • -40至105 °C
  • 20-TSSOP

连接

  • USB接口，带微型B USB连接器

调试

  • 带虚拟串行端口的板载调试电路：MC9S08JM60CLD(OSBDM)

组件

  • RGB LED
  • 电位计
  • 两个用户按钮

购买选项

S08PB16-EVK-Image

点击展开

  • S08PB16-EVK
    正常供应

  • S08PB16 and S08PLS Evaluation Kit.

  • $27.59 USD
  • 数量为 1
    • 供货情况: 待定库存
