三相逆变器评估套件，用于搭载GD3160的Semikron eMPack模块

RDGD31603PSMKEVM

滚动图片以放大

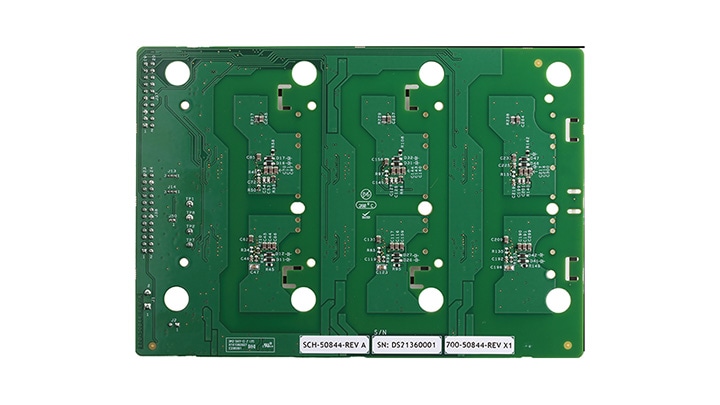

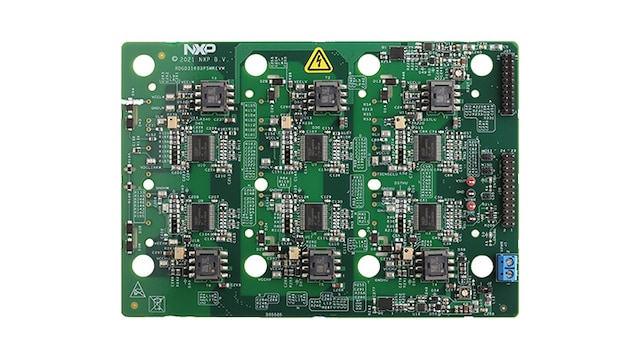

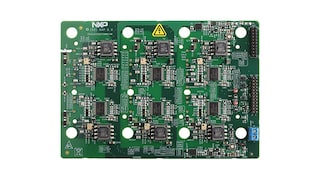

RDGD31603PSMKEVM是三相参考设计和评估套件，装有六个GD3160栅极驱动器，适用于兼容的IGBT/SiC MOSFET设备。该套件包含Freedom KL25Z微控制器硬件，连接安装有Flex GUI软件的PC，可采用菊花链或独立配置的方式与GD3160栅极驱动器上的SPI寄存器进行通信。

该评估套件专为搭配eMPack功率模块使用设计，尤其适用于Semikron的eMP1300MD12SC2S-APK套件。该套件可用于单相和全三相应用开发中的双脉冲和短路测试。

产品详情

支持的器件

电源管理

动力和发动机控制

  • GD3160: 面向SiC MOSFET的具有段式驱动的先进高压隔离栅极驱动器

功能

功能

  • 可连接Semikron的eMPack功率模块，如eMP1300MD12SC2S-APK套件（产品编号：19285392），详情请访问 www.semikron.com
  • Flex GUI图形用户接口可与该套件配套使用
  • 菊花链SPI接口可配置
  • 可轻松配置跳线选项
  • 可使用Flex GUI配置SPI寄存器选项
  • 双脉冲和短路评估
  • 外部PWM输入的光纤连接

购买选项

RDGD31603PSMKEVM-Image

点击展开

  • RDGD31603PSMKEVM
    正常供应

  • 3 Phase Inverter Evaluation Kit for Semikron eMPack Featuring GD3160.

  • 套件包含

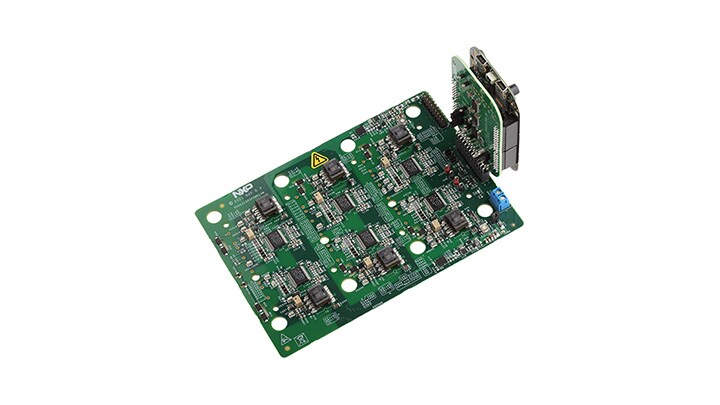

    • 配备KL25Z MCU的KITGD3160TREVB转换板
    • Micro USB线缆
    • 快速入门指南
  • $575.46 USD
  • 数量为 1
    • 供货情况: 现货
    • 库存: 11
    • 配送: 正常情况下 1-2个工作日内发货
加入购物车
从分销商处购买
