评估套件 - 33932，双5A油门控制

KIT33932VWEVBE
正常供应

滚动图片以放大

该评估套件面向33932。33932是一款单片式H桥电源IC，采用耐用的热增强型封装。33932在同一封装中整合了两个独立的单片式H桥电源IC。它们主要用于汽车电子油门控制，但也可用于所要求的电流和电压限制范围内的任何低压DC伺服​电机控制应用。

33932中的每个H桥都能控制电感负载，峰值电流可达5.0 A。RMS电流能力取决于器件封装的散热能力。在负载电流达到6.5 A ±1.5 A以上时，内部峰值电流限制(调节)被激活。当频率达到11 kHz时，可对输出负载进行脉宽调制(PWM)。负载电流反馈功能提供成比例的(0.24%的负载电流)电流输出，适合由微控制器的A/D输入来监控。状态标志输出报告欠压、过流和过热故障情况。

该评估套件可与KITUSBSPIDGLEVME配合使用。

产品详情

支持的器件

电源管理

BLDC，H桥，步进电机

  • MC33931: H桥有刷直流电机驱动器，5-28V，5A，11kHz

动力和发动机控制

  • MC33932: H桥电机驱动器, 5-28 V, 5 A, 11 kHz

特征

数据连接

  • 所有输入均有一个内部源/汇点来定义默认(浮动输入)状态

电源管理

  • 8.0至28 V连续工作电压(瞬态电压范围为5.0至40 V)
  • 235 mΩ最大导通电阻 @ 150°C (每个H桥MOSFET)
  • 3.0 V和5.0 V TTL / CMOS逻辑兼容输入
  • 通过内部恒定关断时间PWM进行过流限制(调节)
  • 输出短路保护(短接至VPWR或GND)
  • 睡眠模式下电流消耗小于50 µA (每个H桥)
  • 与温度有关的电流限制阈值下降

购买选项

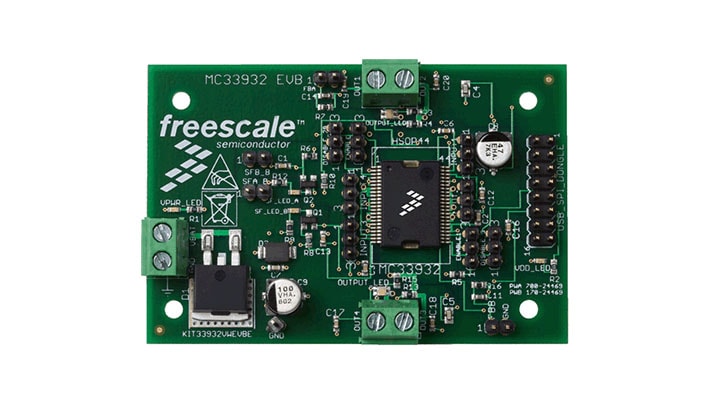

KIT33932VWEVBE-Image

点击展开

  • KIT33932VWEVBE
    正常供应

  • Evaluation Kit - MC33932, Dual 5.0 A Throttle Control H-Bridge.

    • KIT33932VWEVBE硬件
    • 快速参考指南
  • $92.74 USD
  • 数量为 1
    • 供货情况: 待定库存
加入购物车
从分销商处购买
N true 0 TSPKIT33932VWEVBEzh 3 数据手册 Data Sheet t520 2 用户指南 User Guide t792 1 zh 3 1 5.0 English The 33931 is a monolithic H-bridge Power IC in a robust thermally enhanced package. 1236980393704704118810 TSP 618.5 KB None None documents None 1236980393704704118810 /docs/en/data-sheet/MC33931.pdf 618542 /docs/en/data-sheet/MC33931.pdf MC33931 N N 2018-09-10 MC33931, 5.0 A Throttle Control H-Bridge - Data Sheet /docs/en/data-sheet/MC33931.pdf /docs/en/data-sheet/MC33931.pdf Data Sheet N Y 980000996212993340 2022-12-07 pdf N en Sep 10, 2018 Data Sheet t520 数据手册 Data Sheet Y N MC33931, 5.0 A Throttle Control H-Bridge - Data Sheet 2 2.0 English The KIT33932VWEVBE Evaluation Board (EVB) is an easy-to-use circuit board that allows the user to exercise all the functions of the MC33932 H-Bridge circuit 1235060106436731026893 TSP 427.8 KB None None documents Y None 1235060106436731026893 /docs/en/user-guide/KT33932UG.pdf 427787 /docs/en/user-guide/KT33932UG.pdf KT33932UG N 2009-02-19 KIT33932VWEVBE, Evaluation Board - User Guide /docs/en/user-guide/KT33932UG.pdf /docs/en/user-guide/KT33932UG.pdf User Guide N Y 132339537837198660 2023-06-19 pdf en Apr 27, 2011 User Guide t792 用户指南 User Guide Y N KIT33932VWEVBE, Evaluation Board - User Guide 3 6.0 English The 33932 is a monolithic H-bridge power IC in a robust thermally enhanced package. 1231509534538702671366 TSP 756.2 KB None None documents None 1231509534538702671366 /docs/en/data-sheet/MC33932.pdf 756175 /docs/en/data-sheet/MC33932.pdf MC33932 N N 2018-09-10 MC33932, 5.0A Throttle Control H-Bridge - Data Sheet /docs/en/data-sheet/MC33932.pdf /docs/en/data-sheet/MC33932.pdf Data Sheet N Y 980000996212993340 2022-12-07 pdf N en Sep 10, 2018 Data Sheet t520 数据手册 Data Sheet Y N MC33932, 5.0A Throttle Control H-Bridge - Data Sheet false zh 0 false zh false 0 KIT33932VWEVBE downloads zh-Hans true 0 Y TSP 数据手册 2 /docs/en/data-sheet/MC33931.pdf 2018-09-10 1236980393704704118810 TSP 1 Sep 10, 2018 Data Sheet 数据手册 The 33931 is a monolithic H-bridge Power IC in a robust thermally enhanced package. None /docs/en/data-sheet/MC33931.pdf English 618542 None Data Sheet 2022-12-07 N /docs/en/data-sheet/MC33931.pdf MC33931, 5.0 A Throttle Control H-Bridge - Data Sheet /docs/en/data-sheet/MC33931.pdf documents 980000996212993340 Data Sheet N Y en None Y t520 pdf 5.0 N N MC33931, 5.0 A Throttle Control H-Bridge - Data Sheet 618.5 KB MC33931 N 1236980393704704118810 /docs/en/data-sheet/MC33932.pdf 2018-09-10 1231509534538702671366 TSP 3 Sep 10, 2018 Data Sheet 数据手册 The 33932 is a monolithic H-bridge power IC in a robust thermally enhanced package. None /docs/en/data-sheet/MC33932.pdf English 756175 None Data Sheet 2022-12-07 N /docs/en/data-sheet/MC33932.pdf MC33932, 5.0A Throttle Control H-Bridge - Data Sheet /docs/en/data-sheet/MC33932.pdf documents 980000996212993340 Data Sheet N Y en None Y t520 pdf 6.0 N N MC33932, 5.0A Throttle Control H-Bridge - Data Sheet 756.2 KB MC33932 N 1231509534538702671366 用户指南 1 /docs/en/user-guide/KT33932UG.pdf 2009-02-19 1235060106436731026893 TSP 2 Apr 27, 2011 User Guide 用户指南 The KIT33932VWEVBE Evaluation Board (EVB) is an easy-to-use circuit board that allows the user to exercise all the functions of the MC33932 H-Bridge circuit Y None /docs/en/user-guide/KT33932UG.pdf English 427787 None User Guide 2023-06-19 /docs/en/user-guide/KT33932UG.pdf KIT33932VWEVBE, Evaluation Board - User Guide /docs/en/user-guide/KT33932UG.pdf documents 132339537837198660 User Guide N Y en None Y t792 pdf 2.0 N KIT33932VWEVBE, Evaluation Board - User Guide 427.8 KB KT33932UG N 1235060106436731026893 true Y Tools
