评估套件 - 33814，双缸小型发动机控制

KIT33814AEEVBE
正常供应

滚动图片以放大

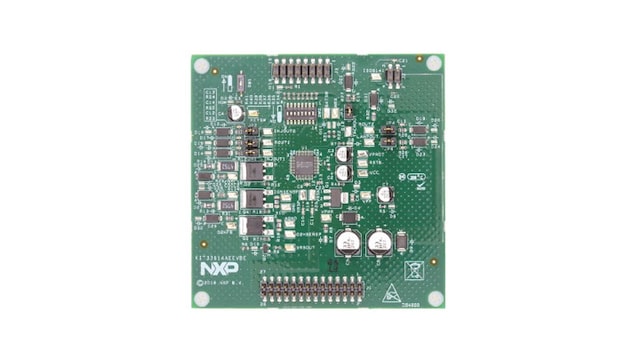

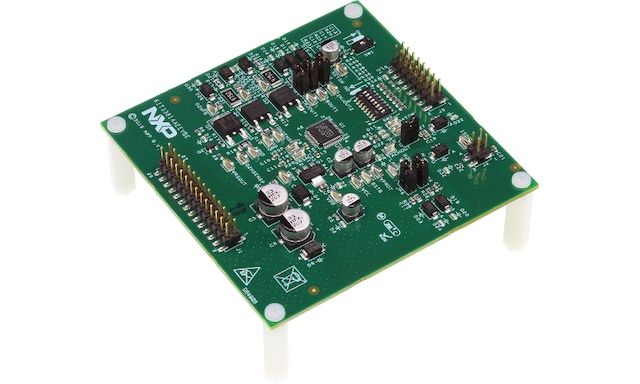

The KIT33814AEEVBE evaluation board (EVB) is an easy-to-use circuit board that allows you to exercise the functions of the NXP® MC33814 two cylinder small engine control IC.

PC通过连接到其USB端口的USB/SPI Dongle (KITUSBSPIDGLEVME)来与该EVB通信。The NXP SPIGen program provides the user interface to the MC33814 SPI (serial peripheral interface) port and allows you to send commands to the IC and receive status from the IC.

产品详情

支持的器件

电源管理

动力和发动机控制

  • MC33814: 双缸小型发动机控制IC

特征

主要特性

  • MCU复位生成器-系统完整性监控器(看门狗)

数据连接

  • 使用5.0 V SPI和逻辑I/O直接连接MCU

电源管理

  • 设计的工作电压范围为4.5 V ≤ VPWR ≤ 36 V
  • 确保逻辑稳定性的最低电压为2.5 V
  • VPROT受保护的传感器电源，跟踪VCC +5.0 V稳压器
  • VPP preregulator provides power for VCC and VPROT regulators
  • 钥匙开关逻辑，用于设置电源继电器和MCU控制的关断

驱动程序

  • One O2 sensor (HEGO) heater general-purpose gate pre-driver
  • 两个喷油器驱动器 - 典型值1.3 A
  • Two ignition IGBT or general-purpose gate predrivers
  • 继电器1驱动器，典型值2.0 A，用于燃油泵控制
  • 继电器2驱动器，典型值1.0 A，用于电源继电器控制
  • 灯泡驱动器，典型值1.0 A，也可用于驱动一个LED

组件

  • 独立的故障保护，所有故障通过SPI报告
  • ISO 9141 K-Line接口，用于传送诊断信息

购买选项

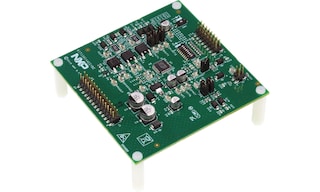

KIT33814AEEVBE-Image

点击展开

  • KIT33814AEEVBE
    正常供应

  • Evaluation Kit - MC33814, Two Cylinder Small Engine Control IC.

    • KIT33814AEEVBE硬件
    • 快速参考指南
  • $228.00 USD
  • 数量为 1
    • 供货情况: 待定库存
加入购物车
从分销商处购买
N true 0 TSPKIT33814AEEVBEzh 2 数据手册 Data Sheet t520 1 用户指南 User Guide t792 1 zh 2 1 14.0 English The 33814 is an engine control analog power IC intended for two cylinder motorcycle and other small engine control applications. The IC consists of low side drivers, pre-drivers, a Variable Reluctance Sensor (VRS) input circuit, a voltage pre-regulator and two 5 volt internal regulators. Also included is a microcontroller unit (MCU), reset control circuit with watchdog, an ISO 9141 K-Line interface for diagnostic communication and a Serial Peripheral Interface (SPI). 1345133750403711686776 TSP 3.5 MB None None documents None 1345133750403711686776 /docs/en/data-sheet/MC33814.pdf 3470833 /docs/en/data-sheet/MC33814.pdf MC33814 N N 2017-07-11 Two cylinder small engine control IC - Data sheet /docs/en/data-sheet/MC33814.pdf /docs/en/data-sheet/MC33814.pdf Data Sheet N Y 980000996212993340 2022-12-07 pdf N en Oct 23, 2020 Data Sheet t520 数据手册 Data Sheet Y N Two cylinder small engine control IC - Data sheet 2 3.0 English The KIT33814AEEVBE Evaluation Board is an easy-to-use circuit board that allows the user to exercise all the functions of the MC33814 two cylinder small engine control IC. 1357583465612702223411 TSP 8.5 MB None None documents Y None 1357583465612702223411 /docs/en/user-guide/KT33814UG.pdf 8485280 /docs/en/user-guide/KT33814UG.pdf KT33814UG N N 2018-11-05 KIT33814AEEVBE, Evaluation Board - User Guide /docs/en/user-guide/KT33814UG.pdf /docs/en/user-guide/KT33814UG.pdf User Guide N Y 132339537837198660 2023-06-19 pdf N en Nov 5, 2018 User Guide t792 用户指南 User Guide Y N KIT33814AEEVBE, Evaluation Board - User Guide false zh 0 false zh false 0 KIT33814AEEVBE downloads zh-Hans true 0 Y TSP 数据手册 1 /docs/en/data-sheet/MC33814.pdf 2017-07-11 1345133750403711686776 TSP 1 Oct 23, 2020 Data Sheet 数据手册 The 33814 is an engine control analog power IC intended for two cylinder motorcycle and other small engine control applications. The IC consists of low side drivers, pre-drivers, a Variable Reluctance Sensor (VRS) input circuit, a voltage pre-regulator and two 5 volt internal regulators. Also included is a microcontroller unit (MCU), reset control circuit with watchdog, an ISO 9141 K-Line interface for diagnostic communication and a Serial Peripheral Interface (SPI). None /docs/en/data-sheet/MC33814.pdf English 3470833 None Data Sheet 2022-12-07 N /docs/en/data-sheet/MC33814.pdf Two cylinder small engine control IC - Data sheet /docs/en/data-sheet/MC33814.pdf documents 980000996212993340 Data Sheet N Y en None Y t520 pdf 14.0 N N Two cylinder small engine control IC - Data sheet 3.5 MB MC33814 N 1345133750403711686776 用户指南 1 /docs/en/user-guide/KT33814UG.pdf 2018-11-05 1357583465612702223411 TSP 2 Nov 5, 2018 User Guide 用户指南 The KIT33814AEEVBE Evaluation Board is an easy-to-use circuit board that allows the user to exercise all the functions of the MC33814 two cylinder small engine control IC. Y None /docs/en/user-guide/KT33814UG.pdf English 8485280 None User Guide 2023-06-19 N /docs/en/user-guide/KT33814UG.pdf KIT33814AEEVBE, Evaluation Board - User Guide /docs/en/user-guide/KT33814UG.pdf documents 132339537837198660 User Guide N Y en None Y t792 pdf 3.0 N N KIT33814AEEVBE, Evaluation Board - User Guide 8.5 MB KT33814UG N 1357583465612702223411 true Y Tools
