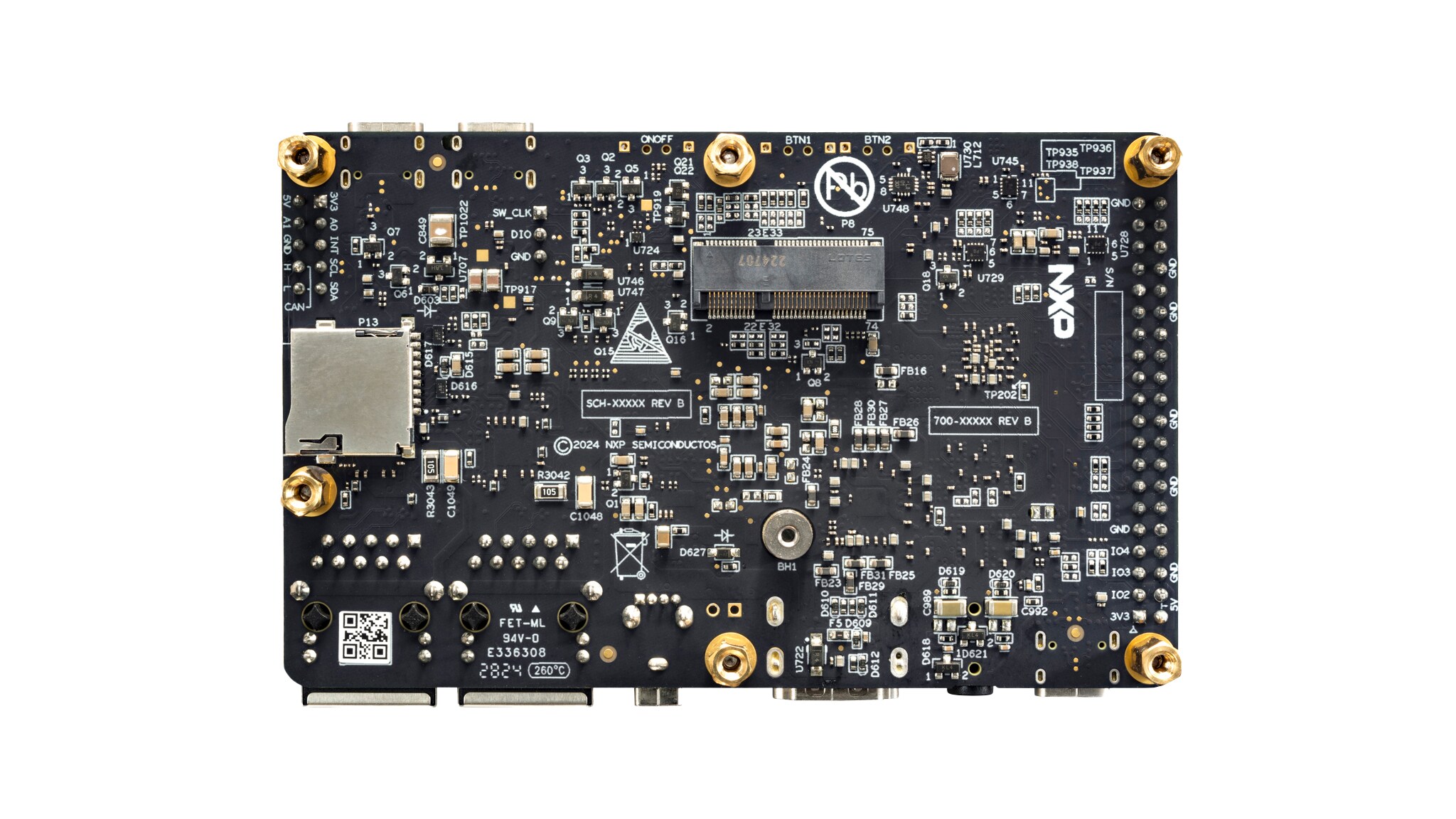

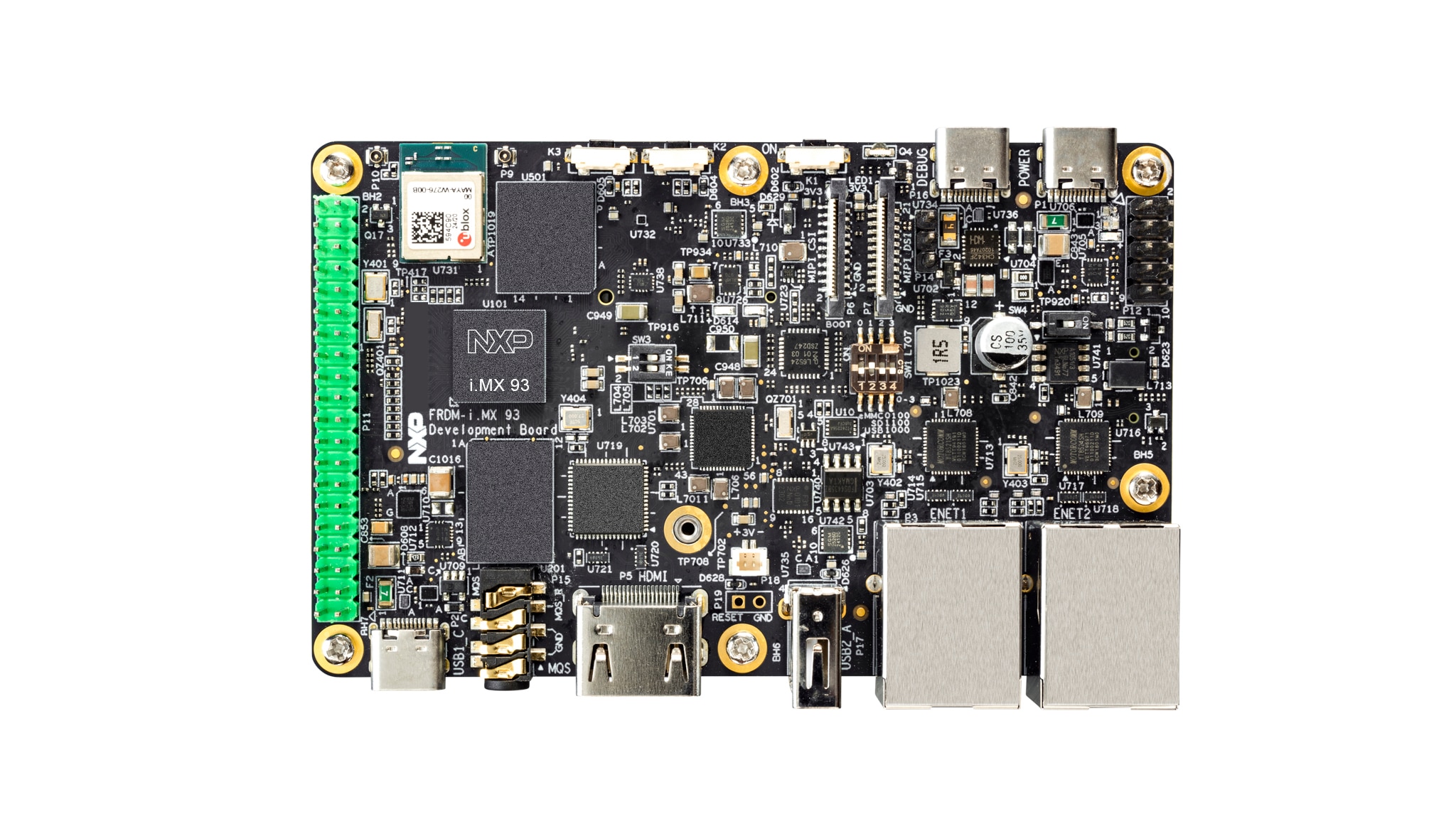

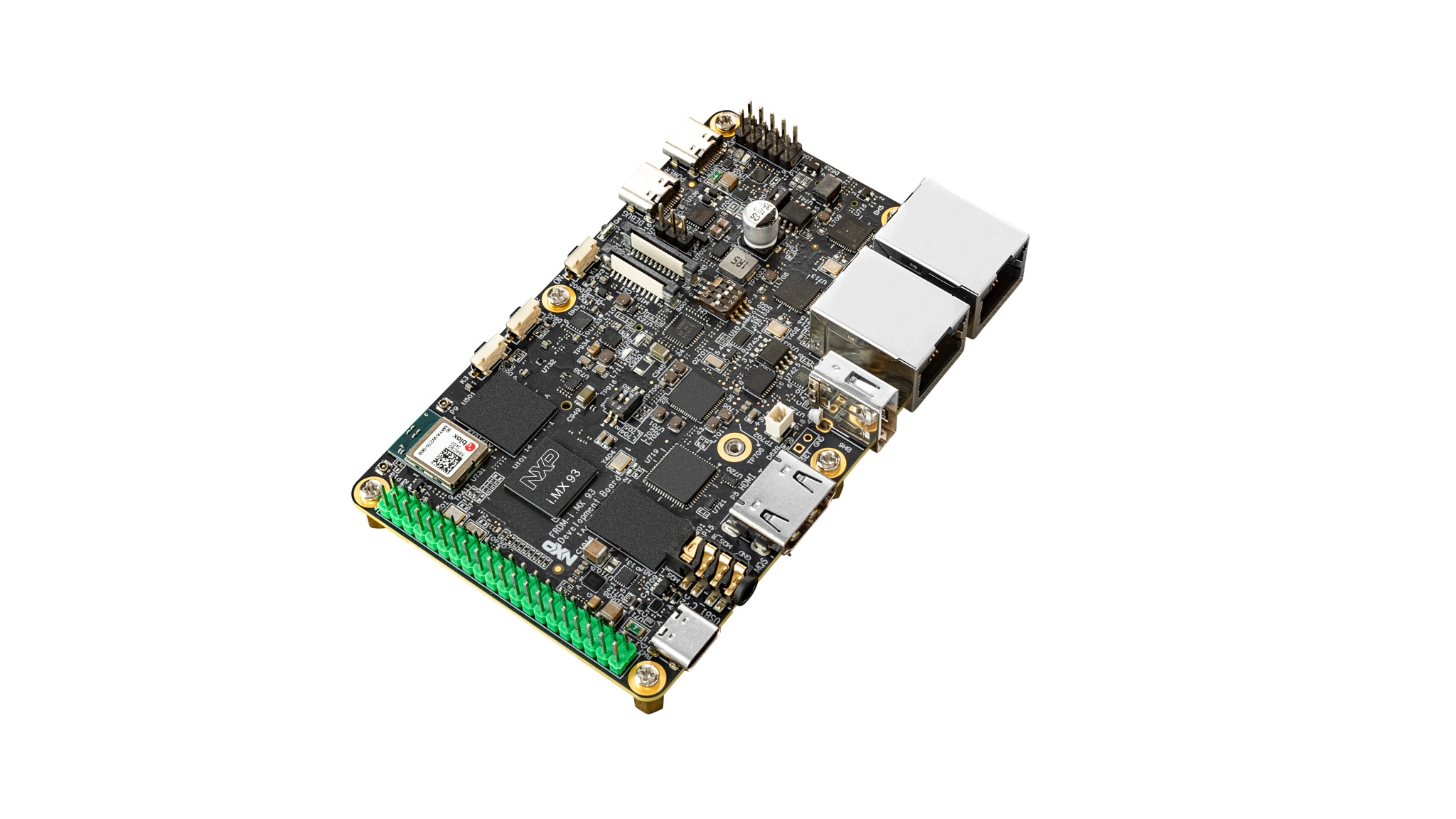

FRDM i.MX 93 Development Board

FRDM-IMX93 正常供应

滚动图片以放大

The FRDM i.MX 93 development board is a low-cost and compact development board featuring the i.MX93 applications processor. Equipped with an onboard IW612 module, featuring NXP's Tri-Radio solution with Wi-Fi 6 + Bluetooth 5.4 + 802.15.4, the board is ideal for developing modern Industrial and IoT applications. This development board includes an HDMI display interface, LPDDR4/LPDDR4X, eMMC storage for quick boot times, PMIC and expansion capabilities. The FRDM i.MX 93 board also supports GoPoint for i.MX Applications Processors, which accelerates the time to market by providing comprehensive demos for a variety of use cases.

框图

FRDM-IMX93

FRDM i.MX-93

支持的器件

模拟及混合信号

实时时钟

  • PCF2131: 纳米功率高精度实时时钟，带集成石英晶体

接口

通用I/O(GPIO)

  • PCAL6524: 超低电压转换24位Fm+ I²C总线/SMBus I/O扩展器
  • PCAL6408A: 低压转换8位I²C总线/SMBus I/O扩展器

3.3V/5V IO CAN收发器

USB接口

电源管理

PMIC

  • PCA9451A: 面向i.MX 93x应用处理器的PCA9451A电源管理IC

负载开关

  • NX20P3483UK: USB PD和Type-C高压灌/拉电流组合开关，带保护装置
  • NX20P5090UK: 高压USB PD电源开关
  • NX20P0407: USB Type-C CC和SBU保护IC

无线连接

Wi-Fi® +蓝牙® + 802.15.4

  • IW612: 2.4/5GHz双频1x1 Wi-Fi® 6 (802.11ax) + Bluetooth® 5.4 + 802.15.4三频解决方案

处理器和微控制器

i.MX9处理器

  • i.MX93: i.MX 93应用处理器系列——Arm® Cortex®-A55，ML加速，高能效MPU

Features

Processor

  • i.MX 93 Applications Processor
  • Dual Cortex-A55 @1.7GHz
  • Cortex-M33 @250MHz
  • Arm® Ethos™ U-65 Micro-NPU
  • EdgeLock® Secure Enclave

Memory​

  • 2 GB LPDDR4X / LPDDR4
  • 32 GB eMMC5.1
  • MicroSD slot
  • EEPROM

Display and Camera Interfaces​

  • x4 lane MIPI DSI interface, FPC 22-Pin connector
  • x4 lane LVDS to HDMI, HDMI connector
  • x2 lane MIPI CSI-2 interface, FPC 22-Pin connector

Wireless​

  • u-blox MAYA-W276-00B Tri-Radio Wi-Fi 6, Bluetooth 5.4, and 802.15.4 module
  • Dual-mode Bluetooth classic and Bluetooth Low Energy 5.4
  • 802.15.4 radio supporting Thread and Zigbee

Audio

  • 3.5mm headphone jack for MQS support

Connectivity

  • USB2.0 Type-C connector
  • USB2.0 type A connector
  • GbE RJ45 x 2
  • CAN (HDR)
  • 2x20 EXPI
  • I²C HDR
  • ADC HDR

Debug

  • SWD connector
  • UART via USB-Type C

Tools and OS Support

  • Linux®
  • FreeRTOS
