MCIMX93-QSB
正常供应 -
i.MX 93 Quick Start Evaluation Kit.

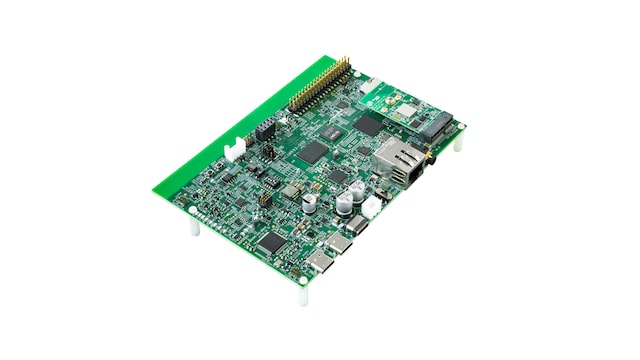

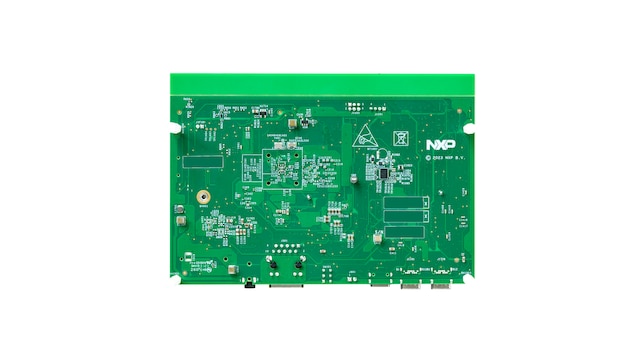

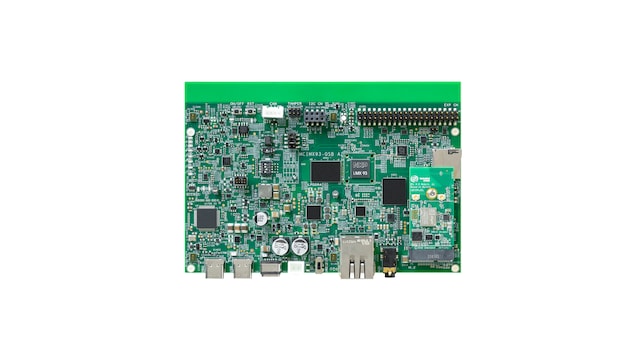

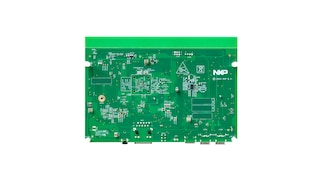

i.MX 93 Quick Start Evaluation Kit
The i.MX 93 quick start evaluation kit provides a low-cost platform to evaluate the i.MX 93 applications processors in a 9x9mm package.
The single-board solution consists of the i.MX 93 SoC (9x9mm package), LPDDR4/LPDDR4X, eMMC, PMIC and brings out the broad connectivity that is needed for product evaluation. This kit provides an excellent starting point by providing a low-cost reference board design to accelerate your time to market.
产品详情
框图
Features
Processor
- i.MX 93 Applications Processor
- Dual Cortex-A55 @1.7GHz
- Cortex-M33 @250MHz
- Arm® Ethos™ U-65 MicroNPU
- EdgeLock® Secure Enclave
Memory
- 2 GB LPDDR4X / LPDDR4
- 16 GB eMMC5.1
- Quad SPI Flash
- MicroSD slot
Display and Camera Interfaces
- Parallel RGB LCD (2x20 RPi)
- Parallel Camera (2x20 RPi)
Wireless
- M.2 KEY-E slot with WiFi / BT IEEE802.15.4 support
Audio
- Audio HP Jack
- Audio HAT board support
- PDM MIC array support
Connectivity
- USB C 2.0 connectors
- GbE RJ45
- CAN (HDR)
- RPi 2X20 GPIO HDR
- I²C HDR
- ADC support
- M.2 Key-E connector
Debug
- JTAG connector
- UART via USB C
- Remote debug support
Sensors
- I3C IMU support
Security
- Tamper support
Tools and OS Support
- Linux®
- FreeRTOS
