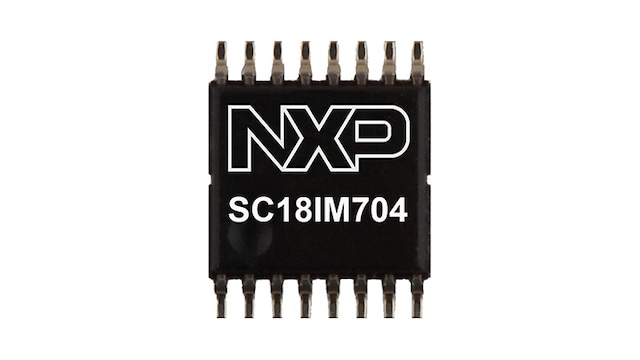

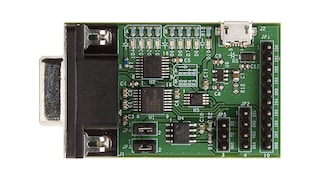

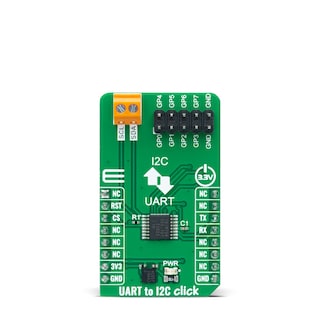

UART至I²C总线桥接

SC18IM704
正常供应

滚动图片以放大

SC18IM704用作微控制器或微处理器标准UART端口和串行I²C总线之间的接口；允许微控制器或微处理器与其他I²C总线器件直接通信。SC18IM704可用作 I²C总线控制器。SC18IM704控制所有I²C总线特定序列、协议、仲裁和时序。主机通过ASCII信息协议与SC18IM704进行通信；使从主机至SC18IM704的控制序列变得非常简单。

SC18IM704是SC18IM700的功能替代产品，但存在以下差别：新的引脚布局、通用IO不支持准双向模式、工作供电电压更低，SC18IM704的工作电压为1.71V，SC18IM700的工作电压为2.4V，SC18IM704的温度范围为-40°C至105°C，SC18IM700的温度范围为-40°C至85°C。

框图

SC18IM704PW

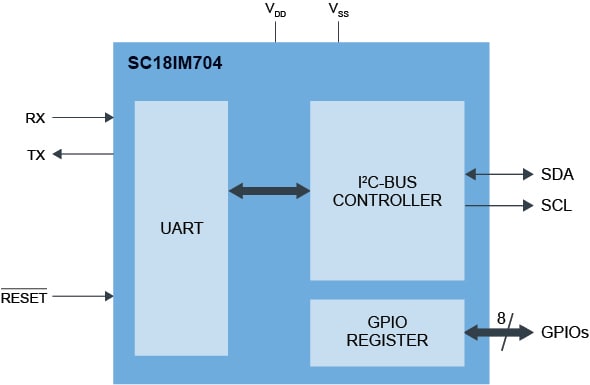

SC18IM704PW Block Diagram
获取框图PDF

特性

主要特性

  • UART主机接口到I²C总线控制器
  • 8个可编程I/O引脚
  • 高速UART：波特率最快为460.8kbit/s
  • UART消息格式与I²C总线传输格式相似
  • 8 N 1 UART格式(8个数据位，无奇偶校验位，1个停止位)
  • 快速模式I²C总线：375kHz
  • 256字节TX和RX FIFO
  • 工作电压：1.71V和3.6V，5V容压I/O引脚

温度范围

  • -40至105°C

ESD保护

  • 根据JESD22-A114，超过2000V HBM

对比表

SPI/UART至I²C

部件编号 UART SPI I²C 通用IO 功能
SC18IS604 NA 1.2MHz 375kHz 5 SPI至I²C
SC18IM704 460.8Kbit/s NA 375kHz 8 UART至I²C

I²C至SPI

部件编号 UART SPI I²C 通用IO 功能
SC18IS606 NA 1.8MHz 400kHz 3 I²C至SPI

I²C/SPI至UART

部件编号 UART SPI I²C 通用IO 功能
SC16IS740/750/752 5Mbit/s 15Mbit/s 400kHz 8 I²C/SPI至UART
