i.MX 8M系列应用处理器基于Arm® Cortex®-A53和Cortex-M4内核，具有先进的音频、语音和视频处理功能，适用于从消费类家用音频到工业楼宇自动化及移动计算机等广泛应用。

支持高品质视频，提供全4K UltraHD分辨率和HDR (Dolby Vision、HDR10和HLG)
提供高水平的专业音频保真度，具有20多个音频通道，每个通道384KHz
DSD512音频功能
适用于无风扇运行，散热系统成本低，电池使用寿命较长
灵活的存储器选项
最新的高速接口可提供灵活连接

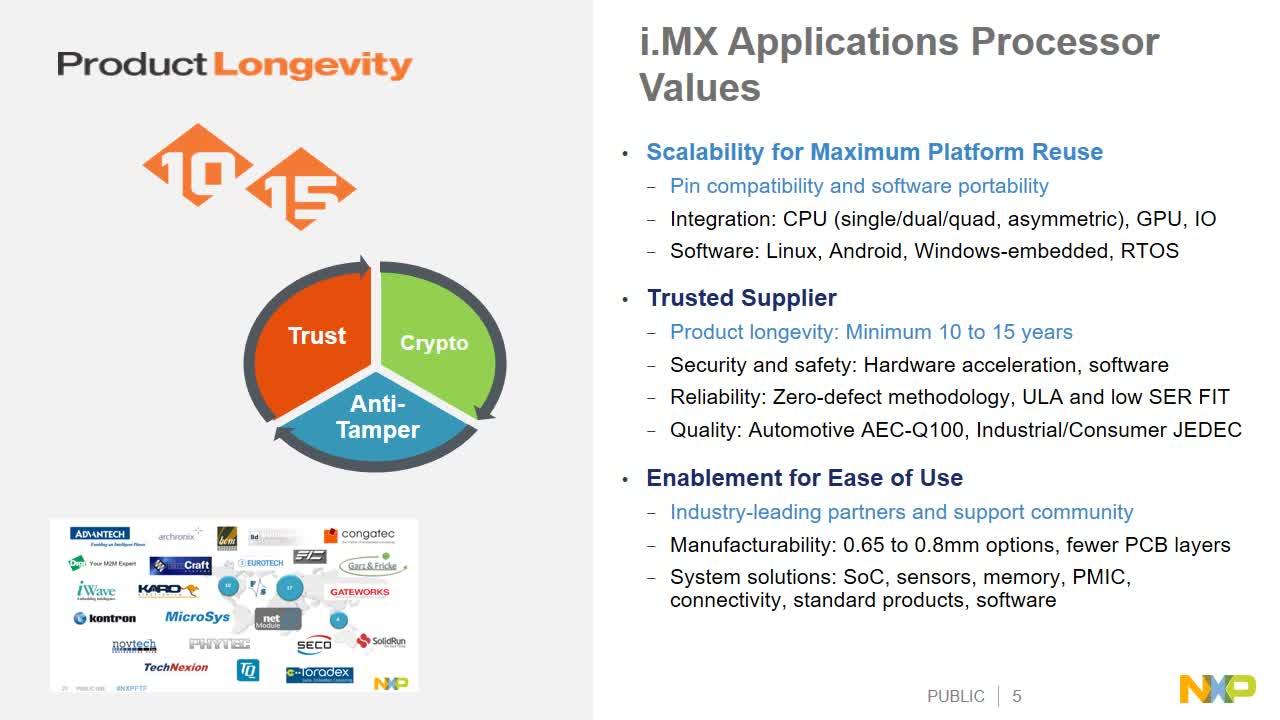

恩智浦的10年和15年产品长期供货计划提供全面支持

i.MX 8应用处理器是恩智浦EdgeVerse™ 边缘计算平台的一部分。

数据手册

参考手册

产品详情

框图

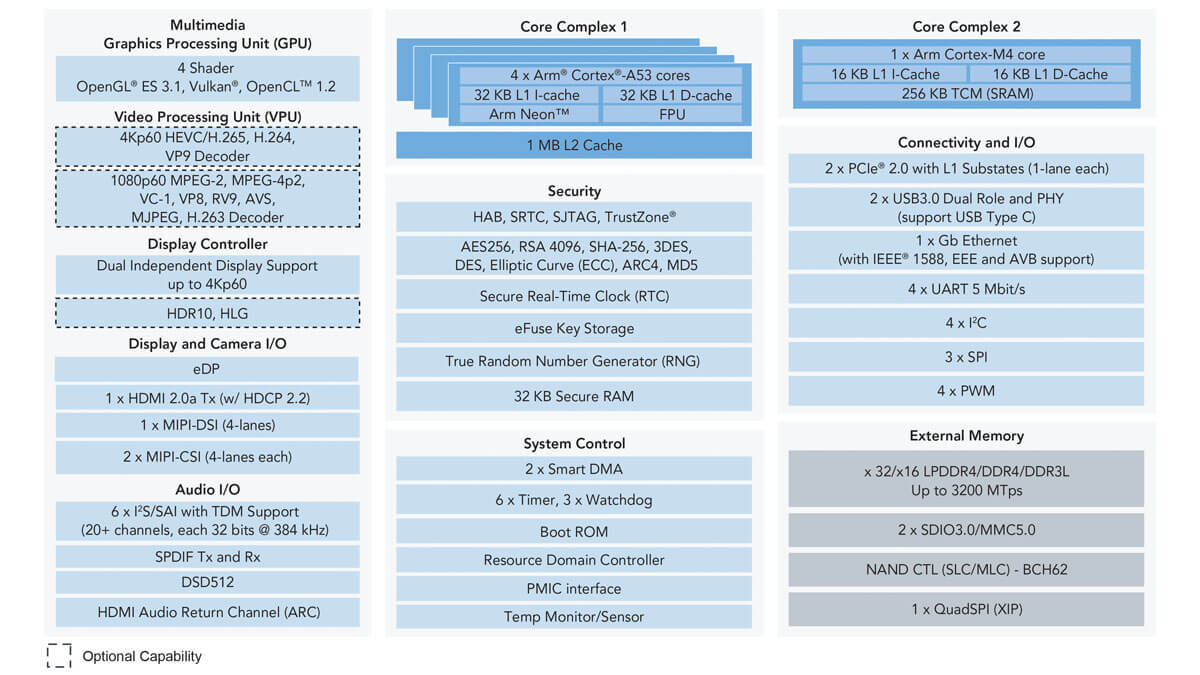

i.MX 8M Block Diagram

获取框图PDF

特征

多核处理

四核Arm Cortex-A53; Cortex-M4F

GPU

OpenGL® ES 3.1、OpenGL® 3.0、Vulkan®、Open CL™ 1.2

双独立显示接口

MIPI-DSI (4通道); HDMI 2.0a

视频播放

4Kp60高动态范围(h.265, VP9), 4Kp30 (h.264), 1080p60 (MPEG2, MPEG4p2, VC1, VP8, RV9, AVS/AVS+, h.263, DiVX), MJPEG - 8x8

音频

6个I²S/SAI (20+ 通道，每个通道32位@384 kHz)；S/PDIF Tx/Rx；DSD512

双摄像头接口

MIPI-CSI (每个4通道)

外部存储器接口

LPDDR4, DDR4, DDR3L；带XIP的Quad SPI

USB

带PHY的双USB 3.0 C型

PCIe

提供L1子状态的双PCIe，具有从低功耗模式快速唤醒功能

以太网

具有支持AVB和EEE的千兆以太网控制器

操作系统

Linux® OS、Android™、Windows 10 IoT Core、FreeRTOS®

温度

消费电子(0°C至95°C Tj)；工业控制(-40°C 至105°C Tj)

封装

FCBGA，0.65 mm间距

The i.MX 8M Dual / QuadLite / Quad applications processors, part of the EdgeLock Assurance program, are designed to meet industry standards and follows NXP's security-by-design approach.

‌ ‌ ‌	‌ ‌	‌ ‌	‌ ‌	‌ ‌	‌ ‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌

设计资源

设计文件

快速参考恩智浦设计文件类型.

2 设计文件

模型
BSDL file for i.MX 8M

BSDL版本 1Aug 6, 201968.7 KBIMX8M_BSDL

请登录
下载Toggle Dropdown
- 加入列队
- 从列队中删除
- 文档较大时推荐使用。
- 查看列队
模型
IMX8MQ-IBIS Model

ZIP版本 20180306Mar 9, 20204.93 MBIMX8MQ-IBIS

请登录
下载Toggle Dropdown
- 加入列队
- 从列队中删除
- 文档较大时推荐使用。
- 查看列队

硬件

快速参考恩智浦板类型.

4 硬件

评估板和开发板
i.MX 8M应用处理器评估套件亮点
正常供应

MCIMX8M-EVK
评估板和开发板
Ara-2 M.2 (M-Key) Module for Generative AI Workloads
试生产

ARA-2-2M-MODULE
评估板和开发板
Azurewave Wi-Fi^® 5 (802.11ac) + Bluetooth^® chipset-based M.2 evaluation board: AW-CM358MA

AW-CM358
其他可用硬件. 查看我们的精选合作伙伴解决方案.
评估板和开发板
Eval kit for JODY-W263 Wi-Fi^®/Bluetooth^® module

UB-JODY-W263

1-5 / 56 硬件

嵌入式板解决方案

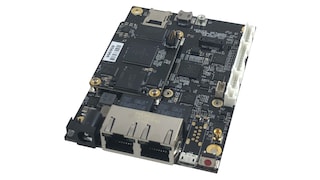

GW7201-01 i.MX 8M Mini Industrial Single Board Computer

A rugged and industrial single board computer featuring an i.MX 8M Mini quad-core CPU, dual GbE, 2 Mini-PCIe slots, USB, MicroSD & SIM, DIO, MIPI DSI & CSI, RTC, PoE, GPS...

By Gateworks Corporation Gold 合作伙伴
嵌入式板解决方案
IMX8M Mini SMARC 2.0 Module

Anita i.MX8M Mini CPU I.MX8M Mini general purpose system on module compliant with SMARC 2.0.Designed to work in Industrial, Automotive and consumer environment.

By Firstview Consultants Gold 合作伙伴
嵌入式板解决方案
phyBOARD-Polaris i.MX 8M

The phyBOARD-Polaris is a powerful single board computer for industrial use. It supports the graphic performance and multimedia features of the phyCORE-i.MX 8M System on ...

By PHYTEC Platinum 合作伙伴
嵌入式板解决方案

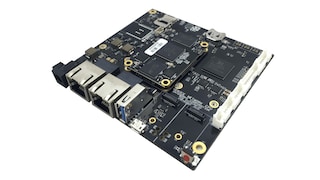

GW7301-01 i.MX 8M Mini Industrial Single Board Computer

Rugged/Industral SBC featuring i.MX 8M Mini Quad CPU with 3 Mini-PCIe slots, 2 Gigabit Ethernet Ports, I2C, DIO, USB, SPI, MIPI DSI/CSI and onboard Wi-Fi/BLE, GPS and TPM...

By Gateworks Corporation Gold 合作伙伴
嵌入式板解决方案
GW7101-21 i.MX 8M Plus Industrial Single Board Computer

Single board computer that features an i.MX 8M Plus quad core CPU, one GbE, one Mini-PCIe slot, USB, Nano SIM, DIO, SPI, UART, TPM, GPS, RTC, Passive PoE, Industrial Temp...

By Gateworks Corporation Gold 合作伙伴
嵌入式板解决方案

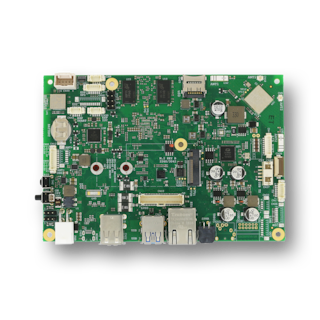

SECO SBC-3.5-MX8M

3.5” SBC with the NXP i.MX 8M Applications Processors.

By SECO Gold 合作伙伴
嵌入式板解决方案
GW7401 i.MX 8M Plus Industrial Single Board Computer

Industrial SBC featuring i.MX 8M Plus Quad ARM CPU, DDR4, 64GB eMMC, 6 GbE, 3 Mini-PCIe sockets, 1 M.2 socket, USB3.0, I2C, DIO, ADC, SPI, CAN, UART, RS232/485, RTC, MIPI...

By Gateworks Corporation Gold 合作伙伴
嵌入式板解决方案
SECO SOM-SMARC-MX8M

SMARC® Rel. 2.1.1 Computer on Module (CoM) with NXP i.MX 8M Applications Processors.

By SECO Gold 合作伙伴
嵌入式板解决方案

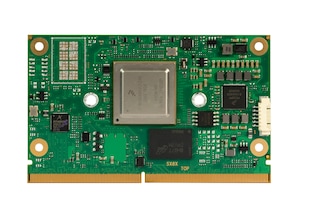

conga-SMX8-X SMARC Computer-On-Module

SMARC 2.0 module based on Ultra Low Power NXP i.MX8-X series -NXP i.MX8-X ARM Cortex-A35 and Cortex-M4F -Ultra Low Power 2-5W -Industrial grade, improved Reliability a...

By congatec Gold 合作伙伴
嵌入式板解决方案

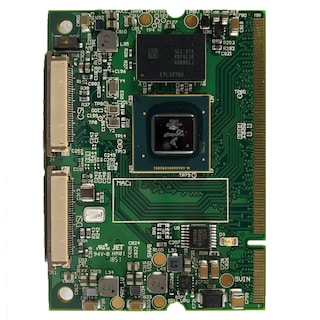

Nitrogen8M SOM

The Nitrogen8M SOM features NXP's i.MX 8M applications processor, 2GB of LPDDR4 RAM, and 8GB eMMC. Development accessories include: Carrier Board, touchscreen dis...

By Ezurio Gold 合作伙伴
嵌入式板解决方案
GW7301-21 i.MX 8M Plus Industrial Single Board Computer

Industrial SBC featuring the i.MX 8M Plus Quad CPU with three Mini-PCIe slots for Wi-Fi and Cellular flexibility. It also features Dual Gigabit Ethernet Ports, I2C, DIO, ...

By Gateworks Corporation Gold 合作伙伴
嵌入式板解决方案
i.MX 8M SMARC SOM

• i.MX 8M SoC based SMARC v2.1.1 Compatible SOM • GPU,4K VPU & 2x Display Controller support on SoC • SOM supports 2x Gbps Ethernet PHY, USB2.0 HUB, Wi-Fi5/6* & BT5.0, ...

By iWave Global Gold 合作伙伴
嵌入式板解决方案

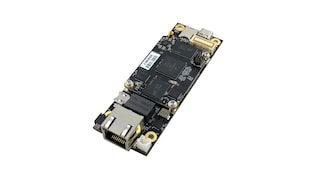

GW7101-01 i.MX 8M Mini Industrial Single Board Computer

The single board computer that features an i.MX 8M Mini quad core CPU, one GbE, one Mini-PCIe slot, USB, Nano SIM, DIO, SPI, UART, TPM, GPS, RTC, Passive PoE, Industrial ...

By Gateworks Corporation Gold 合作伙伴
嵌入式板解决方案
i.MX 8M SMARC SOM (System on Module)

The i.MX 8M Quad, Quad Lite, Dual based SMARC SOM integrates Quad/Dual Cortex A53 @ 1.5GHz, H.265 4K60 decode, 1080p encode, GC7000 Lite GPU, MIPI CSI, MIPI DSI, HDMI2.0 ...

By iWave Global Gold 合作伙伴
嵌入式板解决方案

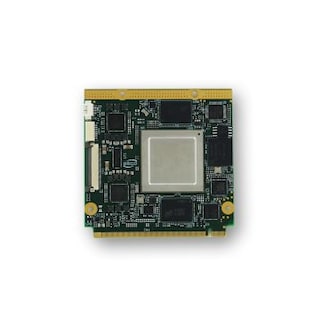

SECO SOM-Q7-MX8

Qseven® Rel. 2.1 Computer on Module (CoM) with NXP i.MX 8M Applications Processors

By SECO Gold 合作伙伴
嵌入式板解决方案

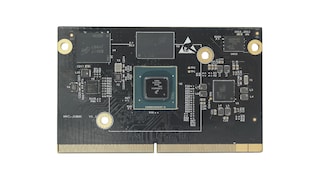

MYC-JX8MX SOM

The MYC-JX8MX CPU Module is based on NXP i.MX 8M Quad processor featuring 1.3GHz quad ARM Cortex-A53 cores and a real-time ARM Cortex-M4 co-processor. It is a minimum sys...

By MYIR Electronics Limited Gold 合作伙伴
嵌入式板解决方案

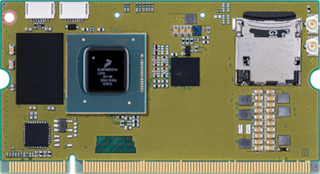

SECO SOM-Trizeps-VIII-MX8M

SODIMM-200 CPU Computer on Module (CoM) with NXP i.MX 8M Applications Processors.

By SECO Gold 合作伙伴
嵌入式板解决方案
360(AVM) ADAS APA

It provides Surround View Monitor,ADAS and automatic parking solutions.The surround-view ADAS systems offered integrate multiple ADAS functions such as LDW, BSD, and MOD ...

By Tamsong Technology Co.,LTD Gold 合作伙伴
嵌入式板解决方案

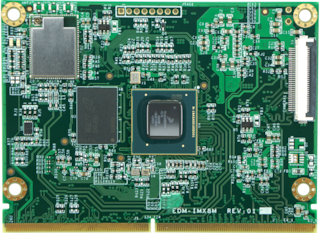

EDM-IMX8M

EDM-IMX8M is an extreme performance, low-power SoM featuring NXP i.MX8M applications processor based on ARM Cortex-A53 and Cortex-M4 architecture that provides 4K industr...

By TechNexion Ltd Gold 合作伙伴
嵌入式板解决方案
LEC-iMX8M

The LEC-iMX8M is a small size SMARC rev 2.0 module, based on NXP’s iMX-8M Quad Core ARM Cortex-A53 SoC (0.8~5W). This module offers hardware acceleration for video playba...

By ADLINK Technology, Inc. Gold 合作伙伴
嵌入式板解决方案
PICO-IMX8M

PICO System-on-Module with NXP i.MX8M with global certified Wi-Fi / Bluetooth Solution

By TechNexion Ltd Gold 合作伙伴
嵌入式板解决方案
Nitrogen8M SBC

The Nitrogen8M SBC features NXP's i.MX 8M applications processor, 2GB of LPDDR4 RAM, and 8GB eMMC. The board also comes with a dev kit, touchscreen display, and validated...

By Ezurio Gold 合作伙伴
嵌入式板解决方案
GW7200-20 i.MX 8M Plus Industrial Single Board Computer

A rugged and industrial single board computer featuring an i.MX 8M Plus quad-core CPU, dual GbE, two Mini-PCIe slots, USB, MicroSD & SIM, DIO, RTC, PoE, Industrial Temper...

By Gateworks Corporation Gold 合作伙伴
嵌入式板解决方案
phyCORE-i.MX 8M

phyCORE-i.MX 8M: NXP i.MX 8M Dual or Quad-Core @ 1.5 GHz; 55 x 40 mm dimensions; 4 GB max LPDDR4; up to 1 GB NAND or 128 GB eMMC; 4 KB I2C EEPROM; 2x Gigabit Ethernet; 2x...

By PHYTEC Platinum 合作伙伴
嵌入式板解决方案

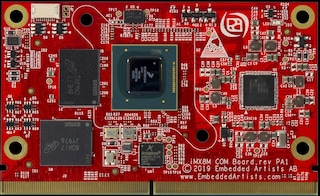

iMX8M Quad COM Board

The EA iMX8M Quad COM Board provides a quick and easy solution for implementing a high-performance ARM quad-core Cortex-A53/M4 based design. The board supports heterogene...

By Embedded Artists AB Gold 合作伙伴
嵌入式板解决方案
system on module FETMX8MQ-C

FETMX8MQ-C is a system on module designed based on NXP quad-core ARM Cortex -A53 featuring processor i.MX8MQ runs up to1.3GHz, carries on-board 2GB RAM, 8GB ROM, working ...

By Forlinx Embedded Technology Co., Ltd Gold 合作伙伴
嵌入式板解决方案

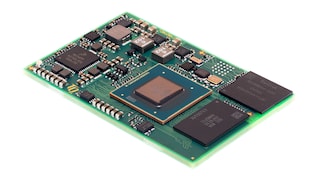

TQMa8Mx

Embedded Cortex®-A53 module based on i.MX8M with advanced audio and video features.

By TQ-Systems GmbH Platinum 合作伙伴
嵌入式板解决方案

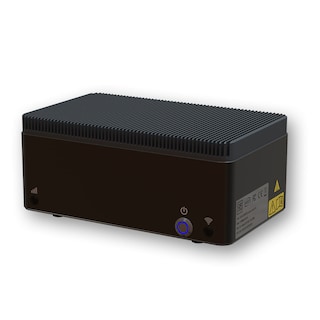

SECO Titan 210 MX8M

Fanless Embedded Computer with NXP i.MX 8M Applications Processors.

By SECO Gold 合作伙伴
嵌入式板解决方案
GW7201-21 i.MX 8M Plus Industrial Single Board Computer

A rugged and industrial single board computer featuring an i.MX 8M Plus quad-core CPU, dual GbE, 2 Mini-PCIe slots, USB, MicroSD & SIM, DIO, RTC, PoE, GPS, TPM, Industria...

By Gateworks Corporation Gold 合作伙伴
嵌入式板解决方案

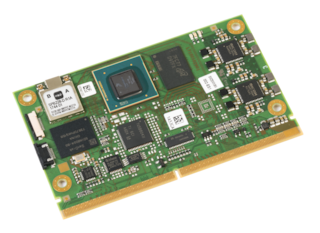

MSC SM2S-IMX8M

The new MSC SM2S-IMX8M module features NXP’s i.MX 8M processors offering dual- and quad-core ARM Cortex-A53 compute performance at very low power consumption and excellen...

By Avnet Embedded Platinum 合作伙伴
嵌入式板解决方案
Verdin iMX8M Mini

The perfect balance between performance, power and cost, the Verdin iMX8M Mini SoMs provide up to four powerful Arm 64 bit Cortex-A53 cores. The performance makes these S...

By Toradex® Platinum 合作伙伴
嵌入式板解决方案

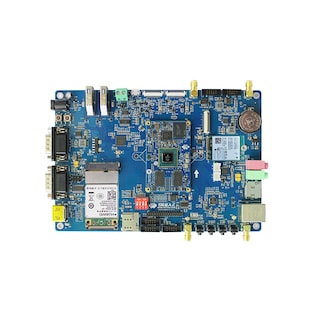

Single Board Computer OKMX8MQ-C

OKMX8MQ-C is a single board computer designed based on NXP quad-core ARM Cortex -A53 featuring processor i.MX8MQ runs up to1.3GHz, carries on-board 2GB RAM, 8GB ROM, work...

By Forlinx Embedded Technology Co., Ltd Gold 合作伙伴
嵌入式板解决方案
Atlas Scalable Edge Inference Platform

Atlas is a scalable edge inference platform that uses i.MX 8M Plus + optional GPU to support up to 23.3 TOPS of inference performance. ML/vision software, support/solutio...

By Arcturus Gold 合作伙伴
嵌入式板解决方案

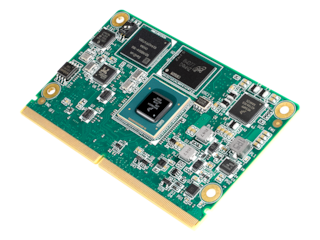

ROM-5720

Advantech ROM-5720 SMARC 2.0/2.1 Module by NXP i.MX8M up to 4 cores Arm Cortex-A53 processors in combination with one Cortex-M4 real time processor and Vivante GC7000 Lit...

By Advantech Co., Ltd. Gold 合作伙伴
嵌入式板解决方案

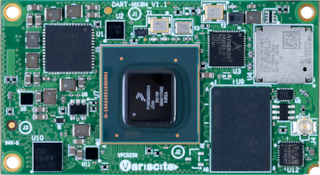

DART-MX8M System on Module

Smallest 30x55mm SoM based on i.MX 8M Quad 1.5GHz ARM Cortex-A53 + 266MHz Cortex-M4 and 3D GFX, supporting certified dual-band Wi-Fi, BT/BLE, GbE, 2x USB3, PCIe, high-qua...

By Variscite Platinum 合作伙伴
评估板和开发板
JODY-W2 EVK

Evaluation Kit for JODY-W263

By u-blox AG Gold 合作伙伴
评估板和开发板

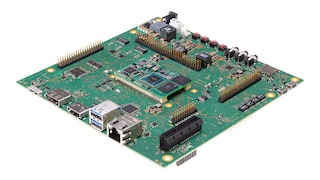

STKa8Mx

Embedded Cortex®-A53 Evaluation Board based on i.MX8M with advanced audio and video features

By TQ-Systems GmbH Platinum 合作伙伴
评估板和开发板

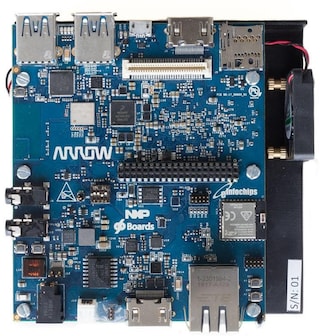

i.MX8M Thor96 HMI - 96Boards Community Platform

The Thor96 Board is a single-board computer powered by the NXP i.MX 8M SoC, incorporating a quad-core 64-bit Arm-A53, dedicated GPU and VPU, 4K support, Wi-Fi, Bluetooth ...

By eInfochips Gold 合作伙伴
评估板和开发板
i.MX 8M SMARC Development Kit

i.MX 8M Quad/QuadLite/Dual SMARC Development platform combines i.MX8M Q/QL/D SMARC SOM & compatible SMARC carrier card to validate complete i.MX8M SMARC SOM features (USB...

By iWave Global Gold 合作伙伴
硅设备/组件
Low Power DRAM

Low Power DRAM's include LPDDR, LPDDR2, LPDDR3 and LPDDR4 products

By Micron Gold 合作伙伴
硅设备/组件
uSD-M.2 Adapter: Interconnect for NXP i.MX RT/6/7/8

uSD-M.2 adapter board provides out-of-box experience for NXP i.MX with Murata’s M.2 Module Family enabled by Embedded Artists; interfacing WLAN/BT-signals including WLAN-...

By Murata Manufacturing Co., Ltd. Gold 合作伙伴
模块
TEVS-AR0234

2MP Global Shutter AR0234 MIPI-CSI2 Camera Sensor with multiple ISP pre-tuned lens options.

By TechNexion Ltd Gold 合作伙伴
模块

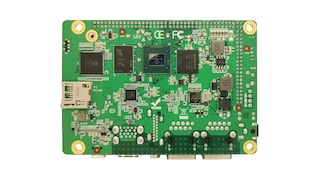

i.MX8MP SBC

Single Board Computer (SBC) with i.MX 8MP Quad A53 1.6GHz and machine learning accelerator up to 2.3 TOPS 5G support, Op. Temp -40°C ~ 85°C Expandable IO connector for c...

By Shenzhen Huameishi Tech Co., Ltd. Gold 合作伙伴
模块
MAYA-W2

Compact Wi-Fi 6 + Bluetooth 5.4 + 802.15.4 host-based multiradio modules, secure tri-radio 1/2 antenna pins, U.FL connectors or embedded antenna MAYA-W260, MAYA-W261, MA...

By u-blox AG Gold 合作伙伴
模块
MAYA-W1

Compact Wi-Fi 4 + Bluetooth 5.2 host-based multiradio modules 1 or 2 antenna pins, U.FL connectors, or embedded antenna MAYA-W160-00B, MAYA-W161-00B, MAYA-W166-00B, MAYA-...

By u-blox AG Gold 合作伙伴
模块
TEVS-AR0521

5MP rolling shutter AR0521 MIPI-CSI2 Camera Sensor with multiple ISP pre-tuned lens options.

By TechNexion Ltd Gold 合作伙伴
模块
TEVS-AR1335

13MP Rolling Shutter MIPI-CSI2 AR1335 Camera Sensor with multiple ISP pre-tuned lens options.

By TechNexion Ltd Gold 合作伙伴
模块
TEVS-AR0522

5MP rolling shutter with NIR (Near Infrared) enhancement AR0522 MIPI-CSI2 Camera Sensor and multiple ISP pre-tuned lens options.

By TechNexion Ltd Gold 合作伙伴
模块
LILY-W1

Wi-Fi module base on NXP Wi-Fi chip 88W8801

By u-blox AG Gold 合作伙伴
模块
TEVS-AR0145

1MP Global Shutter AR0145 1 MP Monochrome MIPI-CSI2 Camera Sensor with multiple ISP pre-tuned lens options.

By TechNexion Ltd Gold 合作伙伴
模块
TEVS-AR0144

1MP Global Shutter AR0144 1 MP MIPI-CSI2 Camera Sensor with multiple ISP pre-tuned lens options.

By TechNexion Ltd Gold 合作伙伴
模块
TEVS-AR0821

8MP rolling shutter AR0821 MIPI-CSI2 Camera Sensor with multiple ISP pre-tuned lens options.

By TechNexion Ltd Gold 合作伙伴
模块

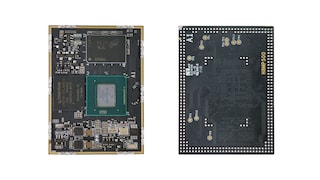

i.MX8MP SOM

High performance low power SOM with NXP i.MX 8M Plus Quad Cortex™-A53 1.6 GHz, Cortex™-M4, and machine learning accelerator up to 2.3 TOPS.

By Shenzhen Huameishi Tech Co., Ltd. Gold 合作伙伴
模块
TEVS-AR0822

8MP rolling shutter with NIR (Near Infrared) enhancement AR0822 MIPI-CSI2 Camera Sensor and multiple ISP pre-tuned lens options.

By TechNexion Ltd Gold 合作伙伴
模块
PIXI-IW416

NXP IW416 Wi-Fi 4 and Bluetooth 5.2 M2. 1216 Module

By TechNexion Ltd Gold 合作伙伴
模块

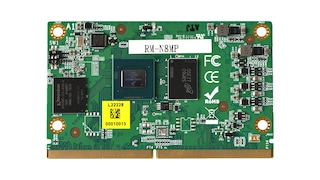

i.MX8MP SMARC 2.0 module

High performance SMARC 2.0 module with NXP i.MX8MP 1.8 GHz Processor, supporting wide range operation temperature

By Shenzhen Huameishi Tech Co., Ltd. Gold 合作伙伴
