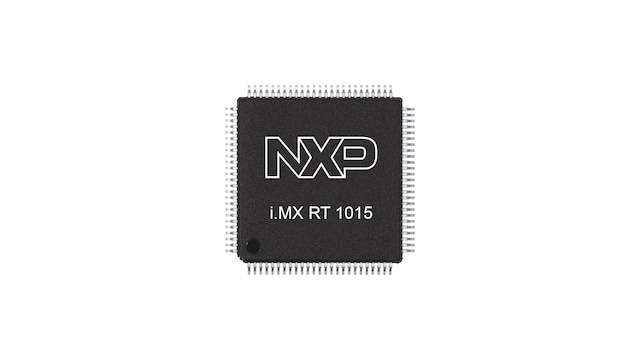

i.MX RT1015|跨界MCU，配备Arm®Cortex®-M7内核，运行频率为500MHz

i.MX-RT1015 正常供应

滚动图片以放大

i.MX RT1015跨界MCU基于Arm®Cortex®-M7内核，具有实时性能和高集成功能，适用于低成本的工业和物联网应用。

i.MX RT1015 CM7运行频率高达500MHz，内置128KB片上RAM，可配置为TCM或通用存储器使用。该系列提供各种存储器接口和丰富的连接接口，包括UART、SPI、I²C和USB。100个LQFP封装，可实现低成本PCB设计。

i.MX RT1015系列由MCUXpresso生态合作体系支持，其中包括SDK、IDE选项以及安全配置和配置工具，可实现快速开发。

框图

i.MX RT1015结构框图

i.MX RT1015 Crossover MCU
获取框图PDF

特性

  • Arm®Cortex®-M7频率高达500MHz，具有16KB/16KB I/D缓存
  • 2517 CoreMark/1070 DMIPS @ 500MHz
  • 实时低延迟响应，低至20ns
  • MCUXpresso生态合作体系支持
    • IDE选项的选择
    • 引脚、时钟、外设、安全和内存配置工具
    • 安全编程和配置工具
    • 软件开发套件
  • 支持Zephyr实时操作系统(RTOS)
  • 通过集成DC-DC转换器实现行业最低的动态功耗
  • 低功耗运行模式下运行频率为24MHz
  • 外部存储接口选项
    • QuadSPI NOR闪存
  • 无线连接接口：
    • Wi-Fi®、蓝牙、低功耗蓝牙、Zigbee®和Thread™
  • 面向低成本PCU设计的100LQFP封装

购买/参数

‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
