QorIQ® T2080和T2081多核通信处理器

T2080
正常供应
恩智浦优先级支持 - 帮助您更快地进入市场

点击播放视频

采用28 nm工艺的QorIQ T2080和T2081通信处理器是配备8个虚拟内核的中端平台，它们融合了T系列旗舰产品T4240的架构创新，如1.8 GHz双线程e6500内核，并具备更低的功耗和价格。

T2080处理器是继恩智浦成功推出P3041和P2041中端系列四核器件后的又一力作，主要用作控制平面或集成的控制和数据平面处理器。它是出色的升级产品，将内核处理能力、缓存大小、SerDes带宽和以太网连接性能提高了两倍以上，同时功耗处于相近的水平。它还为P4080用户提供了一个非常有价值工程设计机遇，因为T2080在提供同等性能的同时，价格和功耗更低。

T2081是T2080的小尺寸版本，与四核的T1042引脚兼容。这就使T1042用户能够在处理需求增加的时候轻松升级产品性能。同时，用户还可以在两种不同性能水平的产品中使用相同的电路板。

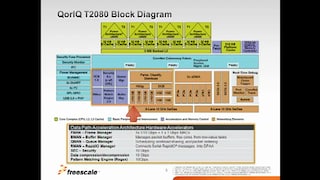

框图

T2080 BD IMG

QorIQ T2080 Communication Processor
获取框图PDF

特征

内核复合体

  • 4个双线程e6500内核，基于Power Architecture®技术。
    • 每个内核高达1.8 GHz，6.0 DMIPS/MHz
    • 共享一个2 MB L2缓存
    • 指令有3个等级：用户、超级用户、管理程序
    • 混合32位模式，支持原有软件，并可向64位架构平稳过渡
    • 高级电源管理功能具有节能模式，包括在电源门控时进行状态保持

基本外设和互连

  • CoreNet®平台缓存
  • 分层互连结构
    • CoreNet结构支持相干和非相干事务，在CoreNet端点之间进行优先级排序和带宽分配
  • 附加的外设接口
    • 两个高速USB 2.0控制器，带有集成PHY
    • 增强型安全数字主机控制器(SD/MMC/eMMC)
    • 增强型串行外设接口(eSPI)
    • 4个I²C控制器
    • 4个UART
    • 支持NAND与NOR闪存的集成闪存控制器

加速器和存储控制器

  • 64位DDR3L/3L SDRAM存储控制器，带有ECC支持
    • 高达2.1 GT/s
    • 存储器预取引擎
  • DPAA包含加速特性，适用于以下功能
    • 数据包解析、分类和分发，高达24Gb/s (FMAN)
    • 队列管理，用于调度、数据包排序和阻塞管理，高达2^24个队列(QMAN)
    • 支持硬件缓冲管理，可缓冲分配和取消分配，具有64个缓冲池(BMAN)
    • 集成安全加速(SEC)，高达10 Gbps
    • 解压/压缩加速，高达17.5 Gbps (DCE)
    • 签名检测(PME)，高达10Gb/s
    • 带DPAA支持的RapidIO®消息传递(RMAN)(仅T2080)

网络元件

  • SerDes
    • 8通道，高达10GHz
    • 8通道，高达8GHz (仅T2080)
  • 以太网接口：8个MAC (T2081上为7个)多路复用以下选件
    • 多达4个10 Gb/s MAC，支持XFI/KR、XAUI和HiGig (T2081上为两个，仅支持XFI/KR)
    • 高达8个SGMII (T2080上有5个)
    • 多达4个2.5Gb/s SGMII
    • 多达两个RGMII
  • 高速外设接口
    • 两个PCI Express 3.0控制器(T2081上为1个)
    • 两个PCI Express 2.0控制器(T2081上为3个)
    • 端点SR-IOV
    • 两个串行RapidIO® 2.1控制器/端口，运行频率高达5 GHz，支持9和11类消息传递(仅T2080)
    • 两个串行ATA (SATA) 2.0控制器(仅T2080)
  • DMA
    • 两个8通道

其他特性

  • 支持硬件虚拟化和分区执行
    • 额外特权等级，用于支持管理程序
    • 逻辑地址到实际地址的转换(LRAT)
    • 虚拟内核感知MMU/TLB
    • vMPIC (虚拟中断控制器)/支持虚拟内核的PPC内核
    • vDMA (用户级DMA引擎)
    • PAMUv2 (I/O MMU支持寻呼)
    • DPAA (以太网MAC虚拟化，加速器虚拟化)
  • 可信架构安全引导
    • 安全引导、安全调试、篡改检测、易失性密钥存储、替代映像和密钥撤销
  • 本产品包含在恩智浦产品长期供货计划中，自推出后至少保证10年供货

更多

对比表

T2080 T2081
SerDes 16 8
PCIe 2x Gen3 + 2x Gen2 1x Gen3 + 3x Gen2
SRIO 2 + RMan 无
SATA 2 无
Aurora 有 无
10Gbps MAC 多达4个，支持XFI、XAUI和HiGig 多达两个，支持XFI
1 Gbps MAC 多达8个 多达7个
封装 25 x 25 mm、896引脚、0.8mm间距 23 x 23 mm、780引脚、0.8mm间距，与T1042引脚兼容

购买/参数

1-10 / 49 结果

包含 0 不推荐用于新设计

部件

展开描述

订购

计算机辅助设计模型

状态

预算报价（不含税）

封装类型

封装端接数

内核：内核数量(规范值)

内核类型

运行频率[最高]（MHz）

Junction Temperature (Min to Max) (℃)

L2 Cache (Max) (KB)

L3 Cache (Max) (KB)

以太网类型

PCIe

支持外部存储器

T2080NSE8MQB
数据手册

正常供应

100 @ CNY1108.95

FBGA896

896

8

e6500

1200

0 to 105

2000

512

RGMII, SGMII, XAUI

4

DDR3 SDRAM, DDR3L SDRAM, SDRAM

T2080NSE8MQLB
数据手册

正常供应

100 @ CNY1164.31

FBGA896

896

8

e6500

1200

0 to 105

2000

512

RGMII, SGMII, XAUI

4

DDR3L SDRAM

T2080NSE8P1B
数据手册

正常供应

100 @ CNY1465.87

FBGA896

896

8

e6500

1533

0 to 105

2000

512

RGMII, SGMII, XAUI

4

DDR3L SDRAM

T2080NSE8PTB
数据手册

正常供应

100 @ CNY1274.52

FBGA896

896

8

e6500

1533

0 to 105

2000

512

RGMII, SGMII, XAUI

4

DDR3 SDRAM, DDR3L SDRAM, SDRAM

T2080NSE8T1B
数据手册

正常供应

100 @ CNY1905.36

FBGA896

896

8

e6500

1800

0 to 105

2000

512

RGMII, SGMII, XAUI

4

DDR3L SDRAM

T2080NSE8TTB
数据手册

正常供应

100 @ CNY1656.86

FBGA896

896

8

e6500

1800

0 to 105

2000

512

RGMII, SGMII, XAUI

4

DDR3 SDRAM, DDR3L SDRAM, SDRAM

T2080NSN8MQB
数据手册

正常供应

100 @ CNY1075.64

FBGA896

896

8

e6500

1200

0 to 105

2000

512

RGMII, SGMII, XAUI

4

DDR3 SDRAM, DDR3L SDRAM, SDRAM

T2080NSN8MQLB
数据手册

正常供应

100 @ CNY1129.34

FBGA896

896

8

e6500

1200

0 to 105

2000

512

RGMII, SGMII, XAUI

4

DDR3L SDRAM

T2080NSN8P1B
数据手册

正常供应

100 @ CNY1421.86

FBGA896

896

8

e6500

1533

0 to 105

2000

512

RGMII, SGMII, XAUI

4

DDR3L SDRAM

T2080NSN8PTB
数据手册

正常供应

100 @ CNY1236.40

FBGA896

896

8

e6500

1533

0 to 105

2000

512

RGMII, SGMII, XAUI

4

DDR3 SDRAM, DDR3L SDRAM, SDRAM
