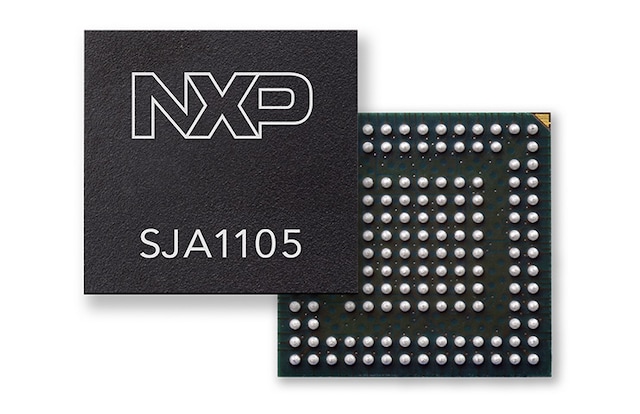

SJA1105PEL/QEL/REL/SEL系列以太网交换机

SJA1105PQRS 正常供应

滚动图片以放大

SJA1105PEL/QEL/REL/SEL汽车千兆以太网交换机系列扩展了SJA1105EL/TEL交换机的功能，提升了安全特性，扩展了接口选项。

  • 新的帧列表特性将交换机数据处理限制在已知源内，可防止转发错误或恶意数据。
  • 更新后的接口提供了IO扩展电压选项和新的SGMII接口。
  • 该交换机符合IEEE AVB。QEL和SEL版本支持扩展的TSN特性。
  • 恩智浦原装AUTOSAR驱动程序和AVB软件栈适用于本系列。

产品详情

特性

基于帧头的安全特性

  • 根据具体帧头值划分的帧黑名单和白名单
  • 防止转发错误或恶意数据
  • 支持实施防火墙应用

5个可单独配置的端口，带有扩展IO选项

  • 广泛的数据传输速率，可优化PCB设计
  • SGMII选项用于EMC友好型千兆接口
  • 可灵活地连接10/100/1000 BASE-T1/TX光PHY

全面支持音视频桥接和时间同步

  • 实施完全同步的网络
  • 支持汽车领域大多数AVB/TSN特性
  • 由恩智浦或第三方软件供应商提供的AVB软件
