以太网交换机和 PHY 评估板

SJA1105Q-EVB 正常供应

滚动图片以放大

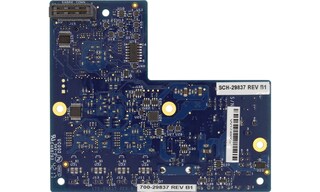

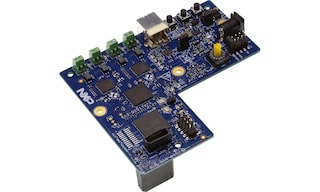

The SJA1105Q-EVB is an evaluation system that supports the SJA1105P/Q/R/S Automotive Ethernet switch family in conjunction with the TJA1102HN Ethernet PHY Transceiver.

The board enables the evaluation of the features common to the four SJA1105P/Q/R/S switch variants and facilitates the early development of the software required for the switch applications.

The board further implements the OPEN Alliance TC10 Wake-up Forwarding feature supported by the TJA1102 dual 100BASE-T1 PHY. Finally the board also supports a male connector capable of mating with NXP processor motherboards such as i.MX 6, i.MX 8 and S32x processors families.

产品详情

特征

处理器

  • Connect to i.MX 6, i.MX 8 and S32x processor evaluation boards

数据连接

  • Directly connect to PC via USB
  • Enabled fast prototyping of ECUs
  • Show all features of SJA1105P/Q/R/S series (with exception of SGMII)
  • Compatible with OPEN Alliance TC10 Wake Up feature
  • Software and documentation are available on docstore.nxp.com/SJA1105Q-EVB (NDA required)

购买选项

SJA1105Q-EVB-Image

点击展开

  • SJA1105Q-EVB
    正常供应

  • Ethernet Switch and PHY Evaluation Board.

    • 1x SJA1105Q-EVB Board
    • 1x USB cable
    • 1个AC适配器
  • CNY 4,305.98
  • 数量为 1
    • 供货情况: 现货
    • 库存: 8
    • 配送: 正常情况下 1-2个工作日内发货
