SJA1105EL：5端口AVB汽车以太网交换机

SJA1105EL 建议不要在新设计中使用该软件

滚动图片以放大

SJA1105EL以太网交换机提供灵活的解决方案，可实现模块化和成本优化的ECU，能够支持任何车载连接要求。

通过利用5Gbps交换吞吐量，每个SJA1105EL端口可以采用10、100和1000Mbps的数据传输速率独立运行。所有端口上的标准接口可轻松连接任何类型的以太网PHY。例如恩智浦的TJA1100、光收发器或用于诊断应用和工业自动化市场的通用10/100/1000BASE-TX PHY。SJA1105EL完全支持音视频桥接等关键汽车标准，并提供先进的汽车诊断。

产品详情

特性

5个可单独配置的端口，每个端口能够以10/100/1000Mbps速率运行

  • 支持任何10/100/1000 BASE-TX PHY的灵活ECU设计
  • 5Gbps吞吐量在所有端口上实现非阻塞1Gbps数据传输速率
  • ECU能够从100Mbps轻松更新到1000Mbps
  • MII/RMII/RGMII接口可用于所有端口
  • 支持可扩展且高性价比的ECU设计，在此设计中，一个外部主机可控制多达4个级联交换机

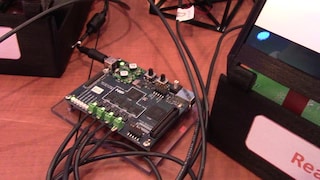

完全支持音视频桥接(AVB)和IEEE1588v2标准

  • 实施完全同步的网络
  • 由恩智浦或第三方软件供应商提供的AVB软件
  • 支持工业应用中基于硬件的同步

基于IEEE802.1X端口的身份验证和数据传输速率监测。拒绝服务保护。

  • 通过以太网实现器件身份验证
  • 阻止拒绝服务攻击和愚蠢的白痴错误

流量镜像和灵活的VLAN操作

  • 实现强大的网络调试功能
  • 通过专用VLAN标记实现此类流量的诊断和流量标签功能
