NXP Software Development Kit for Find My Network

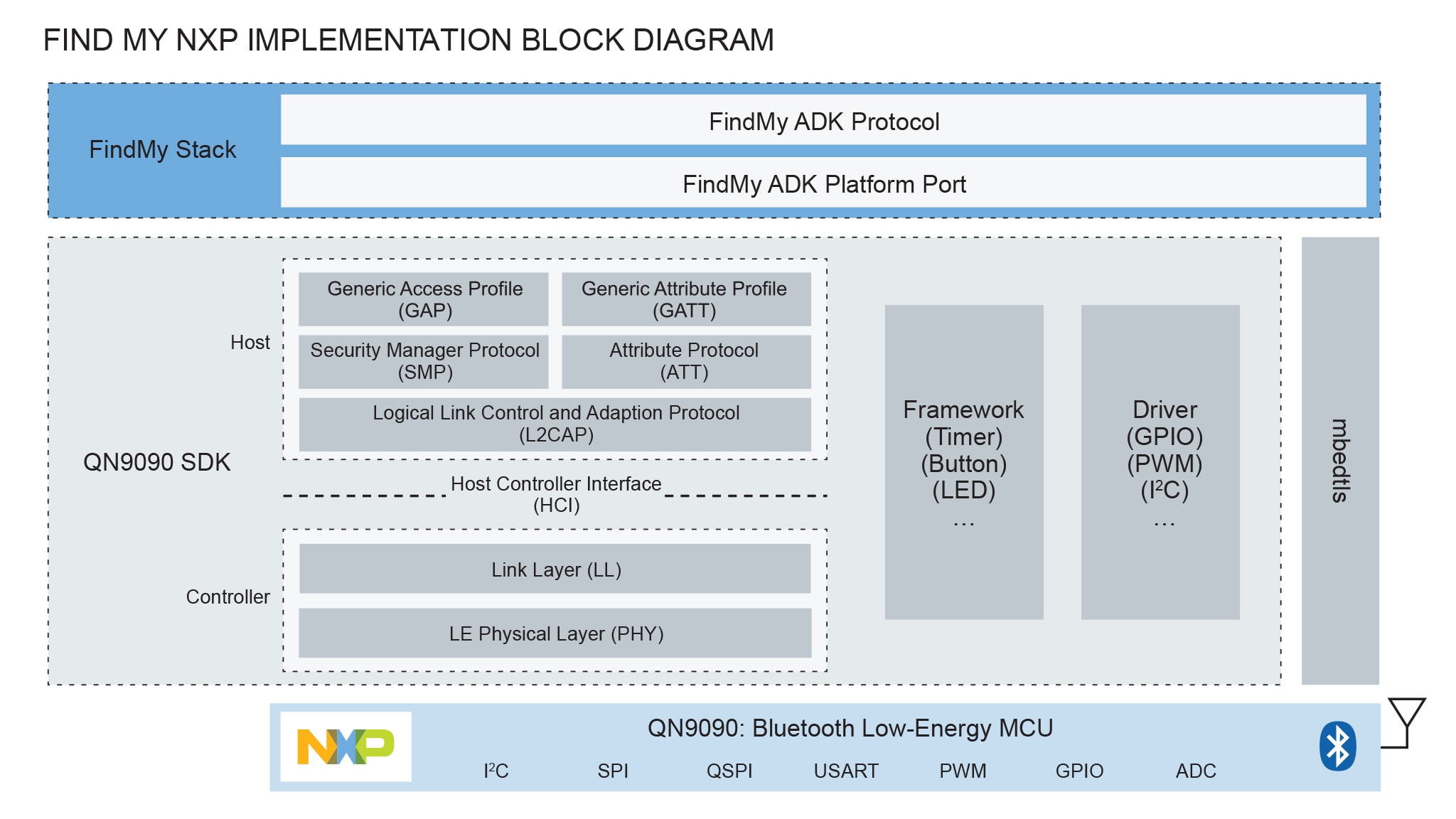

The Find My Network (FMN) Software Development Kit (SDK) from NXP offers a tracking solution using the Apple Find My network (FMN) technology and Bluetooth® Low Energy connectivity. This FMN solution is architected for NXP QN9090 microcontrollers (MCU) with integrated Bluetooth Low Energy connectivity for easy configuration including full documentation and supporting utilities. In addition, the FXLS8967AF low power accelerometer is used to detect motion to implement the required unwanted tracking functionality. The FXLS8967AF development board can easily be connected to the QN9090 EVK using the on board Arduino® header.
The FMN SDK from NXP is suitable for standalone tracking devices and tracking functionality integrated in a product, as for example a power tool. Please contact NXP for implementation options on other NXP devices with integrated Bluetooth Low Energy connectivity.
For additional information, please contact Mike.Toh@nxp.com .
The FMN SDK is only available to valid and verified MFi licensees included on Apple’s Find My network accessory program.
软件详情
Hardware
Features
- Certified Find My network software
- Easy configuration setup - download, program, and run
- Free cryptographic library with mbedTLS
- Script included to format binary token for embedded flash
- Fully customizable GATT table to add other Bluetooth Low Energy services
支持的器件
- QN9090-30: QN9090/30(T): Bluetooth LE MCU带有Arm®Cortex®-M4 CPU, 高能效的模数外设以及NFC标签选项
- FXLS8967AF: ±2g/±4g/±8g/±16g，12位低功耗数字加速度传感器
