完全认证的模块，支持蓝牙和NFC

QN9080SIP
停产

QN9080-001-M17是一个完全通过认证的模块，支持Bluetooth® 5和NFC。它功耗极低，集成度较高，提供丰富的功能集，并通过了FCC/CE/IC/MIC认证。

该模块基于QN9080 Bluetooth MCU，配有Arm® Cortex®-M4F内核，并集成了一个专用融合传感器协处理器(FSP)。具有512 KB板载闪存和128 KB SRAM，提供充足的空间和较高的灵活性，支持复杂的应用和连接协议栈。

它还集成了NFC NTAG、32 MHz和32 kHz晶体、RF匹配和2.4 GHz天线，为需要低功耗蓝牙无线连接和与NFC NTAG简单配对的应用提供完整且随时可用的解决方案。

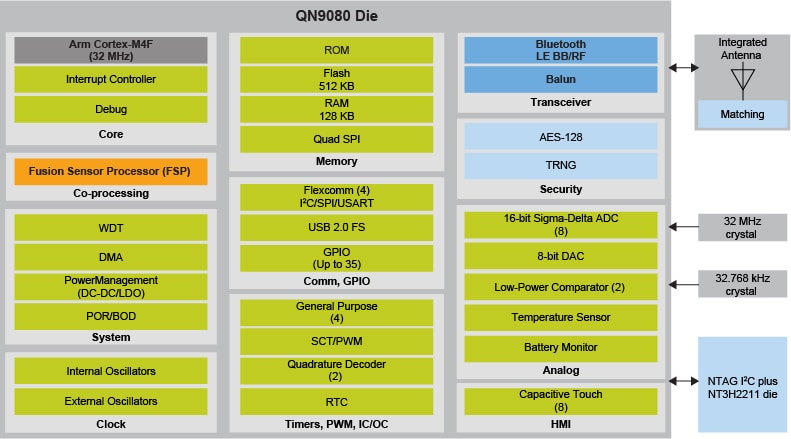

框图

QN9080SIP Block Diagram

QN9080SIP Block Diagram
获取框图PDF

特征

BLE无线电功能

  • 接收灵敏度：92.7 dB。
  • 发射输出功率：-20 dBm至+2 dBm。
  • LE 2M PHY支持Bluetooth 5，可支持多达16个并发链路。

NTAG特性

  • 符合ISO/IEC 14443第2和第3部分
  • NTAG I2C +开发板通过了NFC Forum Type 2 Tag认证
  • (认证ID: 58514)

内核和存储器

  • 32 MHz Cortex–M4F内核，512KB闪存，128 KB SRAM
  • 32 MHz融合传感器处理器(FSP)
  • 512 KB闪存，128 KB RAM

功耗低，工作电压范围

  • 0dBm发射功率时发射电流为3.5 mA
  • 4.0 mA接收电流
  • 工作电压：1.67至3.6V

数字和模拟外设

  • 2个UART/SPI/I2C，1个全速USB 2.0
  • 8通道16位Σ△ADC，8位DAC带1Msps，2个超低功耗比较器
  • 4个通用定时器，SCT/PWM
  • 8通道电容式触摸板
  • 面向XIP的Quad-SPI
  • 温度传感器

易于设计

  • 内置32 MHz和32.768 kHz晶体
  • 集成2.4 GHz天线
  • 经过了FCC/CE/IC/MIC认证。
