FlexRay通信控制器

MFR4310 使用寿命终止

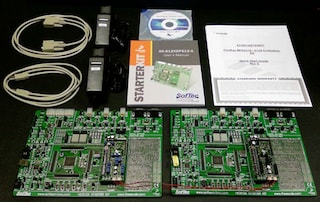

滚动图片以放大

FlexRay™网络是下一代汽车通信协议，具有高带宽、确定性和容错等特性。

恩智浦MFR4310独立式FlexRay控制器使FlexRay轻松集成到基于MCU的应用中，无需采用嵌入式FlexRay控制器。

  • 为高级汽车应用提供高速的确定性分布式控制
  • 可与S12X系列16位MCU产品及MPC500和MPC5500系列的32位MCU产品直接通信。
  • 提供全系统冗余，满足新安全系统的可靠性要求
  • 符合FlexRay联盟规范v2.1A

框图

MFR4310BLKDIAG

获取框图PDF

特征

  • 符合FlexRay通信系统协议规范V2.1A
  • 支持可变比特率：2.5、5、8和10 Mb/s
  • 128个可配置消息缓冲区
  • 消息缓冲报头、状态和净荷数据储存在6 KB的片上系统存储器中
  • 两个独立的消息缓冲区段，净荷数据段规格可配置
  • 传输消息缓冲可配置，具有状态/事件语义
  • 支持逐个消息缓冲再配置
  • 两个独立的接收FIFO
  • 4个可配置的插槽错误计数器
  • 4个专用插槽状态指示器
  • 1个绝对定时器
  • 1个可配置为绝对或相对的定时器

购买/参数

‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
N true 0 PSPMFR4310zh 20 勘误表 Errata t522 3 可靠性与质量信息 Reliability and Quality Information t791 1 培训资料 Training Presentation t878 2 工程设计要点 Technical Notes t521 3 应用笔记 Application Note t789 5 手册 Brochure t518 1 支持信息 Supporting Information t531 1 数据手册 Data Sheet t520 1 简介 Fact Sheet t523 3 zh 2 1 MFR4310E1MAE40 2 English The MFR4310 FlexRay Communication Controller implements the FlexRay protocol according to the FlexRay Communications System Protocol Specification V2.1A. The controller host interface (CHI) of the MFR4310 FlexRay Communication Controller is complemented in accordance with Chapter 3, “FlexRay Module (FLEXRAYV4)” of this reference manual. 1178916015486707443363 PSP 1.8 MB None None documents None 1178916015486707443363 /docs/en/data-sheet/MFR4310RM.pdf 1772409 /docs/en/data-sheet/MFR4310RM.pdf MFR4310RM N 2007-05-14 MFR4310 FlexRay Communication Controllers - Data Sheet /docs/en/data-sheet/MFR4310RM.pdf /docs/en/data-sheet/MFR4310RM.pdf Data Sheet N Y 980000996212993340 2022-12-07 pdf en Mar 28, 2008 Data Sheet t520 数据手册 Data Sheet Y N MFR4310 FlexRay Communication Controllers - Data Sheet 2 0 English 1189694736965720389847 PSP 92.8 KB None None documents None 1189694736965720389847 /docs/en/fact-sheet/MFR4310FS.pdf 92814 /docs/en/fact-sheet/MFR4310FS.pdf MFR4310FS N 2007-09-13 MFR4310 Fact Sheet NXP’s Stand-Alone FlexRayTM Controller /docs/en/fact-sheet/MFR4310FS.pdf /docs/en/fact-sheet/MFR4310FS.pdf Fact Sheet N Y 736675474163315314 2022-12-07 pdf en May 23, 2007 Fact Sheet t523 简介 Fact Sheet Y N MFR4310 Fact Sheet NXP’s Stand-Alone FlexRayTM Controller false zh zh 应用笔记 Application Note 5 3 3 English NXP Semiconductors offers a range of standalone FlexRay communication controllers (MFR4xxx) that can be interfaced with 16-bit and 32-bit microcontrollers (MCU). This application note describes the hardware, software and timing considerations necessary for reliable communication between the MFR4310 controller and the MPC55xx family of MCUs. 1155716615523740341986 PSP 87.7 KB None None documents None 1155716615523740341986 /docs/en/application-note/AN3269.pdf 87694 /docs/en/application-note/AN3269.pdf AN3269 documents N 2006-08-16 Interfacing MPC5500 Microcontrollers to the MFR4310 FlexRay Controller /docs/en/application-note/AN3269.pdf /docs/en/application-note/AN3269.pdf Application Note N 645036621402383989 2022-12-07 pdf en Feb 10, 2010 645036621402383989 Application Note Y N Interfacing MPC5500 Microcontrollers to the MFR4310 FlexRay Controller 4 2 English NXP Semiconductors offers a range of standalone FlexRay communication controllers (MFR4xxx) that can be interfaced with 16-bit and 32-bit microcontrollers (MCU). This application note describes the hardware, software and timing considerations necessary for reliable communication between the MFR4310 controller and the MPC5xx family of MCUs. 1155716612112700524031 PSP 68.4 KB None None documents None 1155716612112700524031 /docs/en/application-note/AN3256.pdf 68423 /docs/en/application-note/AN3256.pdf AN3256 documents N 2006-08-16 Interfacing MPC5xx Microcontrollers to the MFR4310 FlexRay Controller /docs/en/application-note/AN3256.pdf /docs/en/application-note/AN3256.pdf Application Note N 645036621402383989 2022-12-07 pdf en Feb 21, 2008 645036621402383989 Application Note Y N Interfacing MPC5xx Microcontrollers to the MFR4310 FlexRay Controller 5 1 English 1155714648966715368907 PSP 433.9 KB None None documents None 1155714648966715368907 /docs/en/application-note/AN3271.pdf 433865 /docs/en/application-note/AN3271.pdf AN3271 documents N 2006-08-16 Migrating from MFR4200 to MFR4310 /docs/en/application-note/AN3271.pdf /docs/en/application-note/AN3271.pdf Application Note N 645036621402383989 2022-12-07 pdf en May 14, 2007 645036621402383989 Application Note Y N Migrating from MFR4200 to MFR4310 6 1 English 1155715697341712798177 PSP 137.0 KB None None documents None 1155715697341712798177 /docs/en/application-note/AN3260.pdf 137012 /docs/en/application-note/AN3260.pdf AN3260 documents N 2006-08-16 Interfacing HCS12 Microcontrollers to the MFR4310 FlexRay Controller /docs/en/application-note/AN3260.pdf /docs/en/application-note/AN3260.pdf Application Note N 645036621402383989 2022-12-07 pdf en May 14, 2007 645036621402383989 Application Note Y N Interfacing HCS12 Microcontrollers to the MFR4310 FlexRay Controller 7 1 English 1155716614288721483497 PSP 134.3 KB None None documents None 1155716614288721483497 /docs/en/application-note/AN3265.pdf 134299 /docs/en/application-note/AN3265.pdf AN3265 documents N 2006-08-16 Incorporating an MFR4310 Node in an MFR4200 Network /docs/en/application-note/AN3265.pdf /docs/en/application-note/AN3265.pdf Application Note N 645036621402383989 2022-12-07 pdf en May 14, 2007 645036621402383989 Application Note Y N Incorporating an MFR4310 Node in an MFR4200 Network 手册 Brochure 1 8 0 English This brochure is an educational piece on Our LIN, CAN, FlexRay, and RF offerings in microcontrollers and analog. 1165514420451715669536 PSP 677.6 KB None None documents None 1165514420451715669536 /docs/en/brochure/BRINVEHICLENET.pdf 677604 /docs/en/brochure/BRINVEHICLENET.pdf BRINVEHICLENET documents N N 2016-10-31 Automotive In-Vehicle Networking Brochure /docs/en/brochure/BRINVEHICLENET.pdf /docs/en/brochure/BRINVEHICLENET.pdf Brochure N 712453003803778552 2022-12-07 pdf N en Dec 7, 2006 712453003803778552 Brochure Y N Automotive In-Vehicle Networking Brochure 工程设计要点 Technical Notes 3 9 1 English 1308000823073705804198 PSP 212.1 KB None None documents None 1308000823073705804198 /docs/en/engineering-bulletin/EB747.pdf 212053 /docs/en/engineering-bulletin/EB747.pdf EB747 documents N N 2011-06-14 FlexRay Protocol Command Status /docs/en/engineering-bulletin/EB747.pdf /docs/en/engineering-bulletin/EB747.pdf Technical Notes N 389245547230346745 2022-12-07 pdf N en Jun 15, 2011 389245547230346745 Technical Notes Y N FlexRay Protocol Command Status 10 0 English This document describes the configuration of the timeout value in System Memory Access Time-Out Register. 1256310365526710589681 PSP 59.9 KB None None documents None 1256310365526710589681 /docs/en/engineering-bulletin/EB722.pdf 59852 /docs/en/engineering-bulletin/EB722.pdf EB722 documents N 2009-10-23 Configuration of FlexRay Controller System Memory Access Timeout Value /docs/en/engineering-bulletin/EB722.pdf /docs/en/engineering-bulletin/EB722.pdf Technical Notes N 389245547230346745 2022-12-07 pdf en Oct 23, 2009 389245547230346745 Technical Notes Y N Configuration of FlexRay Controller System Memory Access Timeout Value 11 0 English This document highlights differences between the
MFR4310 and MFR4300 devices. Information about
fixed bugs and issues reported for the MFR4300 is
outside of the scope of this document. 1179871025165705427904 PSP 207.8 KB None None documents None 1179871025165705427904 /docs/en/engineering-bulletin/EB683.pdf 207789 /docs/en/engineering-bulletin/EB683.pdf EB683 documents N 2007-05-22 MFR4310 and MFR4300 Differences /docs/en/engineering-bulletin/EB683.pdf /docs/en/engineering-bulletin/EB683.pdf Technical Notes N 389245547230346745 2022-12-07 pdf en May 22, 2007 389245547230346745 Technical Notes Y N MFR4310 and MFR4300 Differences 勘误表 Errata 3 12 - English 1182336090979708282980 PSP 8.5 KB None None documents None 1182336090979708282980 /docs/en/errata/MSEPFR4310MAE40_1M63J.htm 8477 /docs/en/errata/MSEPFR4310MAE40_1M63J.htm MSEPFR4310MAE40_1M63J documents N 2007-06-20 MSEPFR4310MAE40_1M63J Mask Set Errata /docs/en/errata/MSEPFR4310MAE40_1M63J.htm /docs/en/errata/MSEPFR4310MAE40_1M63J.htm Errata N 155452329886410597 2022-12-07 htm en Aug 12, 2008 155452329886410597 Errata Y N MSEPFR4310MAE40_1M63J Mask Set Errata 13 - English 1179416561230727247378 PSP 12.0 KB None None documents None 1179416561230727247378 /docs/en/errata/MSEPFR4310MAE40_0M63J.htm 11990 /docs/en/errata/MSEPFR4310MAE40_0M63J.htm MSEPFR4310MAE40_0M63J documents N 2007-05-17 MSEPFR4310MAE40_0M63J Mask Set Errata /docs/en/errata/MSEPFR4310MAE40_0M63J.htm /docs/en/errata/MSEPFR4310MAE40_0M63J.htm Errata N 155452329886410597 2022-12-07 htm en Jul 5, 2007 155452329886410597 Errata Y N MSEPFR4310MAE40_0M63J Mask Set Errata 14 - English 1171893355713705942397 PSP 82.0 KB None None documents None 1171893355713705942397 /docs/en/errata/MSEPFR4300MAE40_0M92D.htm 81961 /docs/en/errata/MSEPFR4300MAE40_0M92D.htm MSEPFR4300MAE40_0M92D documents N 2007-02-19 Maskset Errata Sheet for PFR4300MAE40_0M92D /docs/en/errata/MSEPFR4300MAE40_0M92D.htm /docs/en/errata/MSEPFR4300MAE40_0M92D.htm Errata N 155452329886410597 2022-12-07 htm en Mar 5, 2007 155452329886410597 Errata Y N Maskset Errata Sheet for PFR4300MAE40_0M92D 简介 Fact Sheet 2 15 1 English Over the last years the FlexRay ™ Consortium—an industry consortium of more than 120 companies—has developed the FlexRay Communications System that provides a time-deterministic communications protocol with a data rate of 10 Mbps for advanced control applications in vehicles. 1203964467294730303291 PSP 163.1 KB None None documents None 1203964467294730303291 /docs/en/fact-sheet/FLEXCOMMSYSTM4FS.pdf 163147 /docs/en/fact-sheet/FLEXCOMMSYSTM4FS.pdf FLEXCOMMSYSTM4FS documents N 2008-02-25 FlexRay ™ Communication System Next-generation, in-vehicle networking solution - Fact Sheet /docs/en/fact-sheet/FLEXCOMMSYSTM4FS.pdf /docs/en/fact-sheet/FLEXCOMMSYSTM4FS.pdf Fact Sheet N 736675474163315314 2022-12-07 pdf en Feb 25, 2008 736675474163315314 Fact Sheet Y N FlexRay ™ Communication System Next-generation, in-vehicle networking solution - Fact Sheet 16 5 English The Communications System for Advanced Automotive Control Applications. The rapid growth in advanced automotive control systems requires a new, more powerful communications protocol to ensure a network that works together to accomplish critical tasks within the vehicle. The FlexRay ™ Consortium formed to enable the development of next-generation by-wire systems and to promote an open-source network communications protocol for the automotive industry. 1066837514531717465028 PSP 153.1 KB None None documents None 1066837514531717465028 /docs/en/fact-sheet/FLEXRAYPROTOFS.pdf 153066 /docs/en/fact-sheet/FLEXRAYPROTOFS.pdf FLEXRAYPROTOFS documents N 2003-10-22 FlexRay ™ Protocol - Fact Sheet /docs/en/fact-sheet/FLEXRAYPROTOFS.pdf /docs/en/fact-sheet/FLEXRAYPROTOFS.pdf Fact Sheet N 736675474163315314 2022-12-07 pdf en May 11, 2005 736675474163315314 Fact Sheet Y N FlexRay ™ Protocol - Fact Sheet 可靠性与质量信息 Reliability and Quality Information 1 17 0 English 1184876956668706523428 PSP 95.7 KB None None documents None 1184876956668706523428 /docs/en/reliability-and-quality-information/MFR4310FLXRAYCERT.pdf 95728 /docs/en/reliability-and-quality-information/MFR4310FLXRAYCERT.pdf MFR4310FLXRAYCERT documents N 2007-07-19 MFR4310 FlexRay Protocol Conformance Certificate.doc /docs/en/reliability-and-quality-information/MFR4310FLXRAYCERT.pdf /docs/en/reliability-and-quality-information/MFR4310FLXRAYCERT.pdf Reliability and Quality Information N 506336137622222552 2022-12-07 pdf en Feb 26, 2007 506336137622222552 Reliability and Quality Information N MFR4310 FlexRay Protocol Conformance Certificate.doc 培训资料 Training Presentation 2 18 1 English 1123619102147717439522 PSP 87.7 KB None None documents None 1123619102147717439522 /docs/en/supporting-information/NETWRKFRWAY.pdf 87650 /docs/en/supporting-information/NETWRKFRWAY.pdf NETWRKFRWAY documents N 2005-08-09 Networking - The FlexRay Way /docs/en/supporting-information/NETWRKFRWAY.pdf /docs/en/supporting-information/NETWRKFRWAY.pdf Training Presentation N 501713016990820713 2022-12-07 pdf en Aug 9, 2005 501713016990820713 Training Presentation Y N Networking - The FlexRay Way 19 1 English 1123619100158755236891 PSP 81.8 KB None None documents None 1123619100158755236891 /docs/en/supporting-information/FRREFMODEL.pdf 81845 /docs/en/supporting-information/FRREFMODEL.pdf FRREFMODEL documents N 2005-08-09 FlexRay Reference Model /docs/en/supporting-information/FRREFMODEL.pdf /docs/en/supporting-information/FRREFMODEL.pdf Training Presentation N 501713016990820713 2022-12-07 pdf en Aug 4, 2005 501713016990820713 Training Presentation Y N FlexRay Reference Model 支持信息 Supporting Information 1 20 0 English 1161185860614708532395 PSP 807.5 KB None None documents None 1161185860614708532395 /docs/en/supporting-information/FRHWTOOLS.pdf 807488 /docs/en/supporting-information/FRHWTOOLS.pdf FRHWTOOLS documents N 2006-10-18 FlexRay Hardware Tools /docs/en/supporting-information/FRHWTOOLS.pdf /docs/en/supporting-information/FRHWTOOLS.pdf Supporting Information N 371282830530968666 2023-06-18 pdf en Oct 18, 2006 371282830530968666 Supporting Information Y N FlexRay Hardware Tools false 0 MFR4310 downloads zh-Hans true 1 Y PSP 勘误表 3 /docs/en/errata/MSEPFR4310MAE40_1M63J.htm 2007-06-20 1182336090979708282980 PSP 12 Aug 12, 2008 Errata None /docs/en/errata/MSEPFR4310MAE40_1M63J.htm English documents 8477 None 155452329886410597 2022-12-07 /docs/en/errata/MSEPFR4310MAE40_1M63J.htm MSEPFR4310MAE40_1M63J Mask Set Errata /docs/en/errata/MSEPFR4310MAE40_1M63J.htm documents 155452329886410597 Errata N en None Y htm - N MSEPFR4310MAE40_1M63J Mask Set Errata 8.5 KB MSEPFR4310MAE40_1M63J N 1182336090979708282980 /docs/en/errata/MSEPFR4310MAE40_0M63J.htm 2007-05-17 1179416561230727247378 PSP 13 Jul 5, 2007 Errata None /docs/en/errata/MSEPFR4310MAE40_0M63J.htm English documents 11990 None 155452329886410597 2022-12-07 /docs/en/errata/MSEPFR4310MAE40_0M63J.htm MSEPFR4310MAE40_0M63J Mask Set Errata /docs/en/errata/MSEPFR4310MAE40_0M63J.htm documents 155452329886410597 Errata N en None Y htm - N MSEPFR4310MAE40_0M63J Mask Set Errata 12.0 KB MSEPFR4310MAE40_0M63J N 1179416561230727247378 /docs/en/errata/MSEPFR4300MAE40_0M92D.htm 2007-02-19 1171893355713705942397 PSP 14 Mar 5, 2007 Errata None /docs/en/errata/MSEPFR4300MAE40_0M92D.htm English documents 81961 None 155452329886410597 2022-12-07 /docs/en/errata/MSEPFR4300MAE40_0M92D.htm Maskset Errata Sheet for PFR4300MAE40_0M92D /docs/en/errata/MSEPFR4300MAE40_0M92D.htm documents 155452329886410597 Errata N en None Y htm - N Maskset Errata Sheet for PFR4300MAE40_0M92D 82.0 KB MSEPFR4300MAE40_0M92D N 1171893355713705942397 可靠性与质量信息 1 /docs/en/reliability-and-quality-information/MFR4310FLXRAYCERT.pdf 2007-07-19 1184876956668706523428 PSP 17 Feb 26, 2007 Reliability and Quality Information None /docs/en/reliability-and-quality-information/MFR4310FLXRAYCERT.pdf English documents 95728 None 506336137622222552 2022-12-07 /docs/en/reliability-and-quality-information/MFR4310FLXRAYCERT.pdf MFR4310 FlexRay Protocol Conformance Certificate.doc /docs/en/reliability-and-quality-information/MFR4310FLXRAYCERT.pdf documents 506336137622222552 Reliability and Quality Information N en None pdf 0 N MFR4310 FlexRay Protocol Conformance Certificate.doc 95.7 KB MFR4310FLXRAYCERT N 1184876956668706523428 培训资料 2 /docs/en/supporting-information/NETWRKFRWAY.pdf 2005-08-09 1123619102147717439522 PSP 18 Aug 9, 2005 Training Presentation None /docs/en/supporting-information/NETWRKFRWAY.pdf English documents 87650 None 501713016990820713 2022-12-07 /docs/en/supporting-information/NETWRKFRWAY.pdf Networking - The FlexRay Way /docs/en/supporting-information/NETWRKFRWAY.pdf documents 501713016990820713 Training Presentation N en None Y pdf 1 N Networking - The FlexRay Way 87.7 KB NETWRKFRWAY N 1123619102147717439522 /docs/en/supporting-information/FRREFMODEL.pdf 2005-08-09 1123619100158755236891 PSP 19 Aug 4, 2005 Training Presentation None /docs/en/supporting-information/FRREFMODEL.pdf English documents 81845 None 501713016990820713 2022-12-07 /docs/en/supporting-information/FRREFMODEL.pdf FlexRay Reference Model /docs/en/supporting-information/FRREFMODEL.pdf documents 501713016990820713 Training Presentation N en None Y pdf 1 N FlexRay Reference Model 81.8 KB FRREFMODEL N 1123619100158755236891 工程设计要点 3 /docs/en/engineering-bulletin/EB747.pdf 2011-06-14 1308000823073705804198 PSP 9 Jun 15, 2011 Technical Notes None /docs/en/engineering-bulletin/EB747.pdf English documents 212053 None 389245547230346745 2022-12-07 N /docs/en/engineering-bulletin/EB747.pdf FlexRay Protocol Command Status /docs/en/engineering-bulletin/EB747.pdf documents 389245547230346745 Technical Notes N en None Y pdf 1 N N FlexRay Protocol Command Status 212.1 KB EB747 N 1308000823073705804198 /docs/en/engineering-bulletin/EB722.pdf 2009-10-23 1256310365526710589681 PSP 10 Oct 23, 2009 Technical Notes This document describes the configuration of the timeout value in System Memory Access Time-Out Register. None /docs/en/engineering-bulletin/EB722.pdf English documents 59852 None 389245547230346745 2022-12-07 /docs/en/engineering-bulletin/EB722.pdf Configuration of FlexRay Controller System Memory Access Timeout Value /docs/en/engineering-bulletin/EB722.pdf documents 389245547230346745 Technical Notes N en None Y pdf 0 N Configuration of FlexRay Controller System Memory Access Timeout Value 59.9 KB EB722 N 1256310365526710589681 /docs/en/engineering-bulletin/EB683.pdf 2007-05-22 1179871025165705427904 PSP 11 May 22, 2007 Technical Notes This document highlights differences between the
MFR4310 and MFR4300 devices. Information about
fixed bugs and issues reported for the MFR4300 is
outside of the scope of this document. None /docs/en/engineering-bulletin/EB683.pdf English documents 207789 None 389245547230346745 2022-12-07 /docs/en/engineering-bulletin/EB683.pdf MFR4310 and MFR4300 Differences /docs/en/engineering-bulletin/EB683.pdf documents 389245547230346745 Technical Notes N en None Y pdf 0 N MFR4310 and MFR4300 Differences 207.8 KB EB683 N 1179871025165705427904 应用笔记 5 /docs/en/application-note/AN3269.pdf 2006-08-16 1155716615523740341986 PSP 3 Feb 10, 2010 Application Note NXP Semiconductors offers a range of standalone FlexRay communication controllers (MFR4xxx) that can be interfaced with 16-bit and 32-bit microcontrollers (MCU). This application note describes the hardware, software and timing considerations necessary for reliable communication between the MFR4310 controller and the MPC55xx family of MCUs. None /docs/en/application-note/AN3269.pdf English documents 87694 None 645036621402383989 2022-12-07 /docs/en/application-note/AN3269.pdf Interfacing MPC5500 Microcontrollers to the MFR4310 FlexRay Controller /docs/en/application-note/AN3269.pdf documents 645036621402383989 Application Note N en None Y pdf 3 N Interfacing MPC5500 Microcontrollers to the MFR4310 FlexRay Controller 87.7 KB AN3269 N 1155716615523740341986 /docs/en/application-note/AN3256.pdf 2006-08-16 1155716612112700524031 PSP 4 Feb 21, 2008 Application Note NXP Semiconductors offers a range of standalone FlexRay communication controllers (MFR4xxx) that can be interfaced with 16-bit and 32-bit microcontrollers (MCU). This application note describes the hardware, software and timing considerations necessary for reliable communication between the MFR4310 controller and the MPC5xx family of MCUs. None /docs/en/application-note/AN3256.pdf English documents 68423 None 645036621402383989 2022-12-07 /docs/en/application-note/AN3256.pdf Interfacing MPC5xx Microcontrollers to the MFR4310 FlexRay Controller /docs/en/application-note/AN3256.pdf documents 645036621402383989 Application Note N en None Y pdf 2 N Interfacing MPC5xx Microcontrollers to the MFR4310 FlexRay Controller 68.4 KB AN3256 N 1155716612112700524031 /docs/en/application-note/AN3271.pdf 2006-08-16 1155714648966715368907 PSP 5 May 14, 2007 Application Note None /docs/en/application-note/AN3271.pdf English documents 433865 None 645036621402383989 2022-12-07 /docs/en/application-note/AN3271.pdf Migrating from MFR4200 to MFR4310 /docs/en/application-note/AN3271.pdf documents 645036621402383989 Application Note N en None Y pdf 1 N Migrating from MFR4200 to MFR4310 433.9 KB AN3271 N 1155714648966715368907 /docs/en/application-note/AN3260.pdf 2006-08-16 1155715697341712798177 PSP 6 May 14, 2007 Application Note None /docs/en/application-note/AN3260.pdf English documents 137012 None 645036621402383989 2022-12-07 /docs/en/application-note/AN3260.pdf Interfacing HCS12 Microcontrollers to the MFR4310 FlexRay Controller /docs/en/application-note/AN3260.pdf documents 645036621402383989 Application Note N en None Y pdf 1 N Interfacing HCS12 Microcontrollers to the MFR4310 FlexRay Controller 137.0 KB AN3260 N 1155715697341712798177 /docs/en/application-note/AN3265.pdf 2006-08-16 1155716614288721483497 PSP 7 May 14, 2007 Application Note None /docs/en/application-note/AN3265.pdf English documents 134299 None 645036621402383989 2022-12-07 /docs/en/application-note/AN3265.pdf Incorporating an MFR4310 Node in an MFR4200 Network /docs/en/application-note/AN3265.pdf documents 645036621402383989 Application Note N en None Y pdf 1 N Incorporating an MFR4310 Node in an MFR4200 Network 134.3 KB AN3265 N 1155716614288721483497 手册 1 /docs/en/brochure/BRINVEHICLENET.pdf 2016-10-31 1165514420451715669536 PSP 8 Dec 7, 2006 Brochure This brochure is an educational piece on Our LIN, CAN, FlexRay, and RF offerings in microcontrollers and analog. None /docs/en/brochure/BRINVEHICLENET.pdf English documents 677604 None 712453003803778552 2022-12-07 N /docs/en/brochure/BRINVEHICLENET.pdf Automotive In-Vehicle Networking Brochure /docs/en/brochure/BRINVEHICLENET.pdf documents 712453003803778552 Brochure N en None Y pdf 0 N N Automotive In-Vehicle Networking Brochure 677.6 KB BRINVEHICLENET N 1165514420451715669536 支持信息 1 /docs/en/supporting-information/FRHWTOOLS.pdf 2006-10-18 1161185860614708532395 PSP 20 Oct 18, 2006 Supporting Information None /docs/en/supporting-information/FRHWTOOLS.pdf English documents 807488 None 371282830530968666 2023-06-18 /docs/en/supporting-information/FRHWTOOLS.pdf FlexRay Hardware Tools /docs/en/supporting-information/FRHWTOOLS.pdf documents 371282830530968666 Supporting Information N en None Y pdf 0 N FlexRay Hardware Tools 807.5 KB FRHWTOOLS N 1161185860614708532395 数据手册 1 /docs/en/data-sheet/MFR4310RM.pdf 2007-05-14 1178916015486707443363 PSP 1 Mar 28, 2008 Data Sheet 数据手册 The MFR4310 FlexRay Communication Controller implements the FlexRay protocol according to the FlexRay Communications System Protocol Specification V2.1A. The controller host interface (CHI) of the MFR4310 FlexRay Communication Controller is complemented in accordance with Chapter 3, “FlexRay Module (FLEXRAYV4)” of this reference manual. None /docs/en/data-sheet/MFR4310RM.pdf English 1772409 None Data Sheet 2022-12-07 /docs/en/data-sheet/MFR4310RM.pdf MFR4310 FlexRay Communication Controllers - Data Sheet /docs/en/data-sheet/MFR4310RM.pdf documents 980000996212993340 Data Sheet N Y en None Y t520 pdf 2 N MFR4310 FlexRay Communication Controllers - Data Sheet MFR4310E1MAE40 1.8 MB MFR4310RM N 1178916015486707443363 简介 3 /docs/en/fact-sheet/FLEXCOMMSYSTM4FS.pdf 2008-02-25 1203964467294730303291 PSP 15 Feb 25, 2008 Fact Sheet Over the last years the FlexRay ™ Consortium—an industry consortium of more than 120 companies—has developed the FlexRay Communications System that provides a time-deterministic communications protocol with a data rate of 10 Mbps for advanced control applications in vehicles. None /docs/en/fact-sheet/FLEXCOMMSYSTM4FS.pdf English documents 163147 None 736675474163315314 2022-12-07 /docs/en/fact-sheet/FLEXCOMMSYSTM4FS.pdf FlexRay ™ Communication System Next-generation, in-vehicle networking solution - Fact Sheet /docs/en/fact-sheet/FLEXCOMMSYSTM4FS.pdf documents 736675474163315314 Fact Sheet N en None Y pdf 1 N FlexRay ™ Communication System Next-generation, in-vehicle networking solution - Fact Sheet 163.1 KB FLEXCOMMSYSTM4FS N 1203964467294730303291 /docs/en/fact-sheet/FLEXRAYPROTOFS.pdf 2003-10-22 1066837514531717465028 PSP 16 May 11, 2005 Fact Sheet The Communications System for Advanced Automotive Control Applications. The rapid growth in advanced automotive control systems requires a new, more powerful communications protocol to ensure a network that works together to accomplish critical tasks within the vehicle. The FlexRay ™ Consortium formed to enable the development of next-generation by-wire systems and to promote an open-source network communications protocol for the automotive industry. None /docs/en/fact-sheet/FLEXRAYPROTOFS.pdf English documents 153066 None 736675474163315314 2022-12-07 /docs/en/fact-sheet/FLEXRAYPROTOFS.pdf FlexRay ™ Protocol - Fact Sheet /docs/en/fact-sheet/FLEXRAYPROTOFS.pdf documents 736675474163315314 Fact Sheet N en None Y pdf 5 N FlexRay ™ Protocol - Fact Sheet 153.1 KB FLEXRAYPROTOFS N 1066837514531717465028 /docs/en/fact-sheet/MFR4310FS.pdf 2007-09-13 1189694736965720389847 PSP 2 May 23, 2007 Fact Sheet 简介 None /docs/en/fact-sheet/MFR4310FS.pdf English 92814 None Fact Sheet 2022-12-07 /docs/en/fact-sheet/MFR4310FS.pdf MFR4310 Fact Sheet NXP’s Stand-Alone FlexRayTM Controller /docs/en/fact-sheet/MFR4310FS.pdf documents 736675474163315314 Fact Sheet N Y en None Y t523 pdf 0 N MFR4310 Fact Sheet NXP’s Stand-Alone FlexRayTM Controller 92.8 KB MFR4310FS N 1189694736965720389847 true Y Products
