封装

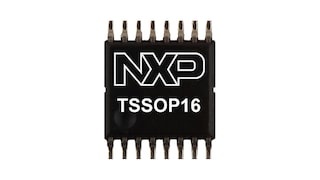

TSSOP16: plastic, thin shrink small outline package; 16 leads; 0.65 mm pitch, 5 mm x 4.4 mm x 1.1 mm body
购买选项
NX3L4053PW-Q100J
正常供应
12NC: 935301413118
详细信息
数量
单价
| 1 - 24 | $0.64 |
| 25 - 99 | $0.64 |
| 100+ | $0.64 |
订购
现货:2,500
从分销商处购买工作特点
| 参数 | 值 |
|---|---|
Family | NX |
Configuration | SPDT-Z |
Function | Analog switches |
VCC (V) | 1.4 - 4.3 |
Logic switching levels | CMOS/LVTTL |
RON (Ohm) | 0.8 |
RON(FLAT) | 0.3 |
| 参数 | 值 |
|---|---|
f(-3dB) (MHz) | 60 |
THD (%) | 0.02 |
Xtalk (dB) | -90 |
Power dissipation considerations | ultra low |
Tamb (°C) | -40~125 |
Rth(j-a) (K/W) | 160 |
th(j-top) (K/W) | 39 |
环境
| 部件/12NC | 无铅 | 欧盟 RoHS | 无卤素 | RHF指标 | REACH SVHC | 重量（mg） |
|---|---|---|---|---|---|---|
NX3L4053PW-Q100J(935301413118) | Yes | Yes Certificate Of Analysis (CoA) | Yes |  | REACH SVHC | 85.1450176 |
质量
| 部件/12NC | 安全保障功能安全 | 湿度灵敏度等级(MSL) | 封装体峰值温度（PPT）（C°） | ||
|---|---|---|---|---|---|
| 铅焊接 | 无铅焊接 | 铅焊接 | 无铅焊接 | ||
NX3L4053PW-Q100J (935301413118) | No | 1 | 1 | 240 | 260 |
配送
| 部件/12NC | 协调关税 (美国)免责声明 |
|---|---|
NX3L4053PW-Q100J (935301413118) | 854239 |
更多信息 NX3L4053
The NX3L4053 is a triple low-ohmic single-pole double-throw analog switch, suitable for use as an analog or digital multiplexer/demultiplexer. Each switch has a digital select input (nS), two independent inputs/outputs (nY0 and nY1) and a common input/output (nZ). All three switches share an enable input (E). A digital enable pin E is common to all switches.When E is HIGH, the switches are turned off.
Schmitt trigger action at the digital inputs makes the circuit tolerant to slower input rise and fall times. Low threshold digital inputs allows this device to be driven by 1.8 V logic levels in 3.3 V applications without significant increase in supply current ICC. This makes it possible for the NX3L4053 to switch 4.3 V signals with a 1.8 V digital controller, eliminating the need for logic level translation. The NX3L4053 allows signals with amplitude up to VCC to be transmitted from nZ to nY0 or nY1; or from nY0 or nY1 to nZ. Its low ON resistance (0.5 Ω) and flatness (0.13 Ω) ensures minimal attenuation and distortion of transmitted signals.
