1. Plug It In

Get Started with S32K118EVB Development Platform

Let's take your S32K118EVB for a test drive. You have the choice of watching a short setup video or following the detailed actions listed below.

Before running this guide to ensure the jumper configuration is correct, check jumpers J109, J110, and J11. The three of them should be configured from 1-2. On the other hand, to make it compliant with the S32K118EVB-Q064, jumpers J109, J110 and J11 must be changed from 1-2 to 2-3 positions.

Figure 1.S32K118EVB jumper configuration

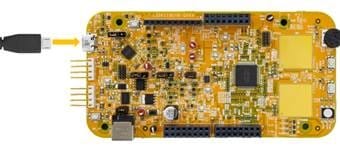

1.1 Attach the USB Cable

Connect your S32K118EVB to a PC and make sure that J107 is connected in the 3-2 position.

标记为完成:1.1 Attach the USB Cable

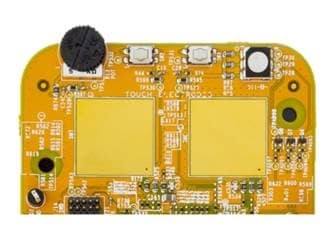

1.2 Run the JumpStart Demo

Your S32K118EVB comes preloaded with the JumpStart code, which toggles the RGB LED. Connect the S32K118EVB to the FreeMASTER tool using the S32K118_EVB_JumpStart_PC file for a complete experience of this code.

标记为完成:1.2 Run the JumpStart Demo

下一页Get Software

2. Get Software

2.1 Install Your Development Environment

S32 Design Studio IDE is a complimentary integrated development environment for automotive and ultra-reliable MCUs that enable editing, compiling, and debugging of your designs.

Get S32 Design Studio IDE

标记为完成:2.1 Install Your Development Environment

2.2 Download the JumpStart Code

Download the code and run it to getting familiar with your S32K118EVB using the FreeMASTER tool.

Get S32K118EVB Jumpstart with Freemaster

标记为完成:2.2 Download the JumpStart Code

2.3 Get the Run-Time Debugging Tool

S32K118EVB2Q048 evaluation board performs better when using FreeMASTER tool for run-time debugging.

Note: Check the FreeMASTER page for the latest version.

Download FREEMASTER TOOL

标记为完成:2.3 Get the Run-Time Debugging Tool

前页Plug It In

下一页Build, Run

3. Build, Run

Learn how to create a new project in S32 Design Studio IDE for power architecture and the basics to create your own code by running an easy example code.

3.1 Create, Build and Debug Your Application

标记为完成:3.1 Create, Build and Debug Your Application

3.2 Explore the Example Code

For your convenience, we integrated example code in to S32 Design Studio for Power Architecture®. Alternatively they can be found in the Quick Start Package. Again, the Software Integration Guide (SWIG) provides step-by-step instructions on how to use.

标记为完成:3.2 Explore the Example Code
