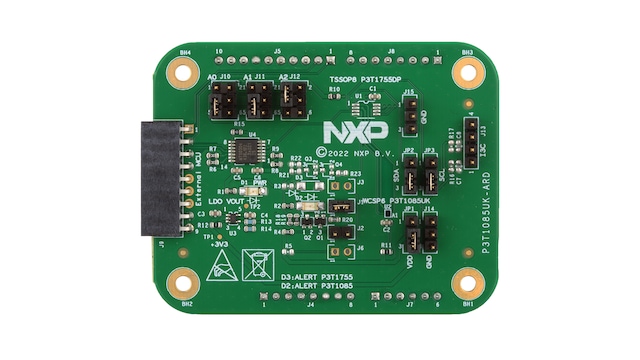

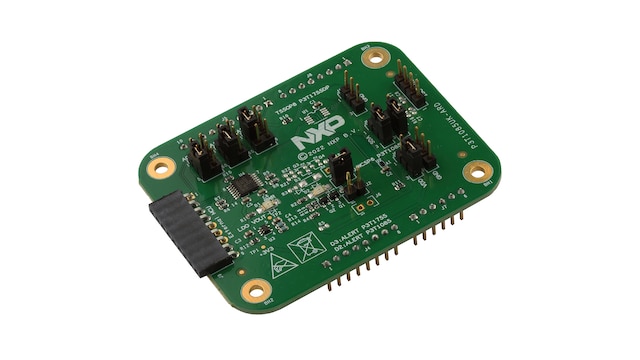

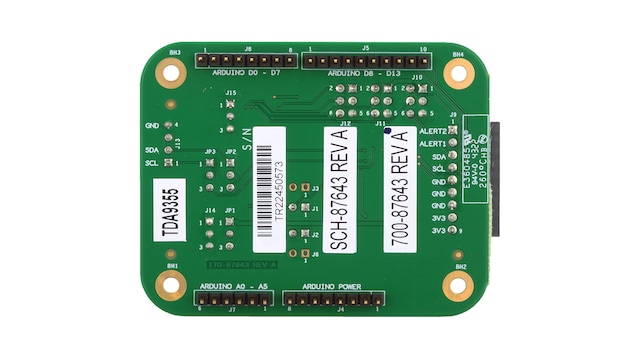

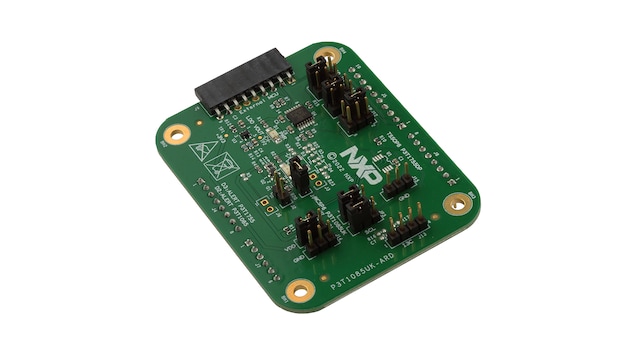

P3T1085UK Arduino®Shield评估板

P3T1085UK-ARD

滚动图片以放大

P3T1085UK是精确的温度数字转换器，精度为±0.5°C，温度范围为–40°C到+125°C。

温度寄存器始终存储12位2进制补码数据，温度分辨率为0.0625 °C。P3T1085UK可以配置为不同的工作模式：连续转换模式、单一转换模式或关闭模式。该设备支持2线串行I3C（高达12.5 MHz）和I2C（高达3.4 MHz）作为通信接口。

产品详情

支持的器件

传感器

I3C/I²C数字温度传感器

  • P3T1085UK: I3C/I2C总线精确数字温度传感器，精度为±0.5 °C

特性

主要特性

  • 精度为±0.5°C的精确温度传感器
  • 支持I3C/I2C
  • 连续转换模式、单一转换模式或关闭模式
  • 超小型WLCSP6封装（0.84 x 1.18mm机身; 0.4mm引脚）

购买选项

P3T1085UK-ARD-Image

点击展开

  • P3T1085UK-ARD
    正常供应

  • P3T1085UK Arduino® Shield Evaluation Board.

  • 套件包含：

    • P3T1085UK-ARD印刷电路板硬件
    • I3C接口的额外电缆
    • 用于评估的GUI
    • 快速入门指南
  • $16.50 USD
  • 数量为 1
    • 供货情况: 现货
    • 库存: 2
    • 配送: 正常情况下 1-2个工作日内发货
加入购物车
从分销商处购买
N true 0 TSPP3T1085UK-ARDzh 3 支持信息 Supporting Information t531 1 用户手册 User Manual t1009 1 用户指南 User Guide t792 1 zh zh 1 1 English The P3T1085UK-ARD evaluation board is designed for the P3T1085UK, an I3C, I2C-bus, 0.5 °C accuracy, digital temperature sensor. 1675719805418725507634 Y 1675719805418725507634 GS-P3T1085UK-ARD GS-P3T1085UK-ARD /document/guide/getting-started-with-the-p3t1085uk-ard-evaluation-board:GS-P3T1085UK-ARD HTML 0 TSP 2023-02-06 GS-P3T1085UK-ARD TSP User Guide 132339537837198660 2025-03-05 en Feb 26, 2023 User Guide t792 用户指南 User Guide Y Getting Started with the P3T1085UK-ARD Evaluation Board false zh 用户手册 User Manual 1 2 1.0 English The P3T1085UK-ARD evaluation board is easy to test and designed for the P3T1085UK which is an I3C, I2C-bus, 0.5 °C accuracy, digital temperature sensor. This evaluation board, along with the MIMXRT685-EVK MCU board provides an easy-to-use evaluation platform. 1674072386615740662295 TSP 2.8 MB None None documents None 1674072386615740662295 /docs/en/user-manual/UM11766.pdf 2816234 /docs/en/user-manual/UM11766.pdf UM11766 documents N N 2023-01-18 UM11766, P3T1085UK-ARD Evaluation Board User Manual /docs/en/user-manual/UM11766.pdf /docs/en/user-manual/UM11766.pdf User Manual N 309919593431037931 2023-02-28 pdf N en Feb 15, 2023 309919593431037931 User Manual Y N UM11766, P3T1085UK-ARD Evaluation Board User Manual 支持信息 Supporting Information 1 3 8.0 English BL AA FRDM expansion boards, flexible, rapid development with MCUXpresso. 1726177395973719999699 TSP 5.3 MB None None documents None 1726177395973719999699 /docs/en/supporting-information/FRDM-Expansion-Board-Catalog.pdf 5342343 /docs/en/supporting-information/FRDM-Expansion-Board-Catalog.pdf FRDM-EXPANSION-BOARD-CATALOG documents N N 2024-09-12 FRDM Expansion Board Catalog /docs/en/supporting-information/FRDM-Expansion-Board-Catalog.pdf /docs/en/supporting-information/FRDM-Expansion-Board-Catalog.pdf Supporting Information N 371282830530968666 2025-01-13 pdf N en Jan 13, 2025 371282830530968666 Supporting Information Y N FRDM Expansion Board Catalog false 0 P3T1085UK-ARD downloads zh-Hans true 0 Y TSP 支持信息 1 /docs/en/supporting-information/FRDM-Expansion-Board-Catalog.pdf 2024-09-12 1726177395973719999699 TSP 3 Jan 13, 2025 Supporting Information BL AA FRDM expansion boards, flexible, rapid development with MCUXpresso. None /docs/en/supporting-information/FRDM-Expansion-Board-Catalog.pdf English documents 5342343 None 371282830530968666 2025-01-13 N /docs/en/supporting-information/FRDM-Expansion-Board-Catalog.pdf FRDM Expansion Board Catalog /docs/en/supporting-information/FRDM-Expansion-Board-Catalog.pdf documents 371282830530968666 Supporting Information N en None Y pdf 8.0 N N FRDM Expansion Board Catalog 5.3 MB FRDM-EXPANSION-BOARD-CATALOG N 1726177395973719999699 用户手册 1 /docs/en/user-manual/UM11766.pdf 2023-01-18 1674072386615740662295 TSP 2 Feb 15, 2023 User Manual The P3T1085UK-ARD evaluation board is easy to test and designed for the P3T1085UK which is an I3C, I2C-bus, 0.5 °C accuracy, digital temperature sensor. This evaluation board, along with the MIMXRT685-EVK MCU board provides an easy-to-use evaluation platform. None /docs/en/user-manual/UM11766.pdf English documents 2816234 None 309919593431037931 2023-02-28 N /docs/en/user-manual/UM11766.pdf UM11766, P3T1085UK-ARD Evaluation Board User Manual /docs/en/user-manual/UM11766.pdf documents 309919593431037931 User Manual N en None Y pdf 1.0 N N UM11766, P3T1085UK-ARD Evaluation Board User Manual 2.8 MB UM11766 N 1674072386615740662295 用户指南 1 2023-02-06 1675719805418725507634 TSP 1 Feb 26, 2023 User Guide 用户指南 The P3T1085UK-ARD evaluation board is designed for the P3T1085UK, an I3C, I2C-bus, 0.5 °C accuracy, digital temperature sensor. Y GS-P3T1085UK-ARD English 0 User Guide 2025-03-05 /document/guide/getting-started-with-the-p3t1085uk-ard-evaluation-board:GS-P3T1085UK-ARD Getting Started with the P3T1085UK-ARD Evaluation Board GS-P3T1085UK-ARD TSP 132339537837198660 User Guide en Y t792 HTML GS-P3T1085UK-ARD 1675719805418725507634 true Y Tools

文档

快速参考恩智浦 文档类别.

筛选条件

3 文件

紧凑列表

Related Hardware

快速参考恩智浦 板类型.
筛选条件

1 硬件产品

设计文件

快速参考恩智浦 设计文件类型.
筛选条件

2 设计文件

软件

快速参考恩智浦 软件类型.

筛选条件

3 软件文件

  • HMI设计软件

    GUI for P3T1085UK Arduino Shield Evaluation Board

    ZIP版本 1.0Oct 4, 2022690.4 KBP3T1085UK-ARD-GUI
    请登录
    下载
  • BSP及设备驱动

    P3T1085UK Temperature Sensor Driver with Demo App (SDK)

    GITHUB版本 1Apr 12, 20241 KBP3T1085UK-TEMPERATURE-SENSOR-DRIVER-DEMO-APP-SDK
    下载
  • BSP及设备驱动

    P3T1085UK Temperature Sensor - Application Code Hub

    MCUXPRESSO版本 1Apr 12, 20241 KBP3T1085UK-TEMPERATURE-SENSOR-APPLICATION-CODE-HUB
    下载
