S32K388EVB-Q289 Evaluation Board for Automotive General Purpose

S32K388EVB-Q289
正常供应

滚动图片以放大

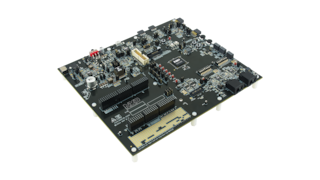

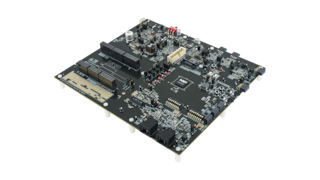

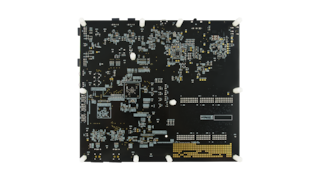

The S32K388EVB-Q289 is an evaluation and development board for general-purpose industrial and automotive applications.

Based on the 32-bit Arm®Cortex®-M7 S32K3 MCU in a 289 MAPBGA package, the S32K388EVB-Q289 offers a multicore mode, HSE_B security engine, OTA support, advanced connectivity, 2 x 1 Gbit Ethernet ports and low power.

The S32K388EVB-Q289 offers a standard-based form factor compatible with the Arduino® UNO pin layout, providing a broad range of expansion board options for quick application prototyping.

框图

S32K388EVB-Q289 Features

S32K388EVB-Q289
获取框图PDF

支持的器件

电源管理

安全SBC

  • FS26: 功能安全系统基础芯片，低功耗，面向ASIL D系统

处理器和微控制器

S32K汽车通用MCU

  • S32K3: S32K3汽车通用微控制器

K2x / KS2x USB

  • K26_180: Kinetis® K26-180 MHz，双高速和全速USB，2MB闪存微控制器(MCU)，基于ARM® Cortex®-M4内核

Features

Hardware Interface

  • Power supply switch
  • 2x User RGB LED
  • 2x user push-buttons
  • 2x ADC rotatory potentiometer
  • I/O matrix
  • USB connector for OpenSDA
  • SABRE connector to ethernet interface
  • 2x 10/100/1000 Gigabit Ethernet INTERFACE
  • 2x CAN/CANFD
  • 4x LIN
  • 3x LPSPI 20 Mbps INTERFACE
  • JTAG Connector

Software Features

Compatibility

  • Arduino UNO pin-out compatible with expansion "shield" support

Interfaces

  • On-board CAN-FD
  • LIN
  • 2x 1 Gbit Ethernet
  • USB to UART
  • SPI

Enablement

  • Free of charge S32 Design Studio IDE (Eclipse, GCC and debugger) and S32 Config Tool (pins, clocks, peripherals) with third-party compilers and debuggers

购买选项

S32K388EVB-Q289-Image

点击展开

  • S32K388EVB-Q289
    正常供应

  • S32K388EVB-Q289 Evaluation Board for Automotive General Purpose.

  • Kit contains:

    • S32K388EVB-Q289 Evaluation Board for Automotive General Purpose
  • $950.00 USD
  • 数量为 1
    • 供货情况: 现货
    • 库存: 25
    • 配送: 正常情况下 1-2个工作日内发货
加入购物车
从分销商处购买
