评估套件 - 33912，LIN SBC，DC电机预驱动器

KIT33912G5DGEVME
正常供应

滚动图片以放大

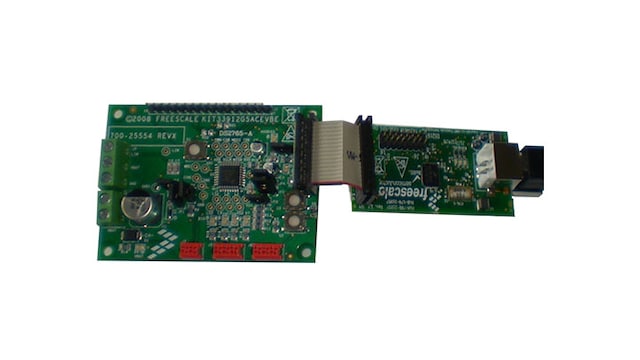

该评估套件利用USB Dongle接口板来支持33912。33912是一个由串行外设接口(SPI)控制的系统基础芯片(SBC)，结合了许多基于MCU的系统中经常使用的功能，以及一个本地互连网(LIN)收发器。33912拥有一个5.0V – 50mA的低压差稳压器，具有全面的保护和报告功能。此器件具有SPI完全可读的诊断功能和可选择的定时看门狗，用来监测错误操作。符合LIN协议规范2.0和2.1 ('G5AC)的LIN收发器，具有波形整形电路，较高的数据传输速率时可禁用波形整形电路。

带有输出保护功能的两个60mA高边开关和两个160ma低边开关，可驱动电阻和电感负载。可对所有输出进行脉宽调制(PWM)。

该评估套件可与KITUSBSPIDGLEVME配合使用。

产品详情

支持的器件

接口

汽车LIN解决方案

  • MC33910: 带有两个60mA高边驱动器的LIN SBC
  • MC33911: 带直流电机预驱动器的LIN系统基础芯片
  • MC33912: 带DC电机预驱动器和电流感测的LIN SBC

特征

接口

  • 全双工SPI接口，频率高达4MHz
  • USB dongle board interface to SPI port of MC33910, MC33911, and MC33912
  • 可配置的窗口看门狗

电源管理

  • Four high-voltage analog/logic Inputs
  • 带故障检测功能和低压复位(LVR)电路的5.0V低压降稳压器
  • 开关式/受保护5.0 V输出(用于霍尔传感器)

组件

  • LIN收发器通过波形整形可高达100kbps
  • 两个60mA高边开关和两个160mA低边开关

购买选项

KIT33912G5DGEVME-Image

点击展开

  • KIT33912G5DGEVME
    正常供应

  • Evaluation Kit - MC33912, LIN System Basis Chip with DC Motor Pre-driver and Current Sense.

    • KIT33905D5EKEVBE硬件
    • 线缆，USB A-M至B-M
    • 线缆(扁平带状)
    • 快速参考指南
  • $143.75 USD
  • 数量为 1
    • 供货情况: 待定库存
加入购物车
从分销商处购买
