适用于S32R264、S32R274和S32R372的评估系统

S32RXXXEVB 正常供应

滚动图片以放大

S32RXXXEVB是为高性能雷达应用而设计的评估系统。该系统由一个MPC57XXXMB和一个S32R274EVB或S32R372EVB组成，可实现灵活、直接的硬件和软件开发。

S32RXXXEVB是一个基于32位Power Architecture®、S32R264和S32R274雷达微控制器的模块化开发平台，既可以作为子卡与通用MPC57xx主板一起使用，也可以作为独立解决方案使用；支持从软件开发开始，直到体验高度集成的雷达信号处理工具箱(SPT)及其功能安全和硬件安全功能(CSE2)。

支持的器件

处理器和微控制器

S32R雷达处理

  • S32R2X: S32R雷达微控制器 - S32R27汽车与工业雷达应用

特征

微控制器

  • 板选件：
    • S32R274RRUEVB：采用257 BGA雷达MCU的S32R274 (带插座)
    • S32R372RRSEVB：采用257 BGA雷达MCU的S32R372 (带插座)

连接

  • 标准的14引脚JTAG调试接头和34引脚Nexus Aurora接头
  • 10引脚串行处理器间接口(SIPI)接头
  • Gbit以太网物理接口IC，带有RJ45接头
  • MIPI-CSI2接头

用户组件

  • 带复位状态LED的用户复位开关
  • 灵活的MCU定时选项(通过SMA接头或40 MHz EVB时钟振荡器电路连接的外部时钟)

购买选项

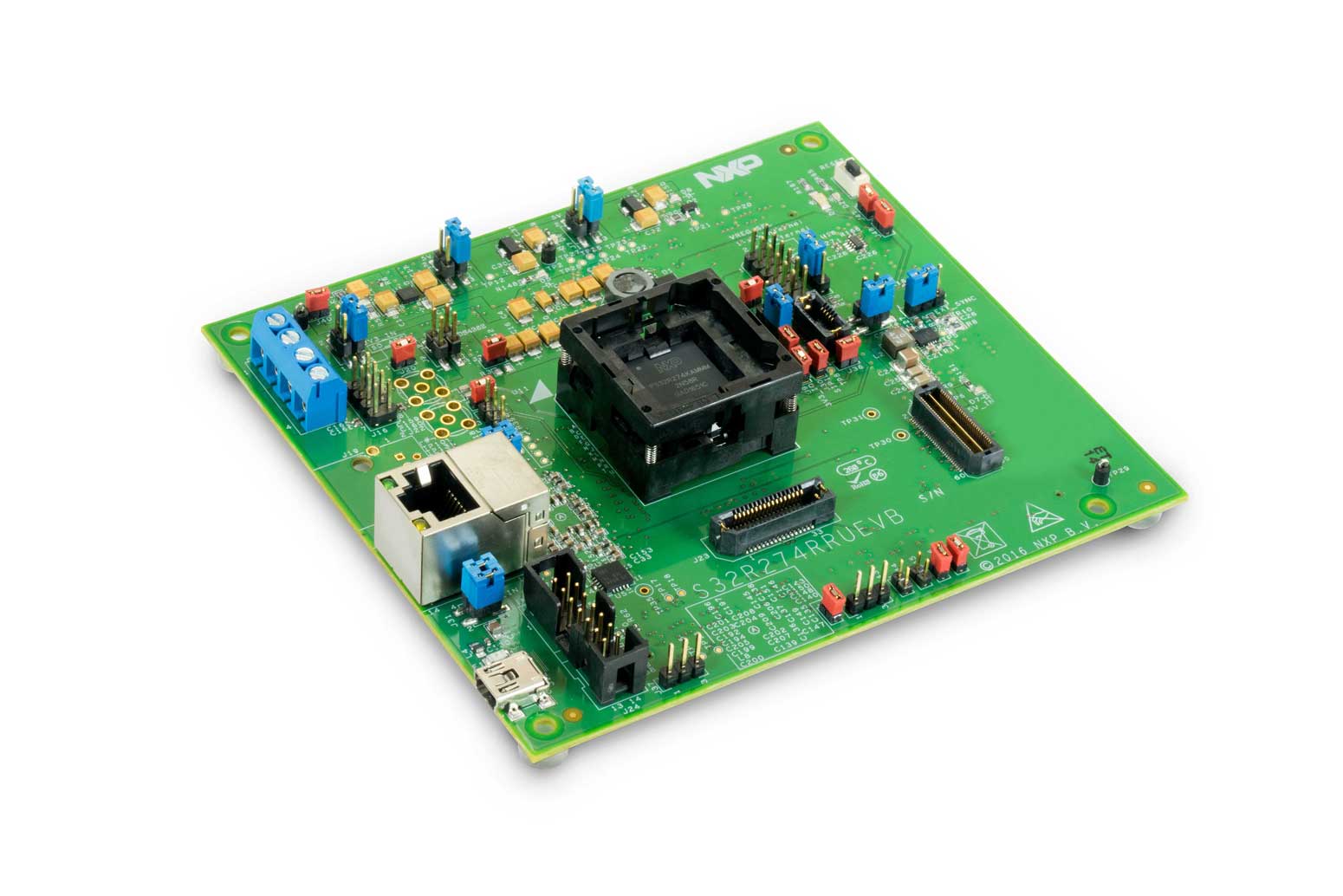

S32R274RRUEVB-Image

点击展开

  • S32R274RRUEVB
    正常供应

  • S32R274RRUEVB.

    • S32R274RRUEVB：
      • 评估板
      • 1个S32R274雷达微控制器
    • S32R274RRSEVB
      • 评估板
      • 1个S32R372雷达微控制器
  • 数量为 1
从分销商处购买
S32R372RRSEVB-Image

点击展开

  • S32R372RRSEVB
    正常供应

  • Evaluation Systems for S32R264, S32R274, and S32R372.

  • $545.00 USD
  • 数量为 1
    • 供货情况: 现货
    • 库存: 2
    • 配送: 正常情况下 1-2个工作日内发货
加入购物车
从分销商处购买
