S32G2车联网参考设计

S32G-VNP-RDB
  • 归档的内容不再更新，仅作为历史记录参考。

滚动图片以放大

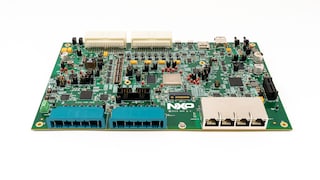

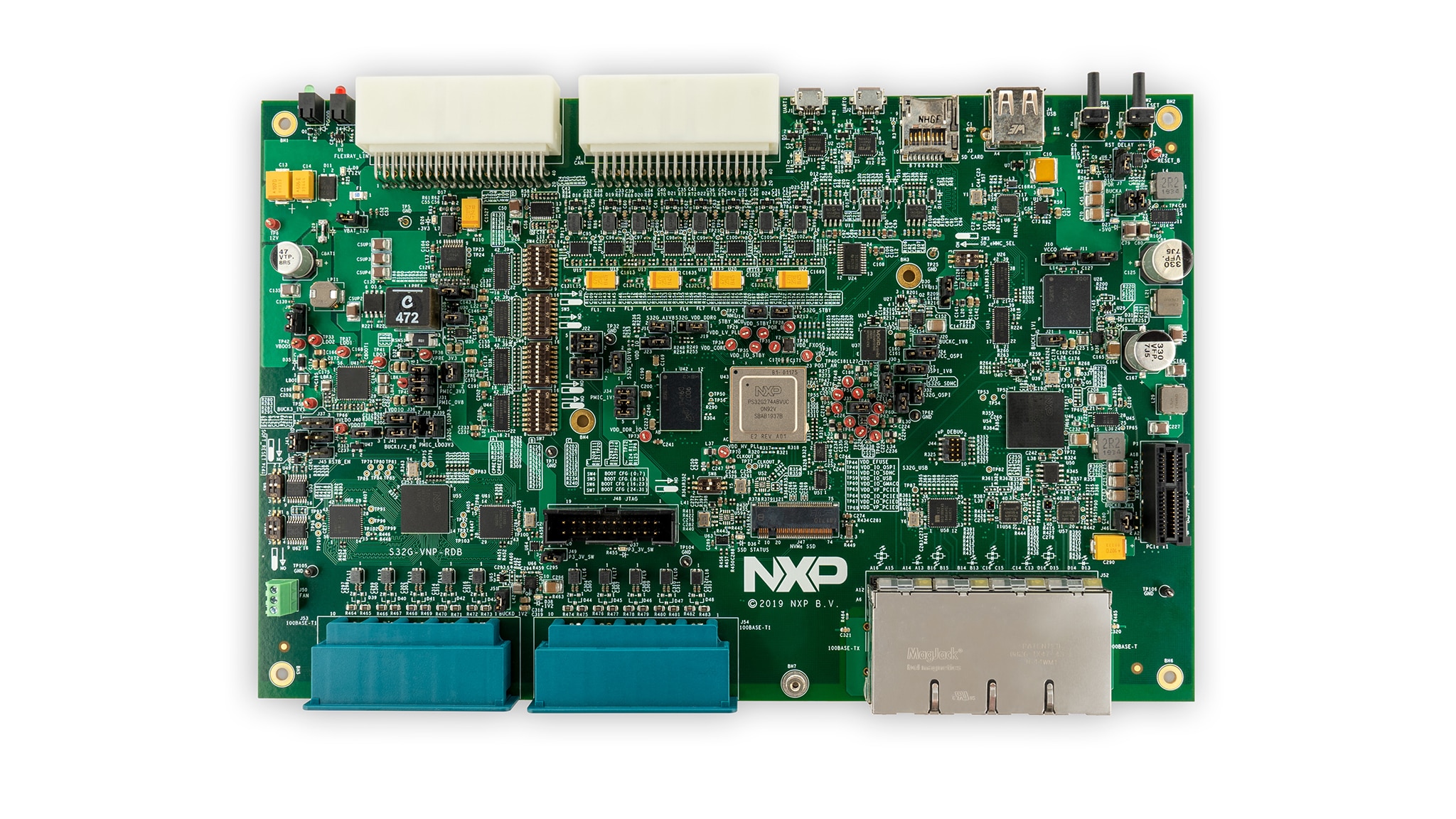

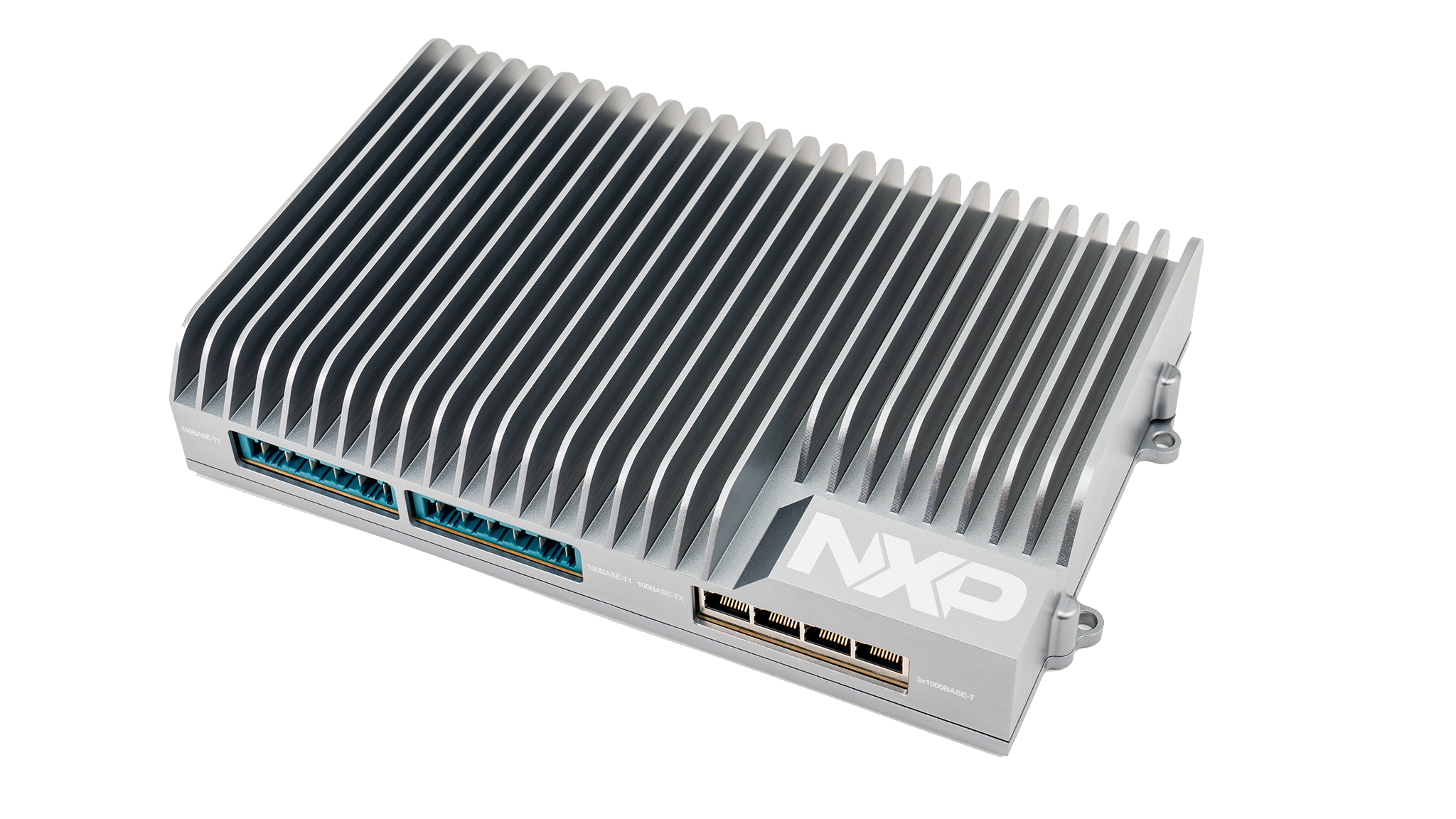

S32G-VNP-RDB是一款评估开发板，专为开发汽车网络处理应用而设计，如服务型网关。

S32G-VNP-RDB基于4个Arm® Cortex®-A53内核和3个双核锁步Arm Cortex-M7内核，除了出色的安全计算性能外，还提供汽车和企业网络技术的组合，以及适用于汽车网络的多种接口(CAN/LIN/FlexRay/以太网)。S32G-VNP-RDB包括具有PCI Express和USB接口的外围设备，OEM、一级和软件生态系统合作伙伴可利用这些设备加快产品上市速度。

S32G汽车网络处理参考设计——简介

产品详情

框图

S32G-VNP-RDB系统架构

S32G-VNP-RDB system architecture
获取框图PDF

支持的器件

处理器和微控制器

S32G汽车网络处理器

  • S32G2: S32G2汽车网络处理器

电源管理

安全SBC

  • VR5510: 面向S32G处理器的多通道（9通道）PMIC——8个高功率通道、1个低功率通道，满足ASIL D安全等级要求

模拟及混合信号

电压电平转换器

  • NTS0102: 双电源转换收发器（开漏，自动方向感测）

接口

FlexRay收发器

  • TJA1081B: FlexRay™节点收发器——Clamp 30

汽车以太网PHY

  • TJA1102A: TJA1102A/TJA1102AS：双端口/单端口汽车以太网100BASE-T1 PHY收发器

3.3V/5V IO CAN收发器

  • TJA1043: 具备待机和睡眠模式的高速CAN收发器

汽车LIN解决方案

  • TJA1124: 面向车载子网的4通道LIN主收发器
