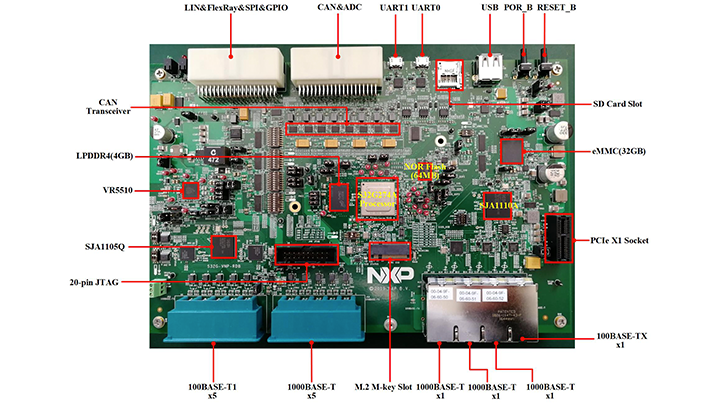

S32G-VNP-RDB板快速入门

Linux BSP运行日志


47045] 000: sit: IPv6, IPv4 and MPLS over IPv4 tunneling driver
    2.947558] 000: NET: Registered protocol family 17
    2.947589] 000: bridge: filtering via arp/ip/ip6tables is no longer available by default. Update your scripts to load br_netfilter if you need this.
    2.947593] 000: can: controller area network core (rev 20170425 abi 9)
    2.947645] 000: NET: Registered protocol family 29
[    2.947651] 000: can: raw protocol (rev 20170425)
    2.947656] 000: can: broadcast manager protocol (rev 20170425 t)
    2.947664] 000: can: netlink gateway (rev 20190810) max_hops=1
    2.947692] 000: 8021q: 802.1Q VLAN Support v1.8
    2.957187] 001: i2c i2c-4: IMX I2C adapter registered
    2.957232] 001: i2c i2c-4: using dma0chan6 (tx) and dma0chan7 (rx) for DMA transfers
    2.959260] 000: mmc0: new high speed SDHC card at address aaaa
    2.959955] 000: mmcblk0: mmc0:aaaa SA16G 14.8 GiB
    2.962560] 000:  mmcblk0: p1 p2
    2.969720] 001: s32gen1-rtc 40060000.rtc: setting system clock to 2018-08-10T18:00:00 UTC (1533924000)
    3.006124] 001: EXT4-fs (mmcblk0p2): mounting ext3 file system using the ext4 subsystem
    3.071456] 001: EXT4-fs (mmcblk0p2): recovery complete
    3.072613] 001: EXT4-fs (mmcblk0p2): mounted filesystem with ordered data mode. Opts: (null)
    3.072643] 001: ext3 filesystem being mounted at /root supports timestamps until 2038 (0x7fffffff)
    3.072709] 001: VFS: Mounted root (ext3 filesystem) on device 179:2.
    3.073702] 001: devtmpfs: mounted
    3.073958] 001: Freeing unused kernel memory: 384K
    3.220567] 001: Run /sbin/init as init process
    3.268071] 000: random: fast init done
    4.248926] 001: udevd[98]: starting version 3.2.8
    4.256669] 001: random: udevd: uninitialized urandom read (16 bytes read)
    4.257673] 001: random: udevd: uninitialized urandom read (16 bytes read)
    4.257718] 001: random: udevd: uninitialized urandom read (16 bytes read)
    4.285677] 003: udevd[99]: starting eudev-3.2.8
    4.601072] 001: loading NXP PHY driver: [autonomous mode]
    4.700577] 001: sja1105pqrs: loading out-of-tree module taints kernel.
    4.703556] 001: sja1105pqrs spi1.0: Loading SJA1105P SPI driver
    4.703713] 001: sja1105pqrs spi1.0: Detected Device ID ae00030e ()
    4.703817] 001: sja1105pqrs spi1.0: Detected device id is invalid: 00000000
    4.703868] 001: sja1105pqrs spi1.0: Detected device id is invalid: 00000000
    4.703918] 001: sja1105pqrs spi1.0: Detected device id is invalid: 00000000
    4.703968] 001: sja1105pqrs spi1.0: Detected device id is invalid: 00000000
    4.704020] 001: sja1105pqrs spi1.0: Detected device id is invalid: 00000000
    4.704071] 001: sja1105pqrs spi1.0: Detected device id is invalid: 00000000
    4.718551] 001: sja1105pqrs spi1.0: 1 switch initialized successfully!
    4.741025] 000: EXT4-fs (mmcblk0p2): re-mounted. Opts: (null)
    4.741059] 000: ext3 filesystem being remounted at / supports timestamps until 2038 (0x7fffffff)
Starting udev
sysctl: cannot stat /proc/sys/net/ipv4/tcp_syncookies: No such file or directory
Fri Nov 20 06:06:14 UTC 2020
INIT: Entering runlevel: 5
Configuring network interfaces... [    5.271546] 002: s32cc-dwmac 4033c000.ethernet eth0: Enabling Safety Features
[    5.271584] 002: s32cc-dwmac 4033c000.ethernet eth0: IEEE 1588-2008 Advanced Timestamp supported
[    5.271869] 002: s32cc-dwmac 4033c000.ethernet eth0: registered PTP clock
[    5.271886] 002: s32cc-dwmac 4033c000.ethernet eth0: configuring for fixed/rgmii link mode
[    5.272203] 002: s32cc-dwmac 4033c000.ethernet eth0: Link is Up - 1Gbps/Full - flow control off
[    5.272783] 002: 8021q: adding VLAN 0 to HW filter on device eth0
Starting rpcbind daemon...[    5.720204] 001: urandom_read: 5 callbacks suppressed
[    5.720226] 001: random: sshd: uninitialized urandom read (32 bytes read)
done.
Starting OpenBSD Secure Shell server: sshd
starting statd: [    5.772841] 000: random: sshd: uninitialized urandom read (32 bytes read)
done.
done
Starting irqbalance: done
Starting network benchmark server: netserver.
exportfs: can't open /etc/exports for reading
NFS daemon support not enabled in kernel
Starting syslogd/klogd: done
Starting internet superserver: xinetd.
Starting random number generator daemon.
[    5.975449] 002: random: crng init done

Auto Linux BSP 1.0 s32g274ardb ttyLF0

s32g274ardb login:
