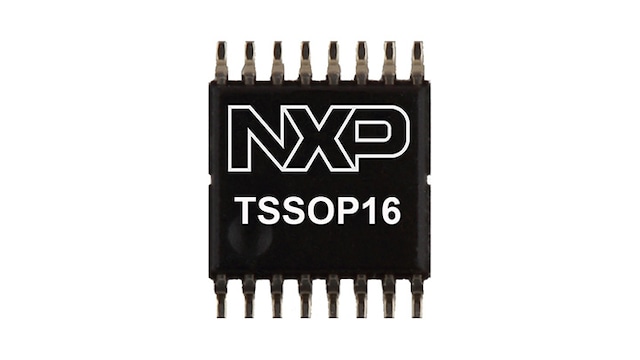

The SC16IS741A is a follower I²C-bus/SPI interface to a single-channel high performance UART. It offers data rates up to 5 Mbit/s and guarantees low operating and sleeping current. The device comes in the TSSOP16 package, which makes it ideally suitable for handheld, battery operated applications. This device enables seamless protocol conversion from I²C-bus or SPI to and RS-232/RS-485 and are fully bidirectional.
The SC16IS741A’s internal register set is backward-compatible with the widely used and widely popular 16C450. This allows the software to be easily written or ported from another platform.
The SC16IS741A also provides additional advanced features such as auto hardware and software flow control, automatic RS-485 support, and software reset. This allows the software to reset the UART at any moment, independent of the hardware reset signal.
1 结果
包含 1 不推荐用于新设计
部件 | 订购 | 计算机辅助设计模型 | 状态 | 预算报价(不含税) | 封装类型 | 封装端接数 | Buffer size | Input | Output |
---|---|---|---|---|---|---|---|---|---|
正常供应 | 1K @ CNY8.97 | TSSOP16 | 16 | 64 | I2C bus, SPI | UART |
