单线CAN收发器

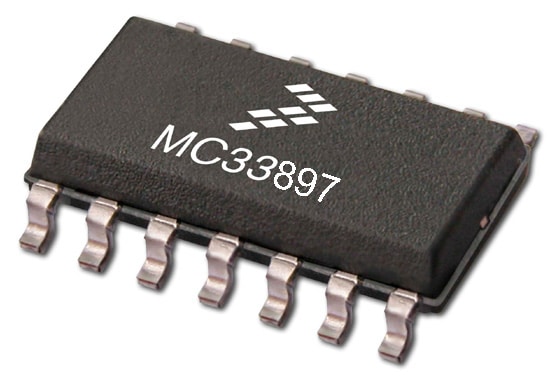

MC33897 正常供应

滚动图片以放大

恩智浦MC33897系列通过在单线介质上运行的载波监听多路访问/冲突解决(CSMA/CR)数据链路提供物理层，以实现数字通信。这通常被称为单线控制器局域网(SWCAN)。

  • 33897系列可以直接由车载12V电池系统或广泛的直流电源供电。
  • 高电压唤醒功能使器件能够控制用于支持MCU和其他逻辑的稳压器
  • 该器件符合GMW3089v2.4通用汽车公司规范

产品详情

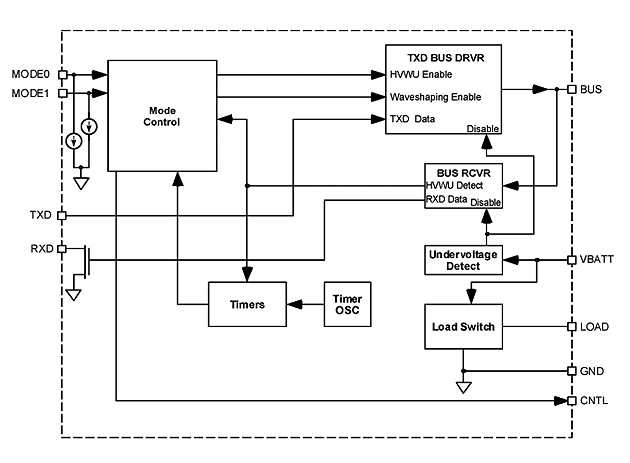

框图

MC33897_BD

NXP<sup>&#174;</sup> MC33897 Internal Block Diagram
获取框图PDF

特征

  • 波形整形，实现低电磁干扰(EMI)
  • 检测并自动处理接地失效
  • 最坏情况下睡眠模式电流消耗仅为60 μA
  • 电流限制可防止因为总线短路而损坏
  • 总线输出提供内置热关闭
  • 针对车辆电气瞬变提供保护
  • 欠压锁定可防止因为电池电量低而丢失数据

购买/参数

1 结果

包含 0 不推荐用于新设计

部件

展开描述

订购

计算机辅助设计模型

状态

Recommended Orderable Part Number

MCU I/O Interface (V)

Low Power Modes

传输速率（最大）（Kbps）

封装类型

CAN Channels

产品类别

输入电压[最小到最大]（V）

传输速率（最小）（Kbps）

Voltage on bus pins [Min-Max] (V)

VIO Option Available

GPIO

Product Application

MC33897CTEF
数据手册

正常供应

MC33897CTEFR2

5.0

Sleep Mode

83.33

SO14

1

Single-wire CAN

5 to 26.5

33.33

-27 to 40

N

14

Automotive, Industrial

N true 0 PSPMC33897zh 5 勘误表 Errata t522 1 应用笔记 Application Note t789 2 数据手册 Data Sheet t520 1 选型指南 Selector Guide t528 1 zh 2 1 1.0 English NXP is expanding silicon wafer capacity at Taiwan Semiconductor Manufacturing Company, LTD. (TSMC) located in Science Park, Taiwan. NXP is working with TSMC to ensure a smooth transition and is pursuing full automotive qualification of all transferred products.This errata sheet applies to the following device: MC33897TD, MC33897TEF, SC900800TD 1150488466385720076358 PSP 75.1 KB None None documents None 1150488466385720076358 /docs/en/errata/MC33897TER.pdf 75065 /docs/en/errata/MC33897TER.pdf MC33897T N 2006-06-16 MC33897T, TSMC Silicon Errata /docs/en/errata/MC33897TER.pdf /docs/en/errata/MC33897TER.pdf Errata N Y 155452329886410597 2022-12-07 pdf en Jun 16, 2006 Errata t522 勘误表 Errata N N MC33897T, TSMC Silicon Errata 2 18.0 English The 33897 Series provides a physical layer for digital communications purposes using a Carrier Sense Multiple Access/Collision Resolution (CSMA/CR) data link operating over a single wire medium. This is more commonly referred to as Single Wire Controller Area Network (CAN). 118pH9xC PSP 417.8 KB None None documents None 118pH9xC /docs/en/data-sheet/MC33897.pdf 417848 /docs/en/data-sheet/MC33897.pdf MC33897 N 2003-04-24 MC33897, Single Wire CAN Transceiver /docs/en/data-sheet/MC33897.pdf /docs/en/data-sheet/MC33897.pdf Data Sheet N Y 980000996212993340 2022-12-07 pdf en Apr 24, 2012 Data Sheet t520 数据手册 Data Sheet Y N MC33897, Single Wire CAN Transceiver false zh zh 应用笔记 Application Note 2 3 3.0 English This application note provides guidelines for handling and assembly of SOIC package during Printed Circuit Board (PCB) assembly. 10jsBvfc PSP 3.5 MB None None documents None 10jsBvfc /docs/en/application-note/AN2409.pdf 3536520 /docs/en/application-note/AN2409.pdf AN2409 documents N N 2016-10-31 AN2409, Small Outline Integrated Circuit (SOIC) Package - Application Note /docs/en/application-note/AN2409.pdf /docs/en/application-note/AN2409.pdf Application Note N 645036621402383989 2024-01-19 pdf N en Oct 21, 2014 645036621402383989 Application Note Y N AN2409, Small Outline Integrated Circuit (SOIC) Package - Application Note 4 1.0 English The MC33781 and MC33784 together constitute NXP Semiconductors's implementation of the Distributed System Interface (DSI) Bus Standard, Version 2.02. 1225311007711718167766 PSP 1.0 MB None None documents None 1225311007711718167766 /docs/en/application-note/AN3670.pdf 1013814 /docs/en/application-note/AN3670.pdf AN3670 documents N N 2016-10-31 AN3670, Implementing a DSI Network Using the MC33781 and the MC33784 /docs/en/application-note/AN3670.pdf /docs/en/application-note/AN3670.pdf Application Note N 645036621402383989 2024-01-19 pdf N en Oct 29, 2008 645036621402383989 Application Note Y N AN3670, Implementing a DSI Network Using the MC33781 and the MC33784 选型指南 Selector Guide 1 5 12 English For system designers who want more efficient motor operation with variable speed and sensorless control, NXP offers H-bridge, brushed and brushless DC motor drivers required to complete system design. 1404924651029729642615 PSP 1.2 MB None None documents None 1404924651029729642615 /docs/en/product-selector-guide/INDCONTANLPRDFL.pdf 1202686 /docs/en/product-selector-guide/INDCONTANLPRDFL.pdf INDCONTANLPRDFL documents N N 2016-10-31 Analog Automotive and Industrial Selector Guide /docs/en/product-selector-guide/INDCONTANLPRDFL.pdf /docs/en/product-selector-guide/INDCONTANLPRDFL.pdf Selector Guide N 553557935274807777 2025-01-05 en Jan 29, 2021 553557935274807777 Selector Guide Y N Analog Automotive and Industrial Selector Guide 3 Chinese 1404924651029729642615zh PSP 1.2 MB None None documents None 1404924651029729642615 /docs/zh/product-selector-guide/INDCONTANLPRDFL.pdf 1202686 /docs/zh/product-selector-guide/INDCONTANLPRDFL.pdf INDCONTANLPRDFL documents N N 2016-10-31 Analog Automotive and Industrial Selector Guide /docs/zh/product-selector-guide/INDCONTANLPRDFL.pdf /docs/zh/product-selector-guide/INDCONTANLPRDFL.pdf Selector Guide N 553557935274807777 2025-01-05 pdf N zh Sep 18, 2014 553557935274807777 Selector Guide Y N 面向工业市场的模拟产品 - 简介 false 0 MC33897 downloads zh-Hans true 1 Y PSP 勘误表 1 /docs/en/errata/MC33897TER.pdf 2006-06-16 1150488466385720076358 PSP 1 Jun 16, 2006 Errata 勘误表 NXP is expanding silicon wafer capacity at Taiwan Semiconductor Manufacturing Company, LTD. (TSMC) located in Science Park, Taiwan. NXP is working with TSMC to ensure a smooth transition and is pursuing full automotive qualification of all transferred products.This errata sheet applies to the following device: MC33897TD, MC33897TEF, SC900800TD None /docs/en/errata/MC33897TER.pdf English 75065 None Errata 2022-12-07 /docs/en/errata/MC33897TER.pdf MC33897T, TSMC Silicon Errata /docs/en/errata/MC33897TER.pdf documents 155452329886410597 Errata N Y en None N t522 pdf 1.0 N MC33897T, TSMC Silicon Errata 75.1 KB MC33897T N 1150488466385720076358 应用笔记 2 /docs/en/application-note/AN2409.pdf 2016-10-31 10jsBvfc PSP 3 Oct 21, 2014 Application Note This application note provides guidelines for handling and assembly of SOIC package during Printed Circuit Board (PCB) assembly. None /docs/en/application-note/AN2409.pdf English documents 3536520 None 645036621402383989 2024-01-19 N /docs/en/application-note/AN2409.pdf AN2409, Small Outline Integrated Circuit (SOIC) Package - Application Note /docs/en/application-note/AN2409.pdf documents 645036621402383989 Application Note N en None Y pdf 3.0 N N AN2409, Small Outline Integrated Circuit (SOIC) Package - Application Note 3.5 MB AN2409 N 10jsBvfc /docs/en/application-note/AN3670.pdf 2016-10-31 1225311007711718167766 PSP 4 Oct 29, 2008 Application Note The MC33781 and MC33784 together constitute NXP Semiconductors's implementation of the Distributed System Interface (DSI) Bus Standard, Version 2.02. None /docs/en/application-note/AN3670.pdf English documents 1013814 None 645036621402383989 2024-01-19 N /docs/en/application-note/AN3670.pdf AN3670, Implementing a DSI Network Using the MC33781 and the MC33784 /docs/en/application-note/AN3670.pdf documents 645036621402383989 Application Note N en None Y pdf 1.0 N N AN3670, Implementing a DSI Network Using the MC33781 and the MC33784 1.0 MB AN3670 N 1225311007711718167766 数据手册 1 /docs/en/data-sheet/MC33897.pdf 2003-04-24 118pH9xC PSP 2 Apr 24, 2012 Data Sheet 数据手册 The 33897 Series provides a physical layer for digital communications purposes using a Carrier Sense Multiple Access/Collision Resolution (CSMA/CR) data link operating over a single wire medium. This is more commonly referred to as Single Wire Controller Area Network (CAN). None /docs/en/data-sheet/MC33897.pdf English 417848 None Data Sheet 2022-12-07 /docs/en/data-sheet/MC33897.pdf MC33897, Single Wire CAN Transceiver /docs/en/data-sheet/MC33897.pdf documents 980000996212993340 Data Sheet N Y en None Y t520 pdf 18.0 N MC33897, Single Wire CAN Transceiver 417.8 KB MC33897 N 118pH9xC 选型指南 1 /docs/zh/product-selector-guide/INDCONTANLPRDFL.pdf 2016-10-31 1404924651029729642615zh PSP 5 Sep 18, 2014 Selector Guide None /docs/zh/product-selector-guide/INDCONTANLPRDFL.pdf Chinese documents 1202686 None 553557935274807777 2025-01-05 N /docs/zh/product-selector-guide/INDCONTANLPRDFL.pdf 面向工业市场的模拟产品 - 简介 /docs/zh/product-selector-guide/INDCONTANLPRDFL.pdf documents 553557935274807777 Selector Guide N zh None Y pdf 3 N N Analog Automotive and Industrial Selector Guide 1.2 MB INDCONTANLPRDFL N 1404924651029729642615 true Y Products

文档

快速参考恩智浦 文档类别.

筛选条件

5 文件

紧凑列表

勘误表 (1)
应用笔记 (2)
数据手册 (1)
选型指南 (1)
