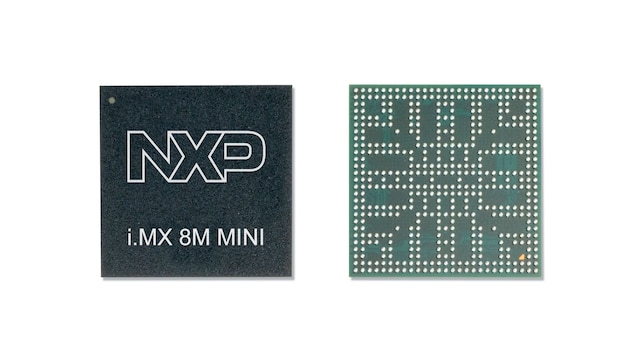

i.MX 8M Mini_Arm Cortex A53_Cortex M4

滚动图片以放大

i.MX 8M Mini是恩智浦首款嵌入式多核应用处理器，采用先进的14LPC FinFET工艺技术构建，提供更快的速度和更高的电源效率。凭借商业和工业级认证以及恩智浦产品长期供货计划的支持，i.MX 8M Mini家族可用于任何通用工业和物联网应用。

数据手册

参考手册

产品详情

框图

i.MX 8M Mini Family Block Diagram

获取框图PDF

特征

多核处理

4个Cortex-A53内核平台，每核运行频率高达1.8GHz
32KB L1-I缓存/ 32 kB L1-D缓存
512 kB L2缓存
1个Cortex-M4内核，运行频率高达400MHz
16 kB L1-I缓存/ 16 kB L2-D缓存

GPU

3D GPU (1个着色器，OpenGL^{^®} ES 2.0)
2D GPU

显示屏接口

1个MIPI DSI (4通道)，带PHY

视频播放

1080p60 VP9 Profile 0, 2 (10位)解码器, HEVC/H.265解码器, AVC/H.264 基线, Main, 高级解码器, VP8解码器
1080p60 AVC/H.264编码器, VP8编码器

音频

5个SAI (12Tx + 16Rx外部I2S通道), 8路PDM输入

摄像头接口

1个MIPI CSI (4通道)，带PHY

USB

2个USB 2.0控制器，带有集成PHY

PCIe

1个PCIe 2.0 (1通道) ，带L1低功耗子状态

以太网

1个千兆以太网(MAC)，带AVB和IEEE 1588, Energy Efficient Ethernet (EEE)，适用于低功耗器件

操作系统

Linux, Android, Windows 10 IoT内核, FreeRTOS

温度

消费电子(0°C至95°C Tj)
工业控制(-40°C至105°C Tj)

封装

FCBGA, 14x14 0.5mm间距

EdgeLock Assurance保障计划

i.MX 8M Mini应用处理器是EdgeLock Assurance保障计划的一部分，旨在满足行业标准，并采用恩智浦安全设计方法。

了解详情

购买/参数

‌ ‌ ‌	‌ ‌	‌ ‌	‌ ‌	‌ ‌	‌ ‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
