QorIQ® T1024/14和T1023/13单核和双核通信处理器

T1024
正常供应

滚动图片以放大

QorIQ®双核T1024和T1023通信处理器及单核QorIQ T1014和T1013通信处理器配备64位内核，基于Power Architecture®技术构建，提供网络、电信和工业联网应用所需的高性能数据通路加速架构(DPAA)和网络外设总线接口。QorIQ T系列平台为工业市场提供优化的功能，包括面向HMI的显示界面单元、面向工业协议卸载的QUICC Engine®以及针对高可靠性“始终在线”应用的ECC支持。

T1024和T1014处理器采用全功能23x23 mm封装，具备可扩展性，与四核T1042处理器(乃至八核T2081处理器)引脚兼容，能够以单系统设计实现灵活的价格和功耗调节。

QorIQ T1023和T1013通信处理器是接口和功耗经过优化的SoC，旨在为成本和功耗敏感型网络和工业系统提供出色的单核或双核性能。两种版本均为广受欢迎的32位QorIQ P10XX系列通信处理器提供出色的64位软件兼容和I/O升级路径。

框图

选择框图:

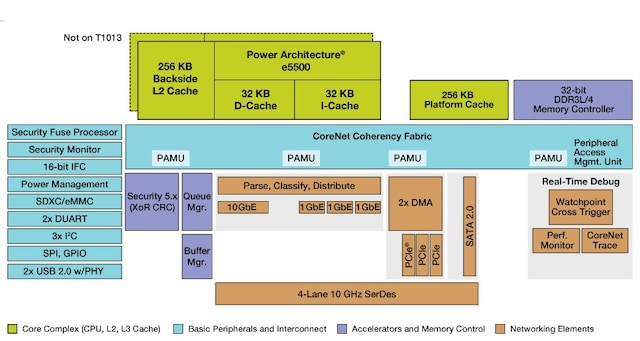

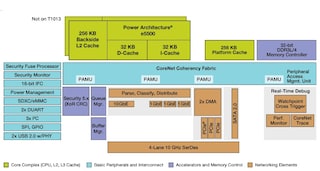

31538 T1023 BDTN

QorIQ<sup>&#174;</sup> T1013 and T1023 Communications Processors

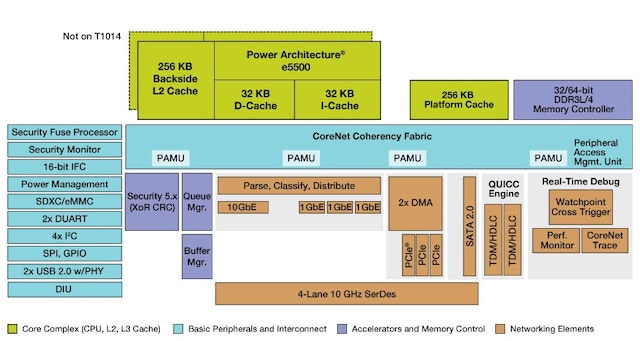

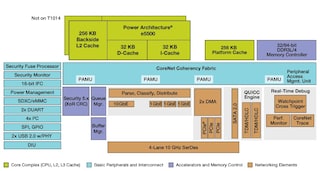

31538 T1024 BDTN

QorIQ<sup>&#174;</sup> T1014 and T1024 Communications Processors
获取框图PDF

特征

内核复合体

  • 单/双e5500内核，基于Power Architecture技术构建
  • 运行频率达1.4 GHz，带64位ISA支持
  • 指令有3个等级：用户、超级用户、管理程序
  • 混合32位模式，支持原有软件，并可向64位架构平稳过渡
  • 256 KB背面L2缓存

网络元件

  • SerDes
    • 4条高达10 Gbps的通道
    • 支持SGMII、QSGMII、PCIe和SATA
  • 以太网接口
    • 1x 10GbE、3x 1GbE或4x 1Gb Gigabit以太网接口，所有端口均带有MACsec

加速器和存储器控制

  • 32/64位DDR3L/4 SDRAM存储控制器，带ECC支持
    • 高达1600 MT/s
  • DPAA包含加速特性，适用以下功能：数据包解析、分类和分发
    • 支持调度、数据包排序和阻塞管理的队列管理
    • 支持硬件缓冲管理，可缓冲分配和取消分配
    • 集成安全加速(SEC)

基本外设和互连

  • CoreNet®平台缓存
    • 256 KB共享平台缓存
  • 分层互连结构
    • CoreNet结构支持相干和非相干事务，在CoreNet端点之间进行优先级排序和带宽分配
  • 附加的外设接口：一个串行ATA (SATA 2.0)控制器
    • 两个高速USB 2.0控制器，带有集成PHY
    • 增强型安全数字主机控制器(SD/MMC/eMMC)
    • 增强型串行外设接口(eSPI)
    • 两个I²C控制器
    • 4个UART
    • 支持NAND与NOR闪存的集成闪存控制器
  • DMA
    • 两个四通道
    • 高达4.1 Gbps的以太网MAC，作为DPAA的一部分
  • QUICC Engine®
    • 支持原有协议TDM、HDLC、UART和ISDN
  • 高速外设接口
    • 3个PCI Express® 2.0控制器

其他特性

  • 支持硬件虚拟化和分区执行
    • 额外特权等级，用于支持管理程序
  • QorIQ®可信架构
    • 安全引导、安全调试、篡改检测、易失性密钥存储
  • 本产品包含在我们的产品长期供货计划中，自推出后至少保证10年供货

更多

我们推荐以下四端口千兆位铜缆EEE PHY

F104S8A F104X8A
说明 QSGMII PHY标准温度 QSGMII PHY扩展温度
工作温度(°C) 0 - 125 -40 - 125
封装类型 12x12，QFN，138引脚，0.65mm引脚间距 12x12，QFN，138引脚，0.65mm引脚间距
了解更多 产品详情

购买/参数

‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
