2位双电源双向I3C/I²C总线和SPI电压电平转换器

P3A9606
正常供应
P3A9606 2-channel Voltage Level Translator

点击播放视频

P3A9606JK是一个2位双电源转换收发器，具有自动方向感测功能，可为传统的开漏I²C总线/SMBus应用、组合开漏和推挽式12.5MHz I3C总线应用或推挽式SPI应用(带两个设备)实现双向电压电平转换。

VCC(A)和VCC(B)均可由0.72V至1.98V之间的任何电压供电，因此，该器件适用于任何低电压节点(0.8V、1.2V和1.8V)之间的转换。

它有两个1位输入输出端口(An和Bn)，由一个输出使能输入(OE)控制。

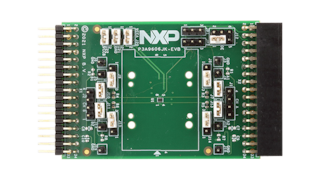

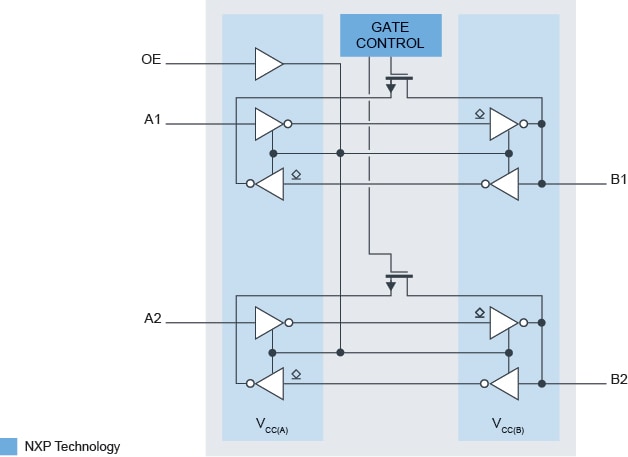

框图

P3A9606

P3A9606 Block Diagram
获取框图PDF

特性

一般特性

  • 电源电压范围较大：
    • VCC(A)：0.72V至1.98V，VCC(B)：0.72V至1.98V；VCC(A)≤VCC(B)
  • IOFF电路提供局部掉电模式操作
  • 输入可接受高达1.98V的电压，并可耐受1.98V的过电压
  • 为I3C、I²C总线、SMBus和SPI设备提供电压电平转换
  • 指定温度范围为-40°C至+85°C和-40°C至+125°C
  • 闭锁性能超过JESD 78B II类规定的100mA
  • 采用X2SON8 1.35x1.0x0.32mm封装，间距为0.35mm

ESD防护

  • HBM JESD22-A114E 2类超过2000V
  • CDM JESD22-C101E超过1000V

对比表

部件编号 VCC(A) VCC(B) 信号
PCA9306 1至3.6V 2至5.5V I²C
NTB0104 1.2至3.6V 1.65至5.5V SPI
P3A9606 0.72至1.98V 0.72至1.98V I²C、SPI或I3C

购买/参数

1 结果

包含 0 不推荐用于新设计

部件

展开描述

订购

计算机辅助设计模型

状态

Signal Application

Type VLT

Number of bits

VCC(A) (Min - Max)

VCC(B) (Min-Max)

Supply Current (Typ) (μA)

Bandwidth (Max) (MHz)

Input Type (TTL, CMOS, Schmitt Trigger)

Output Type (Open Drain, 3-State, Push-Pull, Pass-gate)

Ambient Operating Temperature (Min to Max) (℃)

AEC-Q100 compliant

封装类型

Package Dimensions (LxWxZ (mm))

预算报价（不含税）

P3A9606JK
数据手册

正常供应

I2C, I3C, SPI

BiDirectional FET w/one shot

2

0.72 to 1.98

0.72 to 1.98

3.5

52

CMOS

3-State, Pass-gate

-40 to 85

N

X2SON8

1.35 x 1 x 0.32

1K @ CNY1.87
