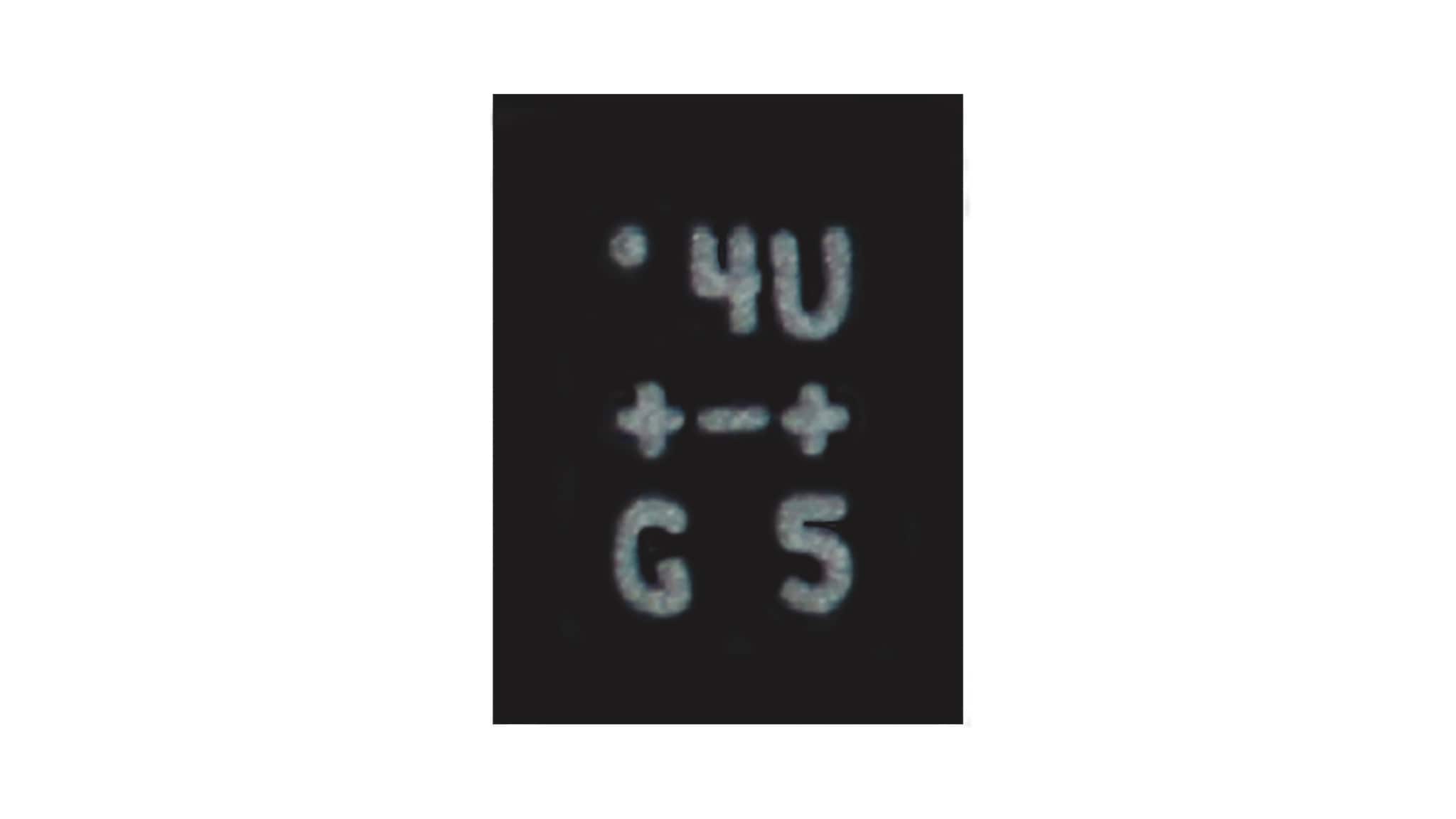

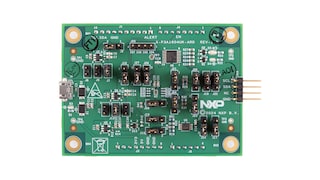

4位双路双向I3C/I²C总线、SMBus和SPI电压电平转换器

P3A1604
正常供应

滚动图片以放大

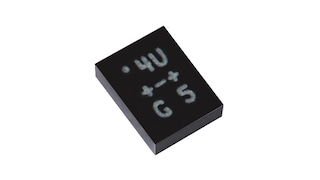

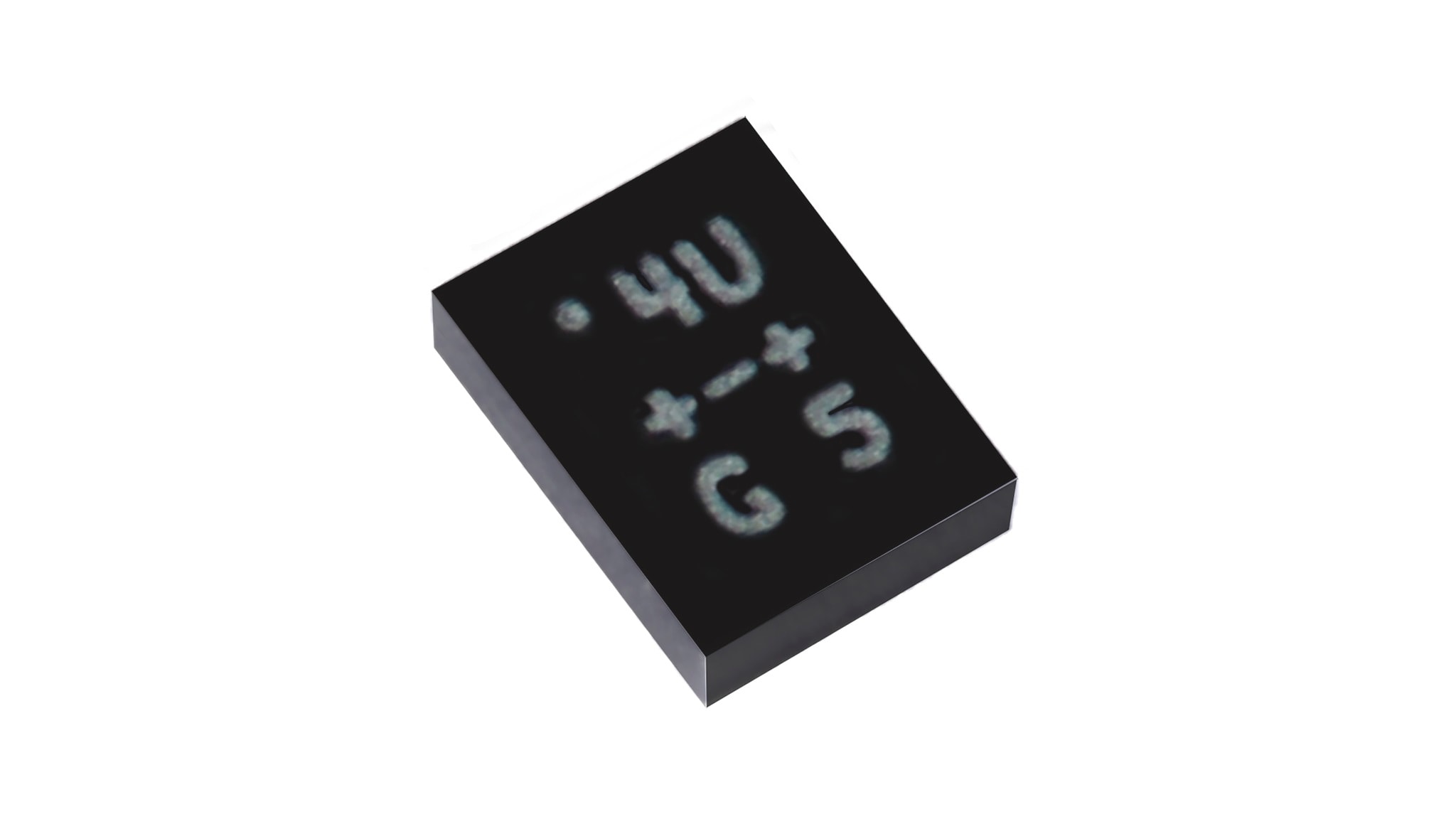

P3A1604UK是4位双电源转换收发器，具有自动方向感应功能，支持双向电压电平转换。P3A1604UK的电源电压范围较大，VCCA从0.72V到1.98V，VCCB从1.62V到3.63V。它支持I3C/I²C/SMBus/SPI应用。该器件使用先进的工艺节点来帮助转换最新的SoC/ASIC/MCU，以便在更高的电压轨上与外设连接。

框图

选择框图:

P3A1604内部

P3A1604UK Internal

P3A1604典型应用电路

P3A1604UK Typical Application Circuit
获取框图PDF

特性

主要特性

  • 电源电压范围较大：
    • VCCA：0.72V至1.98V，VCCB：1.62V至3.63V
    • A侧和OE输入可接受高达1.98V的电压
    • B侧输入可接受高达3.63V的电压
  • 温度范围：规定为-40°C至+125°C
  • 支持I3C/I²C/SMBus/SPI接口
  • 自动方向感应的双向电压电平转换
  • 无需电源排序
  • 每比特最大数据速率(DDR)：开漏：6.8Mbps (3.4MHz)，推挽：40Mbps (20MHz)
  • 更长的单触发脉冲，用于驱动更大的电容负载，同时大大减少振铃和过冲
  • I/O锁存电流为100mA，JESD 78

ESD防护

  • HBM JESD22-A114E 2类超过2000V
  • CDM JESD22-C101E超过500V

封装

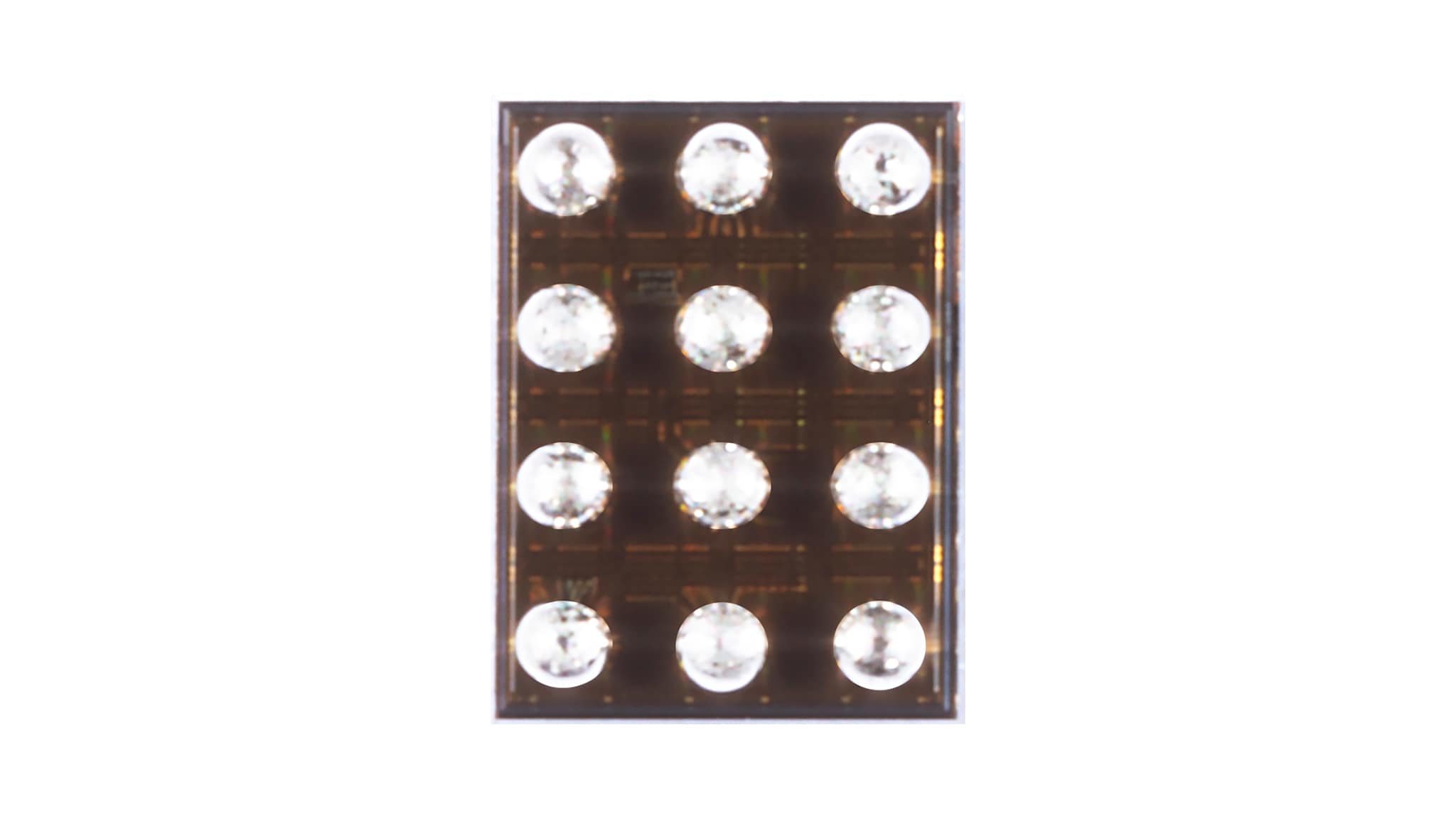

  • WLCSP12 (1.405mmx1.055mm，0.35mm间距)

购买/参数

‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
N true 0 PSPP3A1604zh 1 数据手册 Data Sheet t520 1 zh zh zh 数据手册 Data Sheet 1 1 1.0 English The P3A1604UK is a 4-bit, dual supply translating transceiver with auto direction sensing, that enables bidirectional voltage level translation. It features four 1-bit input-output ports (A and B), one output enable input (OE), and two supply pins (VCCA and VCCB). VCCA can be supplied at any voltage between 0.72 V and 1.98 V. VCCB can be supplied at any voltage between 1.62 V and 3.63 V. This flexibility makes the device suitable for translating between any of the voltage nodes (0.8 V, 1.2 V, 1.8 V, 2.5 V, and 3.3 V). Pins A and OE are referenced to VCCA and pin B is referenced to VCCB. A LOW level at pin OE causes the outputs to assume a high-impedance OFF-state. 1734375388336714730145 PSP 454.9 KB None None documents None 1734375388336714730145 /docs/en/data-sheet/P3A1604UK.pdf 454873 /docs/en/data-sheet/P3A1604UK.pdf P3A1604UK documents N N 2024-12-16 P3A1604UK: 4-Bit Dual Supply Translating Transceiver; Auto Direction Sensing Data Sheet /docs/en/data-sheet/P3A1604UK.pdf /docs/en/data-sheet/P3A1604UK.pdf Data Sheet N 980000996212993340 2025-01-15 pdf N en Dec 10, 2024 980000996212993340 Data Sheet Y N P3A1604UK: 4-Bit Dual Supply Translating Transceiver; Auto Direction Sensing Data Sheet false 0 P3A1604 downloads zh-Hans true 1 Y PSP Y Y 数据手册 1 /docs/en/data-sheet/P3A1604UK.pdf 2024-12-16 1734375388336714730145 PSP 1 Dec 10, 2024 Data Sheet The P3A1604UK is a 4-bit, dual supply translating transceiver with auto direction sensing, that enables bidirectional voltage level translation. It features four 1-bit input-output ports (A and B), one output enable input (OE), and two supply pins (VCCA and VCCB). VCCA can be supplied at any voltage between 0.72 V and 1.98 V. VCCB can be supplied at any voltage between 1.62 V and 3.63 V. This flexibility makes the device suitable for translating between any of the voltage nodes (0.8 V, 1.2 V, 1.8 V, 2.5 V, and 3.3 V). Pins A and OE are referenced to VCCA and pin B is referenced to VCCB. A LOW level at pin OE causes the outputs to assume a high-impedance OFF-state. None /docs/en/data-sheet/P3A1604UK.pdf English documents 454873 None 980000996212993340 2025-01-15 N /docs/en/data-sheet/P3A1604UK.pdf P3A1604UK: 4-Bit Dual Supply Translating Transceiver; Auto Direction Sensing Data Sheet /docs/en/data-sheet/P3A1604UK.pdf documents 980000996212993340 Data Sheet N en None Y pdf 1.0 N N P3A1604UK: 4-Bit Dual Supply Translating Transceiver; Auto Direction Sensing Data Sheet 454.9 KB P3A1604UK N 1734375388336714730145 true Y Products
