带数据通路的QorIQ® P2040/P2041多核通信处理器

P2040
停产
恩智浦优先级支持 - 帮助您更快地进入市场

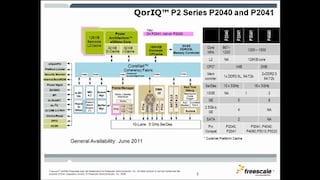

点击播放视频

QorIQ® P2040和P2041四核处理器将P4平台领先的高端架构特性融入了低端和中端四核产品。

它们的软件与P1系列的成员以及P3、P4和P5系列中的所有设备兼容。这使得客户能够将软件用于整个QorIQ产品线。P2040和P2041引脚兼容，都采用23 x 23 mm封装。

框图

NXP QorIQ P2040 Communication Processor Block Diagram

NXP QorIQ P4020 Communication Processor Block Diagram
获取框图PDF

特征

内核复合体

  • 四核e500mc内核，频率可达1.2 GHz (P2040)和1.5 GHz (P2041)，带有32 KB I/D L1
    • 每内核128 KB L2缓存(仅P2041)
  • 带1 MB CoreNet平台缓存的CoreNet®交换结构

网络元件

  • 10个SerDes通道，高达5 GHz，支持3个PCI Express® 2.0，两个串行RapidIO® (1.3+2.1)，5个SGMII，4个2.5 Gb/s的SGMII，XAUI (仅P2041)，两个串行ATA 2.0，Aurora调试端口

加速器和存储器控制

  • 64位(带ECC则为72位) DDR3/3L存储控制器，数据频率高达1.2 GHz (P2040)和1.3 GHz (P2041)
  • 硬件加速
    • 帧管理器，进行数据包解析、分类和管控
    • 队列管理器，进行调度和工作负载分配
    • 模式匹配引擎，用于正则表达式搜索
    • 安全模块，进行加密算法加速
    • RapidIO消息管理器，用于9和11类消息传送

基本外设和互连

  • SD/MMC，两个DUART，4个I²C，SPI，两个RGMII，两个USB 2.0带集成PHY，16位本地总线
  • 783引脚FCPBGA封装，23 mm x 23 mm

其他特性

  • 硬件管理程序，在内核之间进行安全的操作系统分区
  • 可信引导功能，确保只有正确的代码被引导，且代码不能反向工程

对比表

P2040 P2041
内核 4 4
内核频率 667至1.2 GHz 1.2至1.5 GHz
L2缓存 - 128 KB/内核
L3/平台缓存 1 MB 1 MB
DDR3 1x 32/64位 1x 32/64位
GbE - 5个1千兆以太网，1个10千兆以太网
SERDES 10通道 10通道
安全性 可信 可信

购买/参数

1-10 / 22 结果

不包含 22 不推荐用于新设计

部件

展开描述

计算机辅助设计模型

状态

P2040NSE7HLC
数据手册

使用寿命终止

P2040NSE7MMC
数据手册

使用寿命终止

P2040NSN7FLC
数据手册

使用寿命终止

P2040NSN7HLC
数据手册

使用寿命终止

P2040NSN7KLC
数据手册

使用寿命终止

P2040NSN7MMC
数据手册

使用寿命终止

P2040NXE7MMC
数据手册

使用寿命终止

P2040NXN7MMC
数据手册

使用寿命终止

P2041NSE7MMC
数据手册

使用寿命终止

P2041NSE7NNC
数据手册

使用寿命终止
