QorIQ® P5020和P5010 64位单核和双核通信处理器

P5020
停产

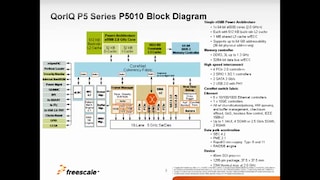

QorIQ<sup>&#174;</sup> P5020/P5010 - Product Introduction

点击播放视频

双核P5020和单核P5010处理器是基于Power Architecture®技术，采用e5500内核的64位处理器。频率范围可扩展到2.0GHz，具有缓存容量大、单周期效率高等特点，适用于控制平台和需要较高单线程性能的计算应用。

P5平台沿袭了P4平台先进的架构特性，包括可降低延迟的三级缓存，提供可靠的虚拟化支持的硬件管理程序，减轻内核数据包处理负担的数据通路加速架构(DPAA)，以及消除内部瓶颈的CoreNet®交换结构。P5平台与P4平台以及P3平台架构兼容。

框图

P5020 BD

QorIQ P5020/10 64-bit Single- and Dual-Core Communications Processors
获取框图PDF

特征

内核复合体

  • 单或双64位e5500内核，运行频率为2.0 GHz
  • 三级缓存：32 KB I/D L1；每内核512 KB专用L2；2MB共享L3
  • 运行频率最高达2.0 GHz，支持64位ISA (符合Power Architecture v2.06)
  • 指令有3个等级：用户、超级用户、管理程序
  • 混合32位模式，支持原有软件，并可向64位架构平稳过渡
  • 2.0 MB配置为双1 MB平台缓存

网络元件

  • SerDes
    • 18个通道，高达5 Gbps
    • 支持SGMII，串行RapidIO®，XAUI，PCI Express® (PCIe)修订版1.1/2.0，SATA
  • 以太网接口
    • 10 Gbps以太网MAC
    • 5个1 Gbps以太网MAC

加速器和存储器控制

  • 两个64位DDR3/3L SDRAM存储器控制器，支持ECC和交错存取功能
    • 高达1300MT/S
  • 帧管理器，用于数据包处理
  • 队列管理器，用于监控、调度和分配工作负载
  • 安全模块，进行加密算法加速
  • RAID5/6，用于存储应用奇偶计算
  • RapidIO®消息管理器，用于9和11类消息传送
  • 模式匹配引擎，用于正则表达式搜索

基本外设和互连

  • 多达4个PCIe 2.0/3.0控制器
  • 两个串行ATA (SATA 2.0)控制器
  • 两个USB 2.0控制器，带有集成PHY
  • 增强型安全数字主机控制器(SD/MMC/eMMC)
  • 两个I²C控制器
  • 两个DUART

其他特性

  • 硬件管理程序，在内核之间进行安全的操作系统分区
  • 可信引导功能，确保只有正确的代码被引导，且代码不能反向工程
  • 本产品包含在恩智浦产品长期供货计划中， 自推出后至少保证10年供货

更多

对比表

对照表

P5020 P5010
内核 2 1
内核频率 1.6至2.0 GHz 1.6至2.0 GHz
L2缓存 512 KB 512 KB
L3/平台缓存 2 MB 1 MB
DDR3 2x 64位 1x 64位
GbE 5x 1 GbE，1x 10 GbE 5x 1 GbE，1x 10 GbE
SERDES 18通道 18通道
安全性 可信 可信
