Low-Power PowerQUICC® II Pro Processor with DDR2, PCI, 1 GB Ethernet, Security, USB
Rapid growth of personal and premium content has created a need for deploying more interactive multimedia services inside the home. The MPC8313E processor family enables feature-rich applications that enhance the digital home experience. The cost-effective MPC8313E communications processor family meets the requirements of several small office/home office (SOHO), printing, IP services and industrial control applications. It provides more CPU performance, additional functionality and faster interfaces while addressing important time to market, price, power consumption and board real estate requirements. The introduction of Gigabit Ethernet (SGMII), high-speed USB 2.0 and low-power management makes it stand out in the marketplace. For extremely precise clock synchronization for applications such as time-sensitive telecommunications services, industrial network switches, powerline networks and test/measurement devices, the MPC8313E features integrated IEEE® 1588 time synchronization, the leading-edge standard.
产品详情

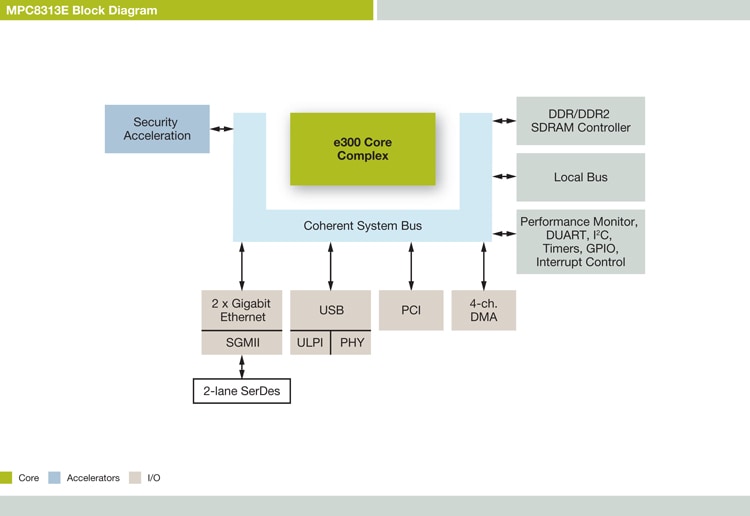

框图
Features
- Core: e300c3, 2-IU, w/FPU, up to 400 MHz
- L1 cache: 16 KB I/D
- Memory controller: 16/32-bit DDR2-333
- Local bus controller: 25b/8b dedicated or 25b/16b mux add/data, up to 66 MHz
- PCI: one 32-bit up to 66 MHz wake-on-PME
- Ethernet: two 10/100/1000 MACs, SGMII, 98145.452
- 98145.452: one high-speed USB 2.0 host/device+HS PHY,
wake-on-USB - Security: SEC 2.2 (MPC8313E only)
- UART: dual
- I²C: dual
- Serial peripheral interface: one
- Boot options: NOR, NAND
- Internal controller: PIC
- Mux/Dedicated GPIO: 10/16
- DMA: four channels
- Estimated core power: 1.2W
- Power management: standby power <300 mW
- This product is included in NXP®.s product longevity program, with assured supply for a minimum of 10 years after launch
部件编号包含： MPC8313CVRADDC, MPC8313CVRAFFC, MPC8313CVRAGDC, MPC8313CZQAFFC, MPC8313ECVRADDC, MPC8313ECVRAFFC, MPC8313ECVRAGDC, MPC8313EVRADDB, MPC8313EVRADDC, MPC8313EVRAFFC, MPC8313EVRAGDC, MPC8313VRADDC, MPC8313VRAFFC, MPC8313VRAGDC.
