±2g/±4g/±8g，低重力加速度，14位数字加速度传感器

MMA8451Q 使用寿命终止

滚动图片以放大

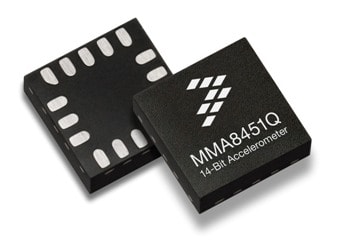

恩智浦MMA8451Q是具有14位数据精度的低功耗三轴电容式微机械加速度传感器，具有以下功能：

  • 具有灵活的、用户可编程的嵌入式功能，可对两个中断引脚进行配置。
  • 嵌入式中断功能可以节省整体功耗，使主处理器不必连续轮询数据。
  • 可以存取低通滤波数据，也可以存取高通滤波数据，从而最大限度地减少了颠簸检测对数据分析的需求，实现更快的数据转换。
  • MMA8451Q传感器能够灵活地组合其可配置的嵌入式功能，以产生惯性唤醒中断信号。这一特性使得传感器能够有效地监测各类事件，同时在非工作状态下保持低功耗模式

框图

MMA8452Q加速度传感器结构框图

MMA8452Q Acceleration Sensor Block Diagram
获取框图PDF

特性

主要特性

  • 1.95至3.6V电源电压
  • 1.6至3.6V接口电压
  • 全量程动态可选：±2g/±4g/±8g
  • 输出数据频率（ODR）范围：1.56Hz至800Hz
  • 99μg/√Hz噪声
  • 14位和8位数字输出
  • I²C数字输出接口（采用4.7kΩ上拉电阻时，运行频率可达2.25MHz）
  • 两个可编程中断引脚，支持7个中断源
  • 可以通过编程设置滞后效应来检测方向（纵向/横向）
  • ODR自动变化，自动唤醒并返回到睡眠状态
  • 32采样FIFO
  • 每个采样均以FIFO方式提供高通滤波数据
  • 自检
  • 符合RoHS规范
  • 电流消耗：6μA至165μA

3个嵌入式通道用于运动检测

  • 自由落体或运动检测：一个通道
  • 脉冲检测：一个通道
  • 颠簸检测：一个通道

产品长期供货计划

购买/参数

2 结果

不包含 2 不推荐用于新设计

部件

展开描述

订购

计算机辅助设计模型

状态

预算报价（不含税）

Ambient Operating Temperature (Min to Max) (℃)

感应轴

Product Application

Purpose

AEC-Q100 compliant

电源电压[最小]（V）

电源电压[最大]（V）

输入电压[最小到最大]（V）

Sensor Range

封装类型

Package Dimensions (LxWxZ (mm))

通信协议

Number of axis

MMA8451Q
数据手册

使用寿命终止

1K @ CNY7.32

-40 to 85

XYZ

Industrial, Medical

Central-ECU, High Performance, Low-power

N

1.95

3.6

1.95 to 3.6

Low-g

VQFN16

3 x 3 x 1

I²C

3

MMA8451QT
数据手册

使用寿命终止

1K @ CNY7.47

-40 to 85

XYZ

Industrial, Medical

Central-ECU, High Performance, Low-power

N

1.95

3.6

1.95 to 3.6

Low-g

VQFN16

3 x 3 x 1

I²C

3
