±2g/±4g/±8g，低重力加速度，12位数字加速度传感器

MMA8452Q
使用寿命终止
  • 本页面包含有关样品阶段产品的信息。此处的规格和信息如有更改，恕不另行通知。如需了解其他信息，请联系支持人员或您的销售代表。

滚动图片以放大

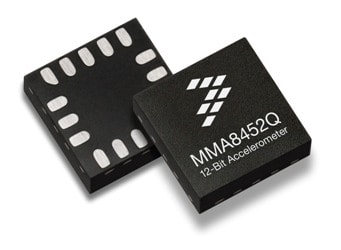

恩智浦MMA8452Q是具有12位数据精度的低功耗三轴电容式微机械加速度传感器，具有以下功能：

  • 具有灵活的、用户可编程的嵌入式功能，可对两个中断引脚进行配置。
  • 嵌入式中断功能可以节省整体功耗，使主处理器不必连续轮询数据。
  • 具有各种量程（±2g/±4g/±8g）供用户选择，可实时输出高通滤波数据和未滤波的数据。
  • MMA8452Q传感器能够灵活地组合其可配置的嵌入式功能，以产生惯性唤醒中断信号。这一特性使该传感器能够有效地监测各类事件，同时在非工作状态下保持低功耗模式

产品详情

框图

MMA8452Q加速度传感器结构框图

MMA8452Q Acceleration Sensor Block Diagram
获取框图PDF

特性

主要特性

  • 1.95至3.6V电源电压
  • 1.6至3.6V接口电压
  • 全量程动态可选：±2g/±4g/±8g
  • 输出数据频率（ODR）范围：1.56Hz至800Hz
  • 99μg/√Hz噪声
  • 12位和8位数字输出
  • I²C数字输出接口（采用4.7kΩ上拉电阻时，运行频率可达2.25MHz）
  • 两个可编程中断引脚，支持6个中断源
  • 可以通过编程设置滞后效应来检测方向（纵向/横向）
  • ODR自动变化，自动唤醒并返回睡眠状态
  • 实时提供经过高通滤波器的数据
  • 自检
  • 符合RoHS规范
  • 电流消耗：6μA至165μA

3个嵌入式通道用于运动检测

  • 自由落体或运动检测：一个通道
  • 脉冲检测：一个通道
  • 颠簸检测：一个通道

产品长期供货计划
