恩智浦®模拟加速度传感器

FXLN83xxQ
使用寿命终止
  • 建议不要在新设计中使用本页介绍的产品。
振动传感和监控 - 演示

点击播放视频

恩智浦®FXLN83xxQ模拟加速度传感器旨在支持面向工业、医疗和篡改检测应用的模拟功能。

  • 为低电压微控制器提供接口兼容性和简便性
  • 出色的模拟性能
  • FXLN83xxQ加速度传感器包含在恩智浦长期供货计划内。

产品详情

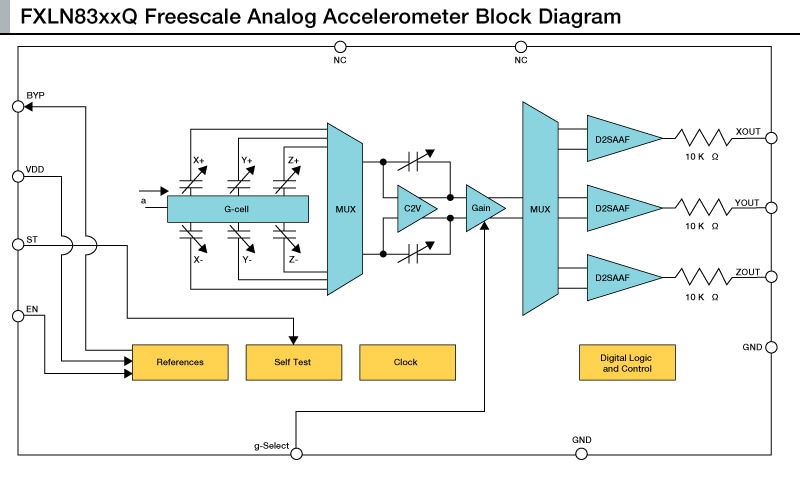

框图

30282_FXLN83XXQ_BD

NXP<sup>&#174;</sup> Low g Xtrinsic Accelerometer
获取框图PDF

特性

  • 1.71V至3.6V电源电压
  • ±2，±4，±8，±16g动态可选择
  • 28.62，57.25，114.5，229.0mV/g灵敏度
  • 非比例模拟并行输出
  • 可见焊点检测引脚
  • QFN 3x3x1.05mm，0.65mm间距封装

购买/参数

‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
N true 0 PSPFXLN83xxQzh 6 应用笔记 Application Note t789 1 手册 Brochure t518 1 数据手册 Data Sheet t520 1 简介 Fact Sheet t523 2 选型指南 Selector Guide t528 1 zh 2 1 FXLN8361Q,FXLN8362Q,FXLN8371Q,FXLN8372Q 2.0 English FXLN83xxQ is a family of 3-axis, low-power, low-g, analogoutput accelerometers that consist of an acceleration sensor along with a CMOS signal conditioning and control ASIC in a 3x3x1 mm QFN package. 1405971324458713045466 PSP 379.9 KB None None documents None 1405971324458713045466 /docs/en/data-sheet/FXLN83xxQ.pdf 379865 /docs/en/data-sheet/FXLN83xxQ.pdf FXLN83XXQ N N 2016-10-31 Freescale FXLN83xxQ 3-Axis Low-Power Analog-Output Accelerometer /docs/en/data-sheet/FXLN83xxQ.pdf /docs/en/data-sheet/FXLN83xxQ.pdf Data Sheet N Y 980000996212993340 2022-12-07 pdf N en Jul 21, 2014 Data Sheet t520 数据手册 Data Sheet Y N Freescale FXLN83xxQ 3-Axis Low-Power Analog-Output Accelerometer 2 0 English The FXLN83xxQ NXP accelerometers are 3-axis high-performance that provide analog capability for industrial, medical and tamper detection applications. These accelerometers can also be used for vibration detection for battery operated applications with extended temperature range and bandwidth options. Additionally, these scalable accelerometers provide interface compatibility and simplicity for low-voltage microcontrollers (MCUs). 1405458421937706449772 PSP 315.2 KB None None documents None 1405458421937706449772 /docs/en/fact-sheet/FXLN83xxQFS.pdf 315154 /docs/en/fact-sheet/FXLN83xxQFS.pdf FXLN83XXQFS N N 2016-10-31 FXLN83xxQ Freescale Accelerometers - Fact Sheet /docs/en/fact-sheet/FXLN83xxQFS.pdf /docs/en/fact-sheet/FXLN83xxQFS.pdf Fact Sheet N Y 736675474163315314 2022-12-07 pdf N en Jul 15, 2014 Fact Sheet t523 简介 Fact Sheet Y N FXLN83xxQ Freescale Accelerometers - Fact Sheet true zh zh 应用笔记 Application Note 1 3 1.0 English The FXLN83xxQ accelerometers expand Our portfolio, adding best-in-class analog performance. These accelerometers are designed to support analog capability for&#13;&#10;industrial, medical, and tamper-detection applications. Additionally, these accelerometers provide interface&#13;&#10;compatibility and simplicity for low-voltage microcontrollers&#13;&#10;(MCUs). The FXLN83xxQ accelerometers are designed&#13;&#10;specifically for the Industrial market and are, therefore, part of&#13;&#10;Our 1418075291130713049014 PSP 195.5 KB None None documents None 1418075291130713049014 /docs/en/application-note/AN4992.pdf 195540 /docs/en/application-note/AN4992.pdf AN4992 documents N N 2016-10-31 AN4992, Upgrading the the MMA7330L to the FXLN83xxQ - Application note /docs/en/application-note/AN4992.pdf /docs/en/application-note/AN4992.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Dec 8, 2014 645036621402383989 Application Note Y N AN4992, Upgrading the the MMA7330L to the FXLN83xxQ - Application note 手册 Brochure 1 4 2 English NXP provides a broad portfolio of accelerometers, motion and Pressure sensors designed for high-functionality, accuracy and reliability for medical applications 1542831695480719843505 PSP 1.2 MB None None documents None 1542831695480719843505 /docs/en/brochure/MEDSENSORSA4BR.pdf 1243036 /docs/en/brochure/MEDSENSORSA4BR.pdf MEDSENSORSA4BR documents N N 2018-11-21 Motion and Pressure Sensors for Medical Applications - Brochure /docs/en/brochure/MEDSENSORSA4BR.pdf /docs/en/brochure/MEDSENSORSA4BR.pdf Brochure N 712453003803778552 2025-02-25 pdf N en Jan 11, 2019 712453003803778552 Brochure Y N Motion and Pressure Sensors for Medical Applications - Brochure 简介 Fact Sheet 1 5 13 English Overview Over the past 25 years, NXP Semiconductors Sensor Products Division has supplied the world with more than 650 million micro-electromechanical systems (MEMS)-based sensors. 1092086607381736729272 PSP 2.2 MB None None documents None 1092086607381736729272 /docs/en/fact-sheet/SNSRSOLUTNTMFS.pdf 2216251 /docs/en/fact-sheet/SNSRSOLUTNTMFS.pdf SNSRSOLUTNTMFS documents N N 2016-10-31 Sensor Solutions /docs/en/fact-sheet/SNSRSOLUTNTMFS.pdf /docs/en/fact-sheet/SNSRSOLUTNTMFS.pdf Fact Sheet N 736675474163315314 2025-02-25 pdf N en Feb 12, 2020 736675474163315314 Fact Sheet Y N Sensor Solutions 选型指南 Selector Guide 1 6 13 English For system designers who want to work with various sensor types such as accelerometers, pressure sensors and magnetic sensors for applications in automotive, industrial IoT and medical. 1424471489332715853854 PSP 253.0 KB None None documents None 1424471489332715853854 /docs/en/product-selector-guide/SENSSELECT.pdf 252964 /docs/en/product-selector-guide/SENSSELECT.pdf SENSSELECT documents N N 2016-10-31 Sensor Product Selector Guide /docs/en/product-selector-guide/SENSSELECT.pdf /docs/en/product-selector-guide/SENSSELECT.pdf Selector Guide N 553557935274807777 2025-02-25 pdf N en May 13, 2024 553557935274807777 Selector Guide Y N Sensor Product Selector Guide false 0 FXLN83xxQ downloads zh-Hans true 1 Y PSP 应用笔记 1 /docs/en/application-note/AN4992.pdf 2016-10-31 1418075291130713049014 PSP 3 Dec 8, 2014 Application Note The FXLN83xxQ accelerometers expand Our portfolio, adding best-in-class analog performance. These accelerometers are designed to support analog capability for&#13;&#10;industrial, medical, and tamper-detection applications. Additionally, these accelerometers provide interface&#13;&#10;compatibility and simplicity for low-voltage microcontrollers&#13;&#10;(MCUs). The FXLN83xxQ accelerometers are designed&#13;&#10;specifically for the Industrial market and are, therefore, part of&#13;&#10;Our None /docs/en/application-note/AN4992.pdf English documents 195540 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN4992.pdf AN4992, Upgrading the the MMA7330L to the FXLN83xxQ - Application note /docs/en/application-note/AN4992.pdf documents 645036621402383989 Application Note N en None Y pdf 1.0 N N AN4992, Upgrading the the MMA7330L to the FXLN83xxQ - Application note 195.5 KB AN4992 N 1418075291130713049014 手册 1 /docs/en/brochure/MEDSENSORSA4BR.pdf 2018-11-21 1542831695480719843505 PSP 4 Jan 11, 2019 Brochure NXP provides a broad portfolio of accelerometers, motion and Pressure sensors designed for high-functionality, accuracy and reliability for medical applications None /docs/en/brochure/MEDSENSORSA4BR.pdf English documents 1243036 None 712453003803778552 2025-02-25 N /docs/en/brochure/MEDSENSORSA4BR.pdf Motion and Pressure Sensors for Medical Applications - Brochure /docs/en/brochure/MEDSENSORSA4BR.pdf documents 712453003803778552 Brochure N en None Y pdf 2 N N Motion and Pressure Sensors for Medical Applications - Brochure 1.2 MB MEDSENSORSA4BR N 1542831695480719843505 数据手册 1 /docs/en/data-sheet/FXLN83xxQ.pdf 2016-10-31 1405971324458713045466 PSP 1 Jul 21, 2014 Data Sheet 数据手册 FXLN83xxQ is a family of 3-axis, low-power, low-g, analogoutput accelerometers that consist of an acceleration sensor along with a CMOS signal conditioning and control ASIC in a 3x3x1 mm QFN package. None /docs/en/data-sheet/FXLN83xxQ.pdf English 379865 None Data Sheet 2022-12-07 N /docs/en/data-sheet/FXLN83xxQ.pdf Freescale FXLN83xxQ 3-Axis Low-Power Analog-Output Accelerometer /docs/en/data-sheet/FXLN83xxQ.pdf documents 980000996212993340 Data Sheet N Y en None Y t520 pdf 2.0 N N Freescale FXLN83xxQ 3-Axis Low-Power Analog-Output Accelerometer FXLN8361Q,FXLN8362Q,FXLN8371Q,FXLN8372Q 379.9 KB FXLN83XXQ N 1405971324458713045466 简介 2 /docs/en/fact-sheet/SNSRSOLUTNTMFS.pdf 2016-10-31 1092086607381736729272 PSP 5 Feb 12, 2020 Fact Sheet Overview Over the past 25 years, NXP Semiconductors Sensor Products Division has supplied the world with more than 650 million micro-electromechanical systems (MEMS)-based sensors. None /docs/en/fact-sheet/SNSRSOLUTNTMFS.pdf English documents 2216251 None 736675474163315314 2025-02-25 N /docs/en/fact-sheet/SNSRSOLUTNTMFS.pdf Sensor Solutions /docs/en/fact-sheet/SNSRSOLUTNTMFS.pdf documents 736675474163315314 Fact Sheet N en None Y pdf 13 N N Sensor Solutions 2.2 MB SNSRSOLUTNTMFS N 1092086607381736729272 /docs/en/fact-sheet/FXLN83xxQFS.pdf 2016-10-31 1405458421937706449772 PSP 2 Jul 15, 2014 Fact Sheet 简介 The FXLN83xxQ NXP accelerometers are 3-axis high-performance that provide analog capability for industrial, medical and tamper detection applications. These accelerometers can also be used for vibration detection for battery operated applications with extended temperature range and bandwidth options. Additionally, these scalable accelerometers provide interface compatibility and simplicity for low-voltage microcontrollers (MCUs). None /docs/en/fact-sheet/FXLN83xxQFS.pdf English 315154 None Fact Sheet 2022-12-07 N /docs/en/fact-sheet/FXLN83xxQFS.pdf FXLN83xxQ Freescale Accelerometers - Fact Sheet /docs/en/fact-sheet/FXLN83xxQFS.pdf documents 736675474163315314 Fact Sheet N Y en None Y t523 pdf 0 N N FXLN83xxQ Freescale Accelerometers - Fact Sheet 315.2 KB FXLN83XXQFS N 1405458421937706449772 选型指南 1 /docs/en/product-selector-guide/SENSSELECT.pdf 2016-10-31 1424471489332715853854 PSP 6 May 13, 2024 Selector Guide For system designers who want to work with various sensor types such as accelerometers, pressure sensors and magnetic sensors for applications in automotive, industrial IoT and medical. None /docs/en/product-selector-guide/SENSSELECT.pdf English documents 252964 None 553557935274807777 2025-02-25 N /docs/en/product-selector-guide/SENSSELECT.pdf Sensor Product Selector Guide /docs/en/product-selector-guide/SENSSELECT.pdf documents 553557935274807777 Selector Guide N en None Y pdf 13 N N Sensor Product Selector Guide 253.0 KB SENSSELECT N 1424471489332715853854 true Y Products

文档

快速参考恩智浦 文档类别.

筛选条件

6 文件

紧凑列表

应用笔记 (1)
手册 (1)
数据手册 (1)
简介 (2)
选型指南 (1)

设计文件

硬件

快速参考恩智浦 板类型.
筛选条件

1 硬件产品

工程服务

3 工程服务

要查找支持该产品的其他合作伙伴产品，请访问我们的 合作伙伴市场.
