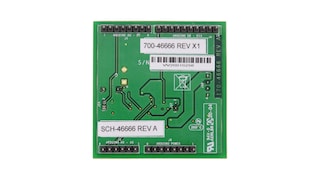

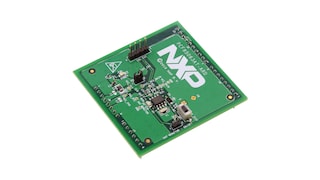

PCF85063AT-ARD
-
PCF85063AT-ARD Arduino® Shield - Tiny Real-Time Clock.
PCF85063AT Arduino Shield
- Arduino Shield规格的PCF85063AT微型实时时钟
Related Hardware
快速参考恩智浦 板类型.
- 模拟技术工具箱
- PCF85063AT-ARD Arduino Shield | 微型实时时钟
Arduino Shield -I2C总线
在与Arduino R3引脚布局兼容的板上，PCF85063AT Arduino Shield具有大多数RTC功能。图形界面允许用户轻松探索RTC的不同功能。此外，嵌入式驱动程序和演示应用可以作为快速入门的参考代码。
产品详情
特征
Power supply
- Supply voltage: 0.9V to 5.5V
- Low current (0.22 µA @ VDD 3.3V and 25°C)
Interface
- 400kHz two-line I²C-bus interface
Features
- Calendar support based on 32.768 kHz quartz crystal (Year, Month, Day, Weekday, Hours, Minutes and Seconds)
- Alarm function
- Countdown timer
- Oscillator stop detection function
- Minute and half minute interrupt
- Interrupt output
- Programmable clock output for peripheral devices (TestPoint):
- 32.768 kHz
- 16.384 kHz
- 8.192 kHz
- 4.096 kHz
- 2.048 kHz
- 1.024 kHz
- 1 Hz
Package
- SO8 - plastic small outline package; 8 leads; body width 3.9 mm; DFN2626-10
- plastic thermal enhanced extremely thin small outline package; no leads; 10 terminals; body 2.6 x 2.6 x 0.5 mm;
- TSSOP8 - plastic thin shrink small outline package; 8 leads; body width 3 mm
