基于MFRC523的PEGODA非接触式智能卡读卡器

MFEV710 正常供应

滚动图片以放大

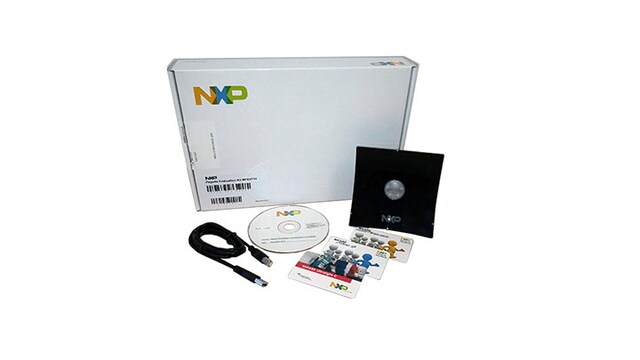

The Pegoda MFRD710 reader is a reference design and evaluation reader for secure applications based on MIFARE® and NTAG® products. The MFEV710 evaluation kit is built around proven, well-established MIFARE products, and a powerful Arm® Cortex®-M3 processor.

产品详情

特征

微控制器

  • 具有集成闪存的Arm Cortex-M3微控制器

数据连接

  • 与PC连接的USB主机接口和基于Windows的用户界面
  • Optional support for RS-232, RS485, JTAG, Ethernet

支持

  • Full support for entire MIFARE product-based card portfolio and MIFARE discover
  • 提供标准或x模式的SAM支持
  • Multiprotocol ISO/IEC 14443 and MIFARE operation
  • 在广泛部署的硬件解决方案中，提供基于PC/SC的架构
  • 固件源代码和二进制文件

购买选项

MFEV710-Image

点击展开

  • MFEV710
    正常供应

  • PEGODA Contactless Smart Card Reader based on MFRC523.

  • $166.80 USD
  • 数量为 1
    • 供货情况: 现货
    • 库存: 50
    • 配送: 正常情况下 1-2个工作日内发货
加入购物车
从分销商处购买
CLRD710-Image

点击展开

  • CLRD710
    使用寿命终止

  • Description not available.
