QN908x：超低功耗BLE片上系统解决方案

QN9080 正常供应

滚动图片以放大

QN908x是一款超低功耗、高性能、高集成度的BLE解决方案，适用于体育健身、人机接口设备、和支持APP的智能配件等Bluetooth® Smart应用。该产品专为可穿戴电子产品而设计，可使用小容量电池来运行。

QN908x在单个芯片上集成了BLE无线电、控制器、协议栈和配置文件软件，提供了一款灵活易用的BLE SoC解决方案。它还包括一个高性能MCU (32位Arm® Cortex®-M4F)，片上存储器和外设，支持用户开发真正的单芯片无线解决方案。

其他系统特性包括完整集成的DC-DC和LDO、低功耗睡眠定时器、电池监测器、16位高分辨率通用ADC和通用IO，以便进一步降低整体的系统成本和尺寸。QN908x的工作电源范围为1.8 V至3.6 V，在所有模式下都具有极低的功耗。它可以在电池供电系统中实现较长的寿命，同时保持出色的射频性能。

产品详情

框图

QN908x Block Diagram

QN908x Block Diagram
获取框图PDF

特征

系统

  • 集成的32位Arm Cortex M4F MCU，运行频率高达32 MHz
  • Arm Cortex-M4F内置NVIC
  • 串行线调试(SWD)
  • 系统节拍定时器
  • 融合传感协处理器(FSP)
  • 完整的BLE协议栈和应用配置文件
  • 支持BLE v4.2所有特性
  • 兼容Bluetooth 5的BLE 2M PHY
  • Wi-Fi/Bluetooth共存接口
  • 支持并行主从模式，提供多达16个同时连接
  • 闪存中，提供48位唯一BD地址

存储器

  • 512 kB嵌入式闪存
  • 128 kB RAM
  • 用户可控的代码保护

射频

  • -95 dBm RX灵敏度(LDO模式)
  • -93 dBm RX灵敏度(DC-DC模式)
  • 发射输出功率：-20 dBm至2 dBm，步长为2 dB
  • -30 dBm发射输出电源模式
  • 集成的Tx/Rx开关和换衡器，带射频单端口
  • 支持外部PA，从而提升发射功率
  • 快速、可靠的RSSI和信道质量指示，步长为1 dB
  • 符合全球各地的射频法规

功耗

  • 1.8 V至3.6 V单电源
  • 集成DC-DC降压转换器和LDO
  • 1 μA深度睡眠模式
  • 2 µA睡眠模式(32-kHz OSC/RTC开)
  • 3 V电源电压时，提供3.5 mA RX DC-DC电流
  • 3 V电源电压DC-DC，0dBm发射功率时，发射电流为3.5 mA
  • 上电复位(POR)
  • 掉电检测(BOD)

时钟

  • 16/32 MHz晶体振荡器
  • 片上32 MHz RC振荡器
  • 低功耗32.768 kHz晶体振荡器
  • 低功耗片上32 kHz RC振荡器

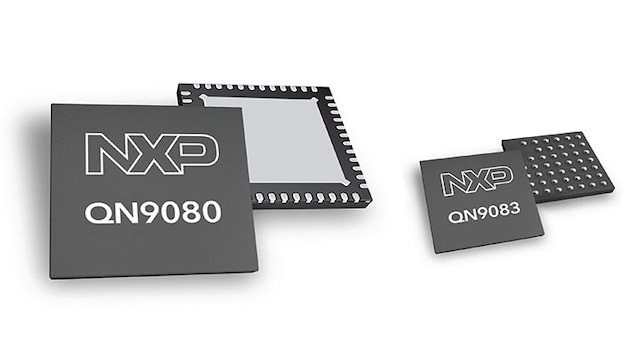

封装

  • 6 x 6 mm HVQFN48
  • 3.2 x 3.2 mm WLCSP

工作温度

  • -40°C至+85°C

模拟外设

  • 8通道16位通用ADC
  • 2个通用超低功耗模拟比较器(ACMP)
  • 通用DAC
  • 最多8个电容式触摸按钮
  • 电池监测器
  • 温度传感器

数字外设

  • 多达35个通用IO引脚
  • 可用作中断/唤醒源的通用IO引脚
  • 高I/O驱动功能
  • 2个正交解码器
  • 4个通用32位定时器
  • 32 kHz睡眠定时器(32位定时器)
  • 看门狗定时器(WDT)
  • 实时时钟(RTC)
  • ScTimer/PWM
  • 2个USART接口
  • 2个SPI接口(主/从)
  • 2个I2C主/从接口
    • 四路SPI可连接到SPI闪存
  • USB 2.0全速设备
  • AES-128安全协处理器
  • 真随机数生成器(TRNG)

更多
