i.MX351处理器_音频连接 | NXP 半导体

针对汽车市场的i.MX351基于ARM11™内核，运行频率为532 MHz，采用了90纳米技术。i.MX351的性能通过一个多级缓存系统得到了提升，包含的功能有：用于多通道(5.1)音频的增强型串行音频接口(ESAI)，用于压缩数字音频连接的SPDIF I/O和一个先进的采样率转换器(ASRC)，支持具有不同采样率的混合数字内容。对于汽车应用，i.MX351连接选项包括2-CAN模块、连接到MOST “INIC”收发器的媒体本地总线(MLB)、以太网，并能够通过USB或SDIO连接到外部无线模块。

i.MX351由与之配套的恩智浦电源管理IC (PMIC)，MC13892和MMPF0100提供支持。

查看产品图片

产品详情

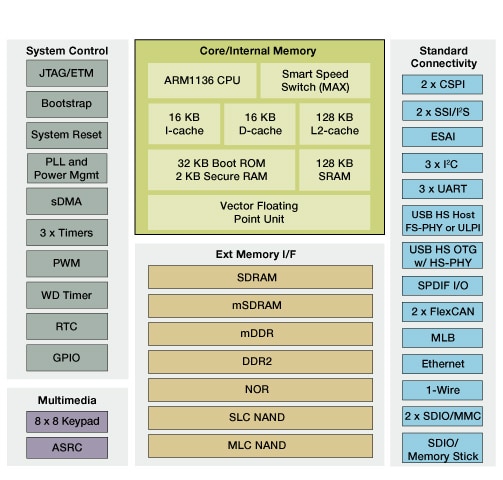

框图

Freescale i.MX351 Applications Processor Block Diagram

Freescale i.MX351 Applications Processor Block Diagram

获取框图PDF

特征

ARM1136JF-S™
532 MHz最大速率
128 KB集成SRAM
16 KB I/D L1缓存，128 KB L2缓存
MLB
ESAI
10/100以太网
MAC 2 x FlexCan模块
HS OTG + PHY，HS Host + PHY
3 x UART，2 x CSPI，3 I2C，2 SSI/I2S
矢量浮点单元
外部存储器接口：mSDRAM/SDRAM、mDDR/DDR2、NOR和SLC/MLC NAND
3.3V通用I/O
本产品包含在恩智浦产品长期供货计划中，自推出后至少保证15年供货

部件编号包含： MCIMX351AJQ5C, MCIMX351AVM4B.
