QorIQ® P1020和P1011单核和双核通信处理器

P1020
使用寿命终止

滚动图片以放大

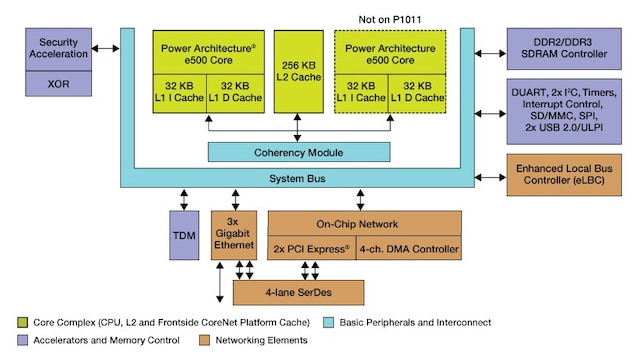

QorIQ® P1平台系列包含P1020和P1011通信处理器，具有丰富的集成功能和高性能，适用于网络、电信、航空航天、国防和工业控制市场中的各种应用。该系列提供单核和双核两种解决方案，运行频率在533 MHz至800 MHz之间，并配有先进的安全性和丰富的接口，全部采用低功耗45纳米工艺。

P1平台系列特别适用于多业务网关、以太网交换机控制器、无线LAN接入点和具有严格的温度限制的高性能通用控制处理器应用。

QorIQ P1系列包括单核和双核产品，与QorIQ P2平台产品引脚兼容，提供五款芯片的高性价比的解决方案。单核处理器的运行频率为533 MHz(P1011)，双核处理器每个内核的运行频率为1.2 GHz(P2020)，两种QorIQ平台可实现4.5倍超强频率范围。

产品详情

选择区域:

对比表

P1011 P1012 P1020 P1021
内核 1 1 2 2
内核频率 533 - 800 MHz 533 - 800 MHz 533 - 800 MHz 533 - 800 MHz
L2缓存 256KB 256KB 256KB 256KB
DDR 32位DDR2/DDR3 32位DDR2/DDR3 32位DDR2/DDR3 32位DDR2/DDR3
GbE 3个10/100/1000 3个10/100/1000 3个10/100/1000 3个10/100/1000
PCIe Gen 1.0 2个控制器，带4个SERDES 2个控制器，带4个SERDES 2个控制器，带4个SERDES 2个控制器，带4个SERDES
USB 2.0 2 1 2 2
存储卡 SD/MMC SD/MMC SD/MMC SD/MMC
其他接口 SPI, 2个I2C, DUART SPI, 2个I2C, DUART SPI, 2个I2C, DUART SPI, 2个I2C, DUART
TDM或QUICC Engine TDM QUICC Engine TDM QUICC Engine
加速器 SEC3.3 SEC3.3 SEC3.3 SEC3.3

购买/参数

‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
