MPC5775B和MPC5775E微控制器，适用于电池管理系统(BMS)和逆变器应用

MPC5775B-E
正常供应

滚动图片以放大

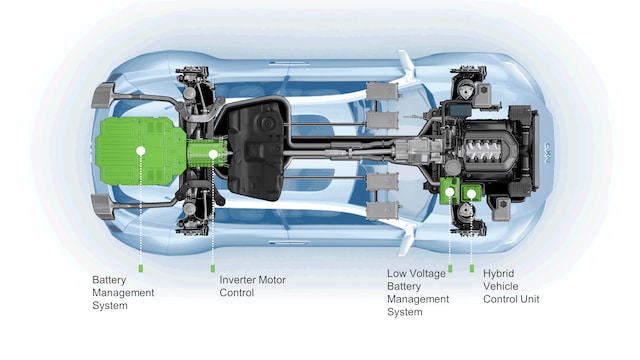

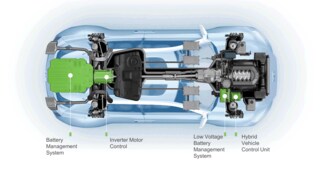

MPC5775B和MPC5775E微控制器适用于需要先进性能、安全性和ASIL-D支持的汽车和工业电池管理和逆变器应用。

这些MCU与MPC5777C器件兼容，为客户提供面向目标应用的优化功能。MPC5775B和MPC5775E为使用MPC5xx、MPC55xx、MPC5644A和MPC5674F以及eTPU定时器和类似引脚数选项的客户提供理想的迁移路径。

框图

选择框图:

MPC5775E Block Diagram

MPC5775E Block Diagram

MPC5775B Block Diagram

MPC5775B Block Diagram
获取框图PDF

特征

  • 2个Power Architecture z7内核，MPC5775E上频率为264 MHz和MPC5775B MCU上频率为220 MHz
  • 1个z7内核与其中一个主内核同步，MPC5775E上频率为264 MHz，MPC5775B MCU上频率为220 MHz
  • 4 MB闪存，512 KB SRAM
  • CSE硬件安全模块，支持SHE协议规范和AES-128加密
  • 10/100Mbps以太网模块
  • 2个CAN-FD 模块和4个FlexCAN模块
  • MPC5775E MCU上有3个eTPU2定时器模块
  • MPC5775E MCU上有4个Σ-Δ模块
  • 高达70通道eQADC和32通道eMIOS

购买/参数

2 结果

包含 0 不推荐用于新设计

部件

展开描述

订购

计算机辅助设计模型

状态

封装类型

封装端接数

Flash (kB)

RAM (kB)

内核：内核数量(规范值)

运行频率[最高]（MHz）

SafeAssure 功能安全

DMA通道总数

CAN

I2C

SPI

Ambient Operating Temperature (Min to Max) (℃)

电源电压[最大]（V）

电源电压[最小]（V）

GPIO

SPC5775BDK3MME2
数据手册

正常供应

BGA416

416

4000

512

3

220

ISO 26262

128

6

0

5

-40 to 125

5.5

4.5

293

SPC5775EDK3MME3
数据手册

正常供应

BGA416

416

4000

512

3

264

ISO 26262

128

6

0

5

-40 to 125

5.5

4.5

293
