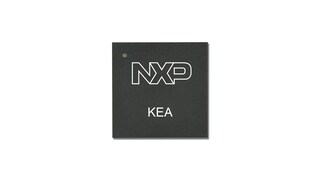

超高可靠性KEA汽车微控制器(MCU)，基于Arm® Cortex®-M0+内核

KEA
正常供应

滚动图片以放大

Kinetis® EA系列32位Arm® Cortex®MCU广泛适用于质量要求和长期供货保证要求都很高的汽车和工业应用。Kinetis EA系列是广泛的Arm生态合作体系的入门级产品，并具有以下功能：

  • 低功耗Arm Cortex-M0+内核和8–128 KB的嵌入式闪存
  • 具备出色的EMC/ESD兼容性，能够适应高温环境，并且辐射排放较低
  • 提供可扩展、稳定可靠的高性能解决方案，适合成本敏感型汽车应用
  • 拥有丰富的参考设计、工具和应用笔记，能够帮助您加快设计开发速度，加快产品上市速度。

框图

KEA/C9KEA Main Features

3 Phases Sensorless BLDC Motor Control Block Diagram
获取框图PDF

特征

性能

  • 高达48 MHz Arm Cortex M0+内核
  • 单周期32位 x 32位乘法器

存储器

  • 内置高达128K闪存
  • 高达256 B EEPROM
  • 高达16K RAM

时钟

  • 外部振荡器(OSC)
  • 内部时钟源(ICS)

系统功能

  • 电源管理模块(PMC)具有三种模式：运行、等待、停止
  • 带复位或中断功能的低电压检测(LVD)，可选择的跳变点
  • 带独立时钟源的看门狗(WDOG)
  • 可编程循环冗余校验模块(CRC)
  • 串行电路调试接口(SWD)
  • SRAM位带别名区(BITBAND)
  • 位操作引擎(BME)

通信接口

  • 多达2个SPI模块
  • 多达3个UART模块
  • 多达2个IIC模块
  • 一个CAN模块

多个定时器

  • 一个6通道FlexTimer/PWM (FTM)
  • 两个双通道FlexTimer/PWM (FTM)
  • 一个双通道周期中断定时器(PIT)
  • 一个脉宽定时器(PWT)
  • 一个实时时钟(RTC)

模拟模块

  • 一个16通道12位SAR ADC，带有内部带隙参考通道，在停止模式下运行，可选择的硬件触发器(ADC)
  • 两个模拟比较器，内含一个6位DAC和可编程参考输入(ACMP)

更多

对比表

KEA系列产品对比

器件 闪存 RAM EEPROM 频率 MSCAN SCI SPI ADC Flex-Timer IIC 通用IO 封装
KEAZN8 8K 1K 仿真 48MHz 0 1 1 12ch 12bit 6ch+2ch 16bit 1 多达22个 16 TSSOP/24 QFN
KEAZN16 16K 2K 256B 40MHz 0 3 2 16c12b 6ch+2ch+2ch 16bit 2 多达57个 32/64 LQFP
KEAZN32 32K 4K 256B 40MHz 0 3 2 16c12b 6ch+2ch+2ch 16bit 2 多达57个 32/64 LQFP
KEAZN64 64K 4K 256B 40MHz 0 3 2 16c12b 6ch+2ch+2ch 16bit 2 多达57个 32/64 LQFP
KEAZ64 64K 8K 仿真 48MHz 1 3 2 16c12b 6ch+2ch+2ch 16bit 2 多达71个 64/80 LQFP
KEAZ128 128K 16K 仿真 48MHz 1 3 2 16c12b 6ch+2ch+2ch 16bit 2 多达71个 64/80 LQFP
